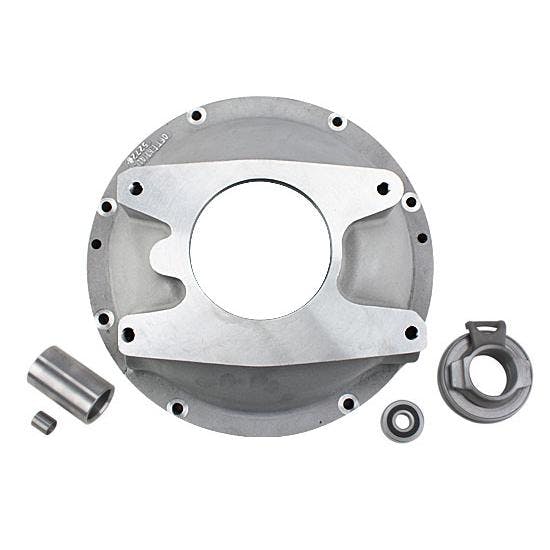

Offenhauser Standard Chevy Trans to Flathead Adapter Kit

Price:$344.99
Offenhauser Std. Chevy Trans to Flathead Adapter Kit
Price:
$344.99
KT
In Stock
Item #:
56052720
Open Kit Components
- Selection of individual components may be necessary for kit purchase.
Kit Components
Offenhauser Chevy Transmission to Flathead Adapter
Item #:
5605272
1
  Show Specifications
  • 5605272
    Overall Width
    4.765"
    Overall Thickness
    0.500" (1/2")
    Inside Diameter
    4.674"
    Outside Diameter
    13.150"
    Shaft Length
    10.048"
    Shaft Diameter
    0.875" (7/8")
    Material Type
    Aluminum
    Sold in Quantity
    Each
    Notes
    Use your Ford clutch release shaft, fork and throwout bearing. Throwout bearing must be used with a Long-style pressure plate. Includes pilot bushing adapter.
Early Ford Release Bearing
Item #:
91025620
1
  Show Specifications
  • 91025620
    Inside Diameter
    1.750" (1 3/4")
    Outside Diameter
    3.520"
    Sold in Quantity
    Each
    Notes
    Bearing and collar assembly is typical of those used on '35-'48 Ford passenger cars (except with V8-60).
Spacer Tube for Throw Out Bearing
Item #:
91629505
1
  Show Specifications
  • 91629505
    Overall Length
    2.750" (2 3/4")
    Outside Diameter
    1.742"
    Inside Diameter
    1.371"
    Material Type
    Steel
    Sold in Quantity
    Each
Pilot Bearing - GM Transmission to Flathead
Item #:
91629520
1
  Show Specifications
  • 91629520
    Overall Thickness
    0.432"
    Inside Diameter
    0.590"
    Outside Diameter
    1.575"
    Material Type
    Steel
    Finish
    Natural
    Sold in Quantity
    Each
    Notes
    Roller bearing fits into the back of a flathead Ford flywheel and will pilot the end of a GM T-5, Muncie, T-10, or Saginaw manual transmission.

(0 Rating)
Click image to enlarge Click image to enlarge
  • Offenhauser Standard Chevy Trans to Flathead Adapter Kit
  • Offenhauser Standard Chevy Trans to Flathead Adapter Kit
No video at this time.


Adapt standard Chevy 3 or 4 speed manual transmission to ’32-’48 Ford or ’39-’50 Mercury engines. Allows use of your early Ford clutch release shaft and fork.

Kit includes aluminum adapter, original Flathead-style release bearing, adapter sleeve and and ball-bearing type pilot bearing.
