Offenhauser Flathead Cylinder Head Stud Kit

Specs
Material Type:
Steel
Sold in Quantity:
Kit
Notes

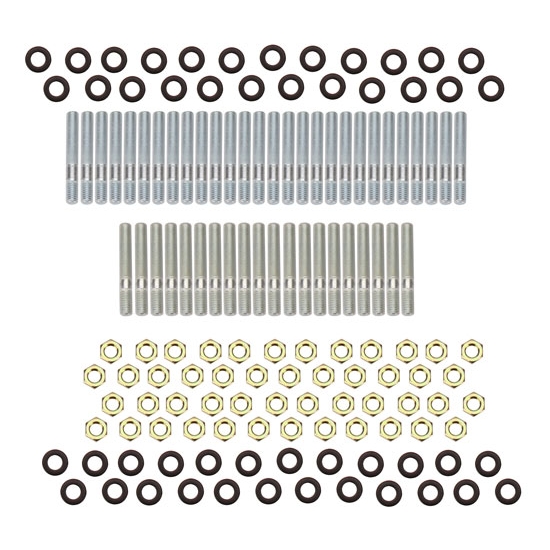

Contains: 3.25" long studs (28), 3" long studs (20), washers (48), and nuts (48).
Offenhauser Flathead Cylinder Head Stud Kit

Click image to enlarge

Details

Reviews (11)

Q & A (8)

What's in the Box

Info

Highly recommended for all 1939-53 Flathead Ford/Mercury with aluminum heads. Flathead decks are thin and their threads are easily stripped. The outer end of these Grade 8 studs have fine threads and with the hardened washers (included) which prevent galling and ensure accurate torque readings.

Full set of head studs, nuts and washers for one engine. Specify year of engine: 1939-48 or 1949-53.

560-13953 Instructions (PDF)

Item Details

1939-1948 or 1949-1953

Notes

  • 1939-1948 engines use 24 studs per head (48 per engine) that are 3.25" long
  • 1949-1953 engines use 10 short studs (3") and 14 long studs (3.25") per head (48 total studs per engine)
  • Use sealer on block threads – Moroso part number 54535500
  • Use anti-seize on nuts and upper studs – Speedway part number 91016009

Customer Reviews

Rated 4.2 out of 5 by 11 reviewers.
RATING BREAKDOWN
11 reviews
5 Stars
8
4 Stars
0
3 Stars
1
2 Stars
1
1 Star
1
RECOMMEND THIS PRODUCT:

Flathead Joe
Phoenix, AZ

Not sure as advertised

April 09, 2016
Grade 8 bolt and stud materials I've used all look the same. I do not know what the grade is on the studs. So far the studs are working however, the washer are horrible. Out of the 48, 24 have split and I replaced with grade 8. I have not re-torqued the heads according to the installation instructions and I am fearful of what will happen with the washers.
Pros:
  • Grade 8 Bolts
Cons:
  • Unknown Stud Material
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Merchant Response:

Flathead Joe- Thanks for taking the time to write us. We're really sorry about the trouble you had with the washers in this kit. Please contact our Customer Service Team at 800.979.0122 for further assistance.
Rick
Verified Purchaser
Bear, Delaware

Kit is great has everything you need to attach your heads.

November 19, 2015
Speedway always has good prices and gets the products to you quickly.
Pros:
  • All In One Kit
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Bill
Verified Purchaser
Verified Reviewer
Canada

need some work

October 22, 2015
strange looking for grade 8 studs. Used on Offy 400 heads. The long studs need to be a quarter of and inch longer on the fine thread end as they are not long enough to get a full nut, Also the fit of the nut and stud could be a little tighter. The short studs could be a little shorter on the fine thread end.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Merchant Response:

Bill - Thanks for your feedback! We appreciate hearing from you. Your review has been passed along to our QC team to record and inspect the issue with this product. We are really sorry for your frustration and are always happy to help.
Horsepowerengines
Verified Purchaser
Copenhagen Denmark

Speedway 4Ever

September 23, 2015
Always super deal
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Mick
Verified Purchaser
Verified Reviewer
Shawnee, OK

Big Bang for the Buck

September 11, 2015
Better price than competitors
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

V8-1
Verified Purchaser
Verified Reviewer
Lexington, KY

Stud thread diameter is small

June 03, 2015
Complete set at a good price. Great for aluminum heads at 40 lbs torque Stud thread diameter was small (0.430 vs 0.437 best at 0.434 or 5). Had to helicoil half the holes to get tight fit in the block because heads required 65 lbs torque.
Pros:
  • Nice Finish
  • Wshers And Nuts Included
  • Complete Set
Cons:
  • Fits Loose In Block
  • Must Use Helicoils - Fit
  • Don't Torque Over 55 Lbs
  • Stud Thread Diameter 430
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

LJPTVCRUZER
Verified Purchaser
Porterville. CA

Just what I needed, good quality.

May 22, 2012
Good quality parts to minimize any problem with head gaskets sealing properly.
Pros:
  • Durable
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Jim
Verified Purchaser
Butte, Mt

What no sticker?

April 04, 2012
followed the help sheet included. Have yet to start the motor but the bolts worked fine so far.
Pros:
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

bigone
Verified Purchaser
northren minnesota

excellant stud kit

November 18, 2011
I used this product on my restoration of a 1940 ford flathead great quality as are most parts from speedway
Pros:
  • Durable
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

NA
Verified Purchaser
Epworth Ga.

;Offenhauser Flathead Cylinder Head Stud

September 10, 2011
top quaily high performance
Pros:
  • Increases Power
  • Durable
  • Easy To Install
  • The best
  • Improves Engine Efficiency
  • Lightweight
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 2

Product Q&A

8 questions : 11 answers

2 answers

What is the proper torque for new head studs on a 1940 flathead engine? head studs to block on a flathead

fordflatheadeddie1920
colo
September 14, 2013

What is the proper torque for new head studs on a 1940 flathead engine? head studs to block on a flathead

Answers

July 02, 2015
Eric
Expert
Speedway offers torque instructions on our website under the stud kit part number. Instructions are also included with stud kits. Speeway recommends a mx torque of 45 foot pounds.
September 16, 2013
Jason
Speedway offers torque instructions on our website under the stud kit part number. Instructions are also included with stud kits. Speeway recommends a mx torque of 45 foot pounds.
2 answers

what is the wrench size of the nuts? 49-53 model years

miller
November 18, 2012

what is the wrench size of the nuts? 49-53 model years

Answers

April 20, 2014
Bigi
11/16"
November 19, 2012
Jason
This kit will use a 11/16" wrench size
1 answers

I Will be using a Offenhauser Alternator bracket #1093 and Offenhauser aluminum heads. Will this require the use of longer studs (3)or are the studs included in kit long enough to secure bracket to head and head to block?

Chaz
Clearwater, FL
November 28, 2011

I Will be using a Offenhauser Alternator bracket #1093 and Offenhauser aluminum heads. Will this require the use of longer studs (3)or are the studs included in kit long enough to secure bracket to head and head to block?

Answers

November 30, 2011
John
Part number 56013953 In most cases the studs in this kit will require shortening to match the heads being used. They are normally long enough to be used with the offset alternator bracket number 5601093.
2 answers

I just recieved these studs and started putting them in my block and relized there are two different lengths and i am going to purchase the offy heads for my 1952 and would like to know if these need to be cut to length or can you let me know where they g

October 09, 2011

I just recieved these studs and started putting them in my block and relized there are two different lengths and i am going to purchase the offy heads for my 1952 and would like to know if these need to be cut to length or can you let me know where they g

Answers

April 20, 2014
Bigi
The 10 bottom studs on each side are shorter. Watch them wobble as you thread them in and see that you will probably need to install them with the head already on as they are probably not straight!!! Good luck!!!
October 11, 2011
John
Part # 56013953 The studs in this kit will need to be cut to the length dictated by the heads you are using. In some cases with cast iron heads there are up to 4 different stud lengths necessary. Between the cast heads and the aluminum heads from different manufacturers the stud length required changes. We caution the installer to torque to the manufacturers of the heads used to the proper torque values and sequence.
1 answers

What is the size and length of the threads at both ends. (eg 1/2-20 1.25" length and 1/2-13 3/4" length ) ? I need studs for a 1929 REO Flying Cloud. thank you

Rocketman
Waldorf, MD
August 26, 2015

What is the size and length of the threads at both ends. (eg 1/2-20 1.25" length and 1/2-13 3/4" length ) ? I need studs for a 1929 REO Flying Cloud. thank you

Answers

August 27, 2015
Eric
Expert
The '39 to '48 stud kit has studs 3 1/4" long with 1/2" of 7/16"-14 threads and 1 13/16" of 7/16"-20 threads. The '49 to '53 kit has 28 studs 3 1/4" long and 20 studs 3" long which have the same thread sizes and lengths.
1 answers

The stud kit installed as stated in the instructions. Question is where do you get the (3) longer studs to mount the oil filter tank on the left side head. This is not something of the shelf?

Rich
Imperial, Mo
February 19, 2016

The stud kit installed as stated in the instructions. Question is where do you get the (3) longer studs to mount the oil filter tank on the left side head. This is not something of the shelf?

Answers

February 22, 2016
John
Expert
We apologize but do not offer the oil filter tank or the studs that normally come with the tank kit. We do however offer 91667912 stud kit for the offset generator bracket that would cover your needs. Verify length needed to use with your oil tank is 4 1/2" prior to ordering.
1 answers

I installed this kit but it seems as if the studs are not straight enough to the point the head gasket and head wont slip over top any suggestions????

Brandon
March 05, 2016

I installed this kit but it seems as if the studs are not straight enough to the point the head gasket and head wont slip over top any suggestions????

Answers

March 07, 2016
John
Expert
With the studs not lining up with the holes in the head it is doubtful the studs are the culprit. It is very possible that the bolt holes are not perfectly square in the block. Normally if you have a few off slightly from alignment with the head a plastic headed hammer or dead blow hammer can be used to tweak them just enough so they will work correctly.
1 answers

I noticed there was an unclear answer as to whether this kit or the speedway version will work on the edelbrock 1116 heads. Can i get a clear answer? Thanks

Not sure
Bel air, md
October 16, 2016

I noticed there was an unclear answer as to whether this kit or the speedway version will work on the edelbrock 1116 heads. Can i get a clear answer? Thanks

Answers

October 17, 2016
Zach
Expert
The correct stud length for use with the Edelbrock 1115 49-53 heads would be 20 studs @ 2-9/16" and 28 studs @ 3-1/8". This Offy stud kit uses studs that are 3" and 3-1/4" long. This kit would work, but the studs will be longer than needed which would not allow for acorn nut covers to be used. I would suggest ARP stud kit p/n 101-1544102 and that will fit perfectly.
Page 1 of 1
