Offenhauser 1952-53 Ford Flathead V8 Fuel Pump

Specs
Sold in Quantity:
Each
Outlet Fitting:
1/8" NPT
Gasket(s) Included:
Yes
Hardware Included:
Yes
MFG. Part #:
9785
Fuel Pump Type:
Mechanical

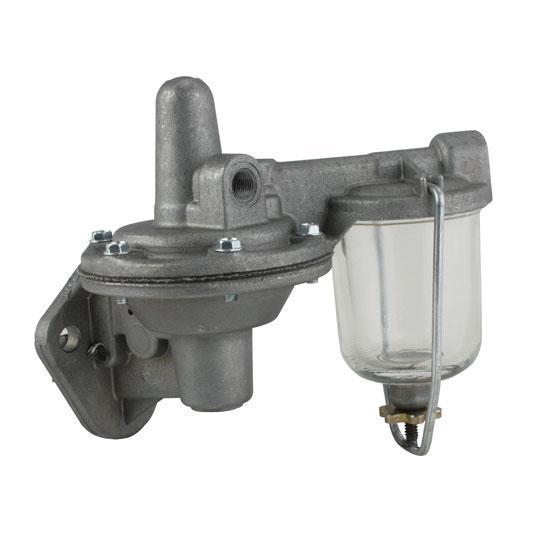

Offenhauser 1952-53 Ford Flathead V8 Fuel PumpOffenhauser 1952-53 Ford Flathead V8 Fuel Pump
Offenhauser 1952-53 Ford Flathead V8 Fuel Pump

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These 100% new, high performance mechanical fuel pumps were designed & built to feed multi-carb setups. Works well with any Offenhauser flathead Ford intake manifold.

  • Heavy duty diaphragm
  • Rugged alloy casting for durability
  • Heat-treated rocker arm
  • Works with original Ford-style lines (compression nut & sleeve)
  • Includes gasket

Item Details

1/8" NPT Inlet/Outlet
