Offenhauser 39-53 Flathead Ford 4-Ring Pistons, 4.00 Stroke/3.248 Bore

SAME DAY SHIPPING! Order within the next 8 hours 23 minutes and receive same day shipping

Specs
Sold in Quantity:
Set
Piston Diameter:
3.248
Stroke:
4.00
Piston Style:
Flat Top
Piston Material:
Cast Aluminum
Garage Sale:
No

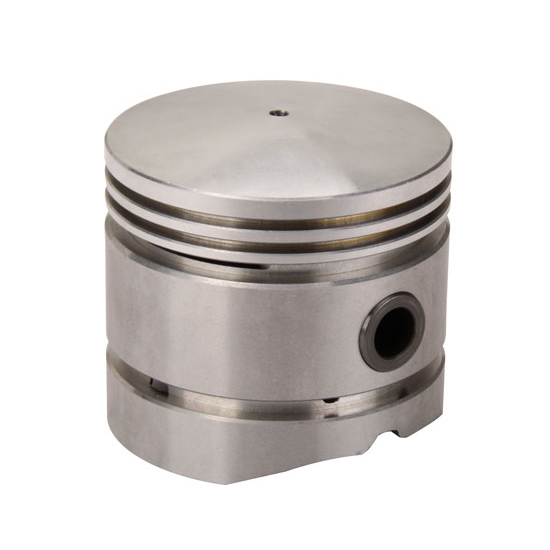

Offenhauser 39-53 Flathead Ford 4-Ring Pistons, 4.00 Stroke/3.248 Bore

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a set.

Details

Reviews

Q & A

What's in the Box

Original Flathead pistons used four rings, were somewhat round, had questionable wrist pins and locks and were made of cast iron. These pressure-cast aluminum pistons share the four-ring design, but are cam ground and use modern steel wrist pins and real snap rings. They’re a great upgrade when rebuilding your 1939-1953 flathead Ford or Mercury V8 engine.

  • Original 4-ring design
  • Pressure cast aluminum construction provides great strength and durability
  • Precision cam ground
  • Modern steel wrist pins
  • Snap ring style retainer clips

The original bore size was 3.188", which makes these .060" oversize. Sold in sets of eight.

Item Details

3.248" bore, 4.00" stroke

Customer Reviews

This product has no reviews.

Product Q&A

2 questions : 2 answers

What is the diameter of the piston axle?

1 answers
henri
france
June 17, 2013

What is the diameter of the piston axle?

Answers

June 17, 2013
Jason
The wrist pin diameter is .748"

My question is if the pistons for 4" stroke fit a Mercury 255, 1951

1 answers
Leif
Vendelso, Sweden
August 11, 2011

My question is if the pistons for 4" stroke fit a Mercury 255, 1951

Answers

August 12, 2011
John
These pistons are specific to the Flathead Ford V8 and will not work on the Mercury motors. Pin location in the piston is different between the Ford and Mercury and will create dramatic problems. You may want to check with Egge Machine for availability of pistons for your Mercury motor.
