Offenhauser 1094 37-48 Flathead Head Mount Generator Bracket-Pass Side

SAME DAY SHIPPING! Order within the next 6 hours 29 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Overall Length:
7.45
Sold in Quantity:
Each
Finish:
Natural
Hole Diameter:
.47
Thread Pitch:
9/16"-12
Hardware Included:
No
Base Length:
3.00
Base Width:
3.00
Notes
Right hand side mount. Designed for stock generator, but will accept GM alternator when purchasing additional brackets.
Offenhauser 1094 37-48 Flathead Head Mount Generator Bracket-Pass SideOffenhauser 1094 37-48 Flathead Head Mount Generator Bracket-Pass SideOffenhauser 1094 37-48 Flathead Head Mount Generator Bracket-Pass SideOffenhauser 1094 37-48 Flathead Head Mount Generator Bracket-Pass Side

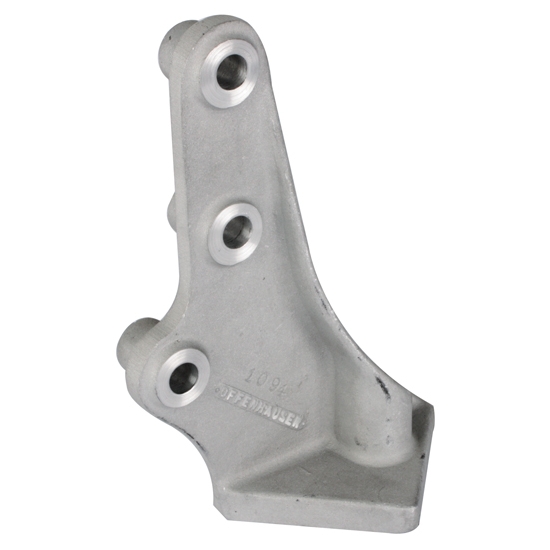

Offenhauser 1094 37-48 Flathead Head Mount Generator Bracket-Pass Side

Click image to enlarge

Speeday Motors Logo
X
Offenhauser 1094 37-48 Flathead Head Mount Generator Bracket-Pass Side

Details

Reviews

Q & A

What's in the Box

These cast aluminum brackets for 1937-1948 Flathead Ford V-8 relocate your generator above the cylinder head to make room for multi-carb manifolds, air cleaners, etc. Must be used with stud kit 916-67912.



  • Bolt Boss Thickness:  1-1/4"
  • Inside Width:  2-1/2"
Note: This bracket is designed to mount an original stock 6V generator, but it could also be used with a bracket such as 916-67908 or 916-67907 to mount a GM 1-wire alternator.

Cylinder Head Mount Chart (Link)
