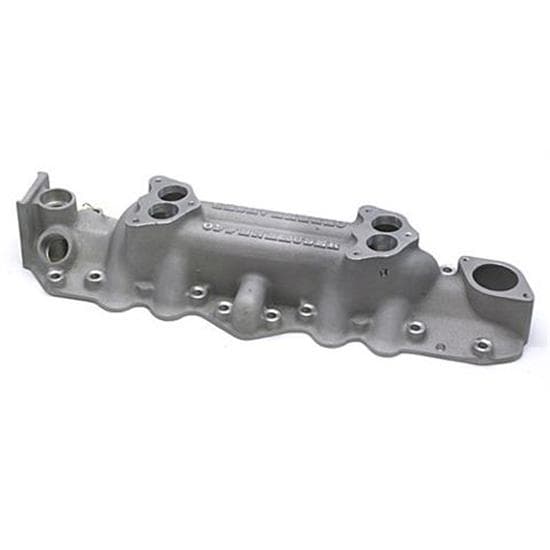

Offenhauser 1076 1949-1953 Ford Flathead Super Dual Intake Manifold

SAME DAY SHIPPING!

Specs
Finish:
Natural
MFG. Part #:
1076
Intake Manifold Type:
Dual Plane
Carburetor Quantity:
Two
Carburetor Flange Type:
2-Barrel 3-Bolt

Share by Email

From
To

Click image to enlarge

X

Details

Reviews

Q & A

What's in the Box

The Offy super dual intake is a better performer than regular dual. 9-1/8" carb centers.  The front of the 560-1076 intake manifold has the boss or flange for the generator or fan assembly to mount to. It also has the fill and draft holes behind this flange.

  • For 1949-53 Ford Flatheads
  • 9-1/8" carb centers
  • Has boss or flange for generator or fan assembly to mount to
  • Has the fill and draft holes behind flange
  • Generator adapter bracket NOT included
