Offenhauser 1068-400 1939-48 Ford Flathead Finned Aluminum Heads

Specs
Material Type:
Aluminum
Sold in Quantity:
Pair
Finish:
Natural
Port Style:
Oval Port
MFG. Part #:
1068-400
Cylinder Head Style:
Bare
Notes
Temp sender provision is 3/8" NPT.

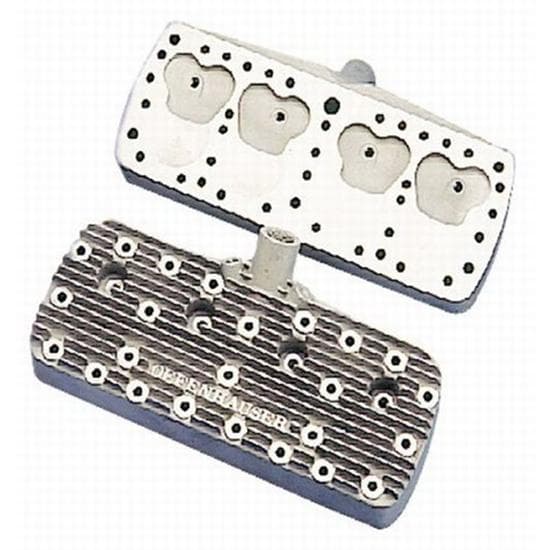

Offenhauser 1068-400 1939-48 Ford Flathead Finned Aluminum Heads

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

These Offy flathead Ford heads are finned for high heat dissipation, bigger water capacity for "built" engines and everybody knows, nothing beats a full-dress flathead for beauty! Heads have a .400" valve relief.

3-5/16" bore, 4" stroke = 9:1 compression ratio
3-5/16" bore, 3 3/4" stroke = 8.6:1 compression ratio.

Customer Reviews

Rated 4.5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
1
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Deano
Australia
Product Rating

Great Product

September 03, 2013
Looks and performs just as recommended by the staff at Speedway, also suggest all the gear to hook my flatty up to a sagnaw 4 speed - all fits and works perfectly.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Newell W King
Verified Purchaser
Moncks Corner S.C.
Product Rating

period correct parts

September 18, 2012
looks nice but not polished to show quality with some elbow grease and time can be brought to look nice
Pros:
  • Increases Power
  • Lightweight
  • Easy To Install
  • Improves Engine Efficiency
  • Durable
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

What is the torque and pattern specification for these heads?

1 answers
DrDestroyer
Orange CA
May 18, 2011

What is the torque and pattern specification for these heads?

Answers

May 23, 2011
John
These aluminum heads carry slightly different torque values as compared to the cast. We have a chart from the Edelbrock heads that shows the common flathead torque values for studs and also bolts and the torque sequence. Care needs to be taken to do this in a 3 step process. For Offenhauser values you may want to contact them on their tech line.

What is the spark plug torque setting for these Offy aluminum heads?

1 answers
Jack
Fremont, Nebraska
April 04, 2011

What is the spark plug torque setting for these Offy aluminum heads?

Answers

April 06, 2011
Tom
14MM threaded plug, 20-24 ft. lbs.

Could you tell me what the head thickness is, where the head bolt hole is at. Is there 1 size thickness or two.

1 answers
February 21, 2011

Could you tell me what the head thickness is, where the head bolt hole is at. Is there 1 size thickness or two.

Answers

February 25, 2011
Clark
The Offy heads for 49-53 Fords have (two) thicknesses at the bolt bosses. The thickness at the ‘lower’ bolts is app. 1-3/8”, the thickness at the ‘upper’ bolts is 2”. The heads for 38-48 have (one) thickness, app. 2” at each of the 24 bolt holes.
Page 1 of 1
