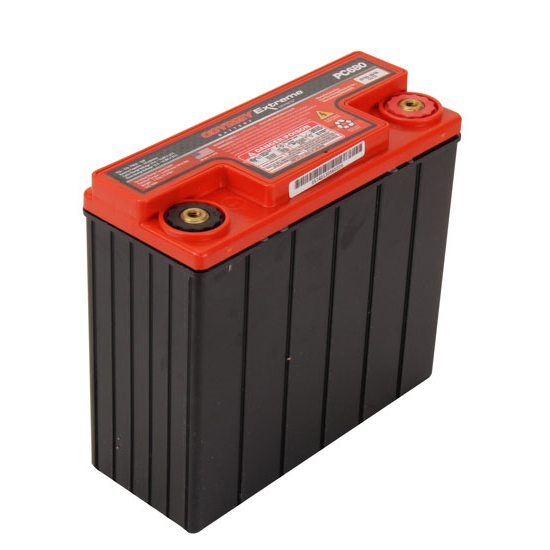

Odyssey Batteries PC680 12-Volt AGM Battery, 7.27 x 3.11 x 6.67 Inch

SAME DAY SHIPPING! Order within the next 8 hours 19 minutes and receive same day shipping

Specs
Overall Height:
6.625
Overall Width:
3.06
Overall Length:
7.00
Weight:
15.40
Sold in Quantity:
Each
Voltage:
12
MFG. Part #:
PC680
Cranking Amps @ 0 deg. F:
170
Battery Type:
AGM
Cranking Amps @ 32 deg. F:
370
Battery Reserve Capacity:
24 minutes
Battery Usage:
Deep Cycle
Battery Terminals:
Top
Garage Sale:
No
Odyssey Batteries PC680 12-Volt AGM Battery, 7.27 x 3.11 x 6.67 InchOdyssey Batteries PC680 12-Volt AGM Battery, 7.27 x 3.11 x 6.67 Inch
Odyssey Batteries PC680 12-Volt AGM Battery, 7.27 x 3.11 x 6.67 Inch

Click image to enlarge

Speeday Motors Logo
X
Odyssey Batteries PC680 12-Volt AGM Battery, 7.27 x 3.11 x 6.67 Inch

Please NOTE the following about this product:

  • Ground Shipping Only - Can't Ship Air.

Details

Reviews

Q & A

What's in the Box

Featuring rugged construction and packed tightly with pure lead plates, the non-spillable AGM design protects against the shock and vibration that can quickly destroy other batteries. Pure lead plates mean twice the overall power and three times the life with up to 400 cycles at 80% depth of discharge. 12V with M6 female terminals.

  • 12 Year design life and 6 to 10 year service life
  • 99.9% pure lead providing minimal plate corrosion
  • Explosion proof
  • Corrosion proof
  • 2 to 3 times the cranking power of equilivant size battery
  • Spill and leak proof
  • Superior vibration resistance
  • Fully Charged out of the box
  • When fully charged can be stored for up to 2 years at 77°F
  • May be installed on its sides at any angle without sacrificing performance attributes
  • Military grade version of the Hawker Genesis
  • 2 Year Full Powersports Warranty
  • Made in the USA

Cannot ship this via air shipping, ground service only!

Specs

  • Length 7 in.
  • Width 3 1/16 in.
  • Height 6 5/8 in.
  • Drycell Battery
  • Without Metal Jacket
  • 12 Volt
  • 16 Ah @ 10hr rate
  • 220 CCA
  • 680 Cranking Amps for 5 Seconds
  • 24 Minute Reserve Capacity
  • Cycle life @ 77°F 400 at 100% DOD
  • -40°F to 140°F Temperature Range

Item Details

Can't ship Air!
