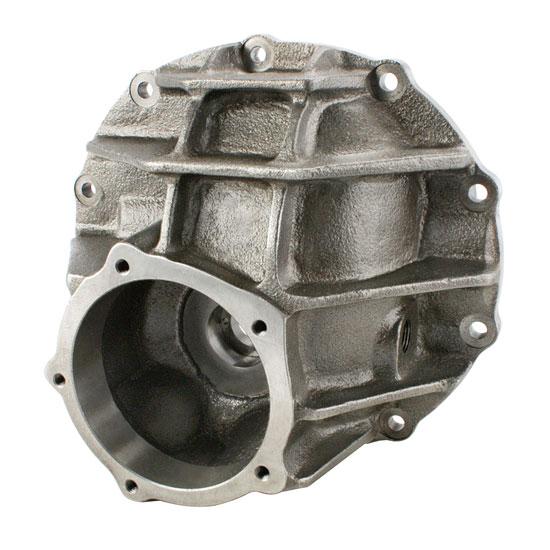

New 9 Inch Ford Iron Carrier Housing w/3.062 Inch Caps

Free Shipping Free Shipping
New 9 Inch Ford Iron Carrier Housing w/3.062 Inch Caps

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

If you have built anything that has serious horsepower you know the weak link can be the stock Ford 9" carrier. The pinion area tends to be weak and if you throw enough power at it, it will break. That won't happen with this brand new housing.

This new cast iron housing is built to take street/strip abuse without the fear of breaking. Case has forged caps and extra beef where it's needed. Most stock differentials use the 3.062" o.d. bearings # TLM603049 w/ 1.781" i/d. You should also add a new heavy duty cast iron pinion support while you're at it.

  • Forged Steel Caps
  • 1/2" Allen head grade 8 bolts
  • Heavy Duty Housing - 36 lbs.
  • Good for 1100 plus horsepower

Customer Reviews

This product has no reviews.

Product Q&A

3 questions : 3 answers

1 answers

Does this one take the same pinion dept shim and the 3.25 inch caps? Im haveing trouble finding my right shim, mine shim is bigger then the ones i keep getting, Can you help me on this???? thanks

Clay
September 17, 2012

Does this one take the same pinion dept shim and the 3.25 inch caps? Im haveing trouble finding my right shim, mine shim is bigger then the ones i keep getting, Can you help me on this???? thanks

Answers

September 17, 2012
Eric
Both the 3.062" and 3.250" cap versions use standard 9" ford pinion depth shims.
1 answers

Whats the Horsepower Rating on this Third member?

February 09, 2012

Whats the Horsepower Rating on this Third member?

Answers

February 10, 2012
Jason
* Forged Steel Caps * 5/8" HD Cap Bolts grade 8 * Heavy Duty Housing - 36 lbs. * Good for 1100 plus horsepower
1 answers

Is case made of nodular iron? Does it use 5/8 cap bolts?

Tulalip WA.
November 09, 2011

Is case made of nodular iron? Does it use 5/8 cap bolts?

Answers

November 10, 2011
Jason
Forged Steel Caps 5/8" HD Cap Bolts grade 8 Heavy Duty Housing - 36 lbs. Good for 1100 plus horsepower This is a cast iron case
