New 9 Inch Ford Carrier Housing 3.25 Inch Bearing Kit

SAME DAY SHIPPING! Order within the next 7 hours 38 minutes and receive same day shipping

New 9 Inch Ford Carrier Housing 3.25 Inch Bearing Kit
New 9 Inch Ford Carrier Housing 3.25 Inch Bearing Kit

Click image to enlarge

Speeday Motors Logo
X
New 9 Inch Ford Carrier Housing 3.25 Inch Bearing Kit

Details

Reviews

Q & A

What's in the Box

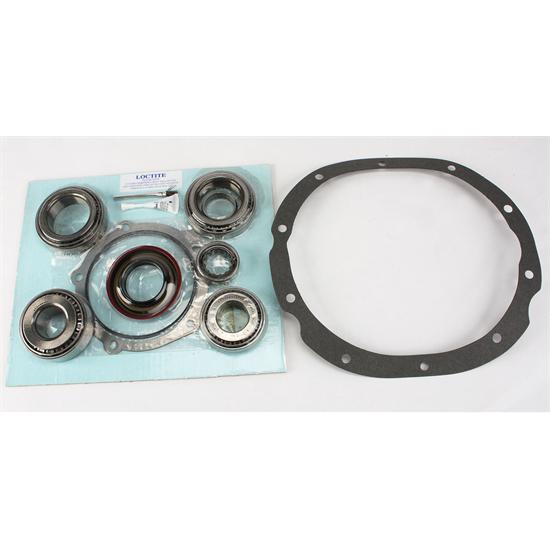

Bearing Kit for 3.25" Case. This kit is for aftermarket 9” Ford carrier housings with a 3.25” O.D. carrier bearings and the ‘Daytona’ style pinion support. This carrier combination is generally used with 35 spline aftermarket axles.

You may also be interested in:

New Ford 9 Inch Aluminum Carrier Housing w/3.062 Inch Caps


This brand new carrier housing is built to take street/strip abuse without the fear of breaking. Our aluminum housing has forged caps and extra beef where it's needed. Most stock differentials use the 3.062" o.d. bearings # TLM603049 w/ 1.781" i/d.

The aluminum case will save you 20 lbs. over the cast iron version. You should also add a new heavy duty aluminum pinion support while you're at it.

Carrier caps torque to 95 ft lbs.

New 9 Inch Ford Iron Carrier Housing w/3.25 Inch Caps


If you have built anything that has serious horsepower you know the weak link can be the stock Ford 9" carrier. The pinion area tends to be weak and if you throw enough power at it, it will break. That won't happen with this brand new housing.

This new cast iron housing is built to take street/strip abuse without the fear of breaking. Case has forged caps and extra beef where it's needed. Most stock differentials use the 3.062" o.d. bearings # TLM603049 w/ 1.781" i/d. You should also add a new heavy duty cast iron pinion support while you're at it.

  • Forged Steel Caps
  • 5/8" HD Cap Bolts grade 8
  • Heavy Duty Housing - 36 lbs.
  • Good for 1100 plus horsepower
New Ford 9 Inch Aluminum Carrier Housing w/3.25 Inch Caps


This brand new carrier housing is built to take street/strip abuse without the fear of breaking. Our aluminum housing has forged caps and extra beef where it's needed. Most stock differentials use the 3.062" o.d. bearings # TLM603049 w/ 1.781" i/d.

The aluminum case will save you 20 lbs. over the cast iron version. You should also add a new heavy duty aluminum pinion support while you're at it.

Carrier caps torque to 95 ft lbs.
