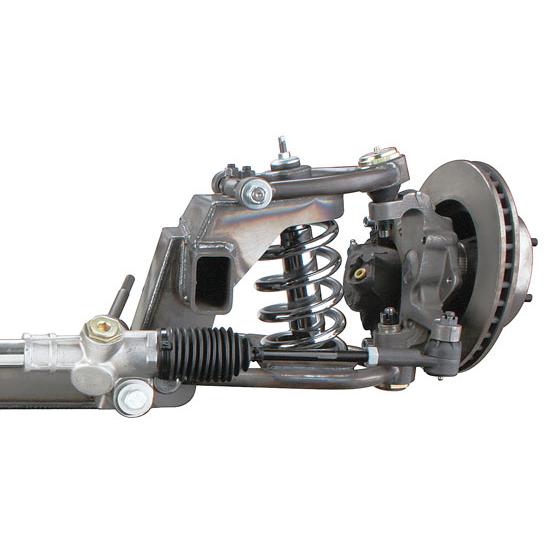

Mustang II IFS, Standard Tubular Control Arms, Stock Springs and Spindles

SAME DAY SHIPPING! Most orders ship within 24 hours.

Mustang II IFS, Standard Tubular Control Arms, Stock Springs and Spindles
Mustang II IFS, Standard Tubular Control Arms, Stock Springs and Spindles
Mustang II IFS, Standard Tubular Control Arms, Stock Springs and Spindles
Mustang II IFS, Standard Tubular Control Arms, Stock Springs and Spindles

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Includes standard upper and offset strutless lower control arms, new standard spindles, rubber brake lines, new black stock type springs and shocks, new manual or rebuilt power rack & pinion with bushings and new tie rods. The 11" brake kit features GM Metric calipers, with your choice of 5 x 4-1/2" or 5 x 4-3/4" bolt pattern.

  • Works with all Speedway and Heidts crossmembers
  • Kit Includes:
    • Standard Tubular Upper and Lower Strutless Control Arms
    • New Stock Spindles, Springs, and Shocks
    • Rack and Pinion with bushings and tie rods
    • 11" brake kit with GM calipers
  1. Add proper crossmember to complete kit.

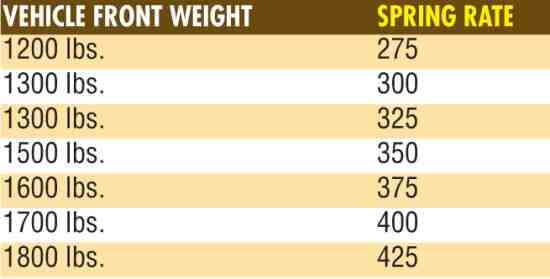

Spring Rate Chart (Link)

Note: Additional items may be needed to complete installation.  You may want to include our Mustang II ride height adjusters (91034444) for installation with these IFS kits to fine tune your final ride height up to 2".

Note:  If using these kits with Speedway or Heidts crossmembers for 1948-1956 Ford Pickups, 1955-1959 Chevy Pickups, or universal crossmembers for 27-1/2" - 33-1/2" frame widths, you will be required to purchase 2" Inner Tie Rod Extensions (91034345) or (91034346).



Notes

Why go with tubular control arms? The most obvious reason is the looks. Tubular control arms and strut rods give your hot rod a much cleaner and hi-tech appearance than the stock type do. Also, when using the strutless style, you gain more clearance because you no longer have the strut rod or its mount in the way of headers, etc. Another bonus is that the tubular control arms are available in 5/8" narrower than stock, which helps tuck the wheels up under the fenders without having to buy expensive special offset wheel. When using 5/8" narrower control arms, 5/8" must be removed from each inner tie rod end.

Note: To offer our customers a better range of spring rates, the springs included in this kit are now black in color, please note that they are no longer chrome plated.

Note: Applications where the vehicle has fenders that mount directly on top of the frame, the fenders will require extensive modification to allow clearance for the upper cross member section.

Note: These kits require the purchase of a Mustang II crossmember (sold separately).  Many of our Speedway and Heidts brand crossmembers will work with Manual Rack and Pinion Steering ONLY.  When purchasing our crossmembers, be sure to look for their correspondence with power racks if selecting a power rack with our Mustang II IFS kits.  With all Mustang II aftermarket crossmembers, spacers and longer bolts must be used with the later (Fox-body) power rack (spacers included).

Finding the right control arms means finding the correct track width: Our Mustang II kits feature 11" rotors.  Track width, which is hub face to hub face where the wheels bolt on, will be 57.5". Wheel and tire combination and customer preference determine whether to use the
standard control arms or the 5/8" narrower. The narrower control arms reduce the track with by a total of 1.25".  See the link below for
various track widths with different options.

Mustang II Track Width Options (PDF)

Item Details

Must include Mustang II crossmember for complete installation (sold separately)

Customer Reviews

Rated 4 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
0
4 Stars
2
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Starlifter
Tacoma, WA, USA
Product Rating

Product needs some Instructions

January 13, 2015
All items were packaged and in good condition, the control arms are quite beefy, the rubber cover over the ball joints just float and should be able to be slipped over a notch to be secured instead of just floating. Also there needs to be some sort of assembly info, (photos, instructions etc.) as if this is a newby trying to get this together they might have trouble, other tha that it is a good kit.
Pros:
  • beefy
Cons:
  • no assemble instructions
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Rick
Pottsville, AR.
Product Rating

very good product for the money

February 26, 2010
the only major issue the reman rack one had some rusty and bent tubes on it
Pros:
  • Very simple to assemble
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

31 questions : 32 answers

Will this kit work on a 1947 ford half ton truck? If so, what other parts would I need other than a crossmember? 351w with power steering. Also, what is the difference between this and part #91034101? If no, what kit would work best for my application?

1 answers
Gigemags05
Denton, TX
January 21, 2015

Will this kit work on a 1947 ford half ton truck? If so, what other parts would I need other than a crossmember? 351w with power steering. Also, what is the difference between this and part #91034101? If no, what kit would work best for my application?

Answers

January 21, 2015
EricM
Yes both kits can be used on your 1947 Ford pickup. You will first need to install a crossmember such as 91034430. For your application you will also need rack extensions 91034345. The difference between the two kits you have indicated is that this kit uses tubular control arms and stock height spindles where as 91034101 uses stock (stamped steel) control arms and 2" dropped spindles. Typically stock height spindles work well with pickups. The installation of this suspension will drop the truck quite a bit already.

will this fit a 1938 chrysler royal MUSTANG 11 KIT

1 answers
TAYLOR2886
Oklahoma City, OK, USA
October 27, 2014

will this fit a 1938 chrysler royal MUSTANG 11 KIT

Answers

October 27, 2014
EricM
You would need a crossmember to mount the Mustang II suspension to. We offer two universal corssmembers that may be able to be used. 413201 provides 56 1/2" hub to hub width and is for frame widths of 24" to 30". 413202 provides 60" hub to hub and is for 27 1/2" to 33 1/2" frame widths. Check your frame width and desired hub to hub width to determine which crossmember is better suited to your car.

Will this convert for a 1962 F-100? I am doing a resto-mod on a '62 F-100, and this set-up looks great. Will it fit on my truck?

1 answers
f100Bud
Converse, TX, USA
June 13, 2014

Will this convert for a 1962 F-100? I am doing a resto-mod on a '62 F-100, and this set-up looks great. Will it fit on my truck?

Answers

June 16, 2014
EricM
The IFS kit could be used on your 62 F100 but we do not have a cross member that needs to be added to the kit for your pickup. Your frame is wider and possibly could be modified to use a universal cross member such as 413202. you will need to measure outside to outside of the frame where the cross member will be installed to verify the cross member will suffice the needs.

Does this kit work on a 56 bel air? Also is there an upgrade option for larger rotors and/or to have them drilled/slotted

1 answers
Rook
San Diego, CA, USA
May 28, 2014

Does this kit work on a 56 bel air? Also is there an upgrade option for larger rotors and/or to have them drilled/slotted

Answers

May 29, 2014
EricM
This kit will work on your 56 as long as you install the appropriate cross member to mount this suspension onto. I have two universal crossmember options that may be of help in that area. They are part numbers 413201 and 413202. Measure you outside frame width and front track width (or hub to hub width) in order to pick the correct crossmember. Sorry 11" rotors are the largest I offer for this kit and I do not offer them in a drilled or slotted version.

hi , steel type spec ( 413-305) USA standard ? What kind of steel is used ! maybe you kan help me with spare parts if i send you a picture !

1 answers
rune
Sweden
April 30, 2014

hi , steel type spec ( 413-305) USA standard ? What kind of steel is used ! maybe you kan help me with spare parts if i send you a picture !

Answers

April 30, 2014
EricM
I am a little unsure of what item you are interested in knowing the steel specification for. If you are referring to the material that the cross members are made of it is a standard low carbon steel. Sorry I do not have an exact specification for the steel.

I am installing the Mustang II front suspension on my 1950 Studebaker and had a question on the lower control arm. There is a bracket with a hole in it on the lower control arm I guess this is for a torsion bar connection? Is this bracket suppose to be facing toward the back of the truck or or the front. It seems that it would interfere with the steering when faced to the front, but if I face it to the rear the spindle would not be in line top to bottom. Thanks, Brian

1 answers
bkadmire
Albuquerque, NM, USA
March 23, 2014

I am installing the Mustang II front suspension on my 1950 Studebaker and had a question on the lower control arm. There is a bracket with a hole in it on the lower control arm I guess this is for a torsion bar connection? Is this bracket suppose to be facing toward the back of the truck or or the front. It seems that it would interfere with the steering when faced to the front, but if I face it to the rear the spindle would not be in line top to bottom. Thanks, Brian

Answers

March 25, 2014
EricM
We apologize for the confusion but the bracket goes towards the front and is a sway bar bracket if you decide to put one on. Currently we do not have a sway bar kit available.

will this unit fit a 1928 tudor with the original frame it has been boxed running front fenders Im running a small block chevy currently have vega steering box 92 model chevy column

1 answers
B0bby
Katy, TX, USA
March 02, 2014

will this unit fit a 1928 tudor with the original frame it has been boxed running front fenders Im running a small block chevy currently have vega steering box 92 model chevy column

Answers

March 03, 2014
EricM
Sorry this kit does not work well with a Model A that has front fenders. We no longer carry the correct crossmember for the Model A due to the fact that most customers were not happy with the appearance of the fenders once there was enough clearance cut out of them.

Will this fit a 2004 Street Beast kit chassis for a 41 Willys? I have a new 2004 41 Willys Street Beast chassis I just purchased with no suspension front or rear. it is tubbed for a narrowed Ford 9" with 4 link and coil-overs,and the front has mounts for control arms and coil spring pockets. May be Mustang 2. I am not sure, do you know what fits this? I am open to all suggestions, this will be my next project. I was the driver/ owner/ builder of the Ladder Truck 33 wheelstander that toured the IHRA National series for 9 years.

2 answers
xracer
Harwich, MA.
September 04, 2013

Will this fit a 2004 Street Beast kit chassis for a 41 Willys? I have a new 2004 41 Willys Street Beast chassis I just purchased with no suspension front or rear. it is tubbed for a narrowed Ford 9" with 4 link and coil-overs,and the front has mounts for control arms and coil spring pockets. May be Mustang 2. I am not sure, do you know what fits this? I am open to all suggestions, this will be my next project. I was the driver/ owner/ builder of the Ladder Truck 33 wheelstander that toured the IHRA National series for 9 years.

Answers

September 09, 2013
1936Fords
Measure between the front frame rails, order a cross member that is within those dimensions from Speedway (or Welder Series) and follow directions. Get item 91034202 from Speedway, follow directions.
September 05, 2013
Jason
Speedway Motors cannot guarantee that the Street Beast all used the same front end but from customers we have worked with the Mustang II was used. The upper holes for the control arms should be 5” on center and slotted for alignment purposes. Mount holes for a front steer rack and pinion will also be slotted to accommodate 15 ½” or 16” mount centers. If those measurements appear the same it is likely to be a Mustang II front suspension.

Do u have kits an crossmembers for a 69 mustang Would also like to know th prosess of installation an or what expertise might be needed also is there a bolt on crossmembers or only welds

1 answers
Shabbs
Ca.
August 28, 2013

Do u have kits an crossmembers for a 69 mustang Would also like to know th prosess of installation an or what expertise might be needed also is there a bolt on crossmembers or only welds

Answers

August 29, 2013
Jason
Speedway offers cross member number 91034457 to work with your 69 Mustang. It is a weld in version and a bolt in version is not available currently. It will require welding experience plus some mechanical back ground for set up. It requires the use of a tubular hub to hub kit for necessary clearance and you may also be interested in the inner fender panels number 91034451 to fill in where your original shock towers installed. To maintain near stock ride height dropped spindles must also be used.

what crossmember should I use for 28 ford model A

1 answers
obonnon
June 09, 2013

what crossmember should I use for 28 ford model A

Answers

June 11, 2013
Jason
We apologize for the inconvenience but currently Speedway does not offer a cross member for the IFS kits. If a cross member is obtained from Heidt’s or Chassis Engineering you could use the kit we offer but it will not accept running the full fenders without extensive modification to clear the upper spring hat that welds to the top of the frame. We suggest Heidt’s Super Ride kit be used on the full fendered Model A’s.
