Murray V-Front/Tooth Grille Parts

Price: $2.99 - $81.99
Click image to enlarge Click image to enlarge
No video at this time.

Murray had the customer in mind when the V-Front box style pedal car was introduced in 1960.

Offered as a more economical alternative to the Flat Face, the V-Front had the same versatility Murray had become known for, which gave us new models including a Tee Bird, Fire Chief and Fire Truck. Production of the V-Front ended in 1967 when Murray stamped out a new version of the "box" style car called a Tooth Grille, which was offered until 1974. Styling changes of the grille and front of the car were the only noticeable differences from the V-Front.

Names like Charger, Pinto, Camaro, Firebird and Fire Chief were the most popular of the Tooth Grille series. An "off the beaten path" version of the Tooth Grille with an exposed plastic motor and more contemporary graphics, called the Fire Drag-on came out in 1969.

Murray also produced vehicles in both the V-Front and Tooth Grille styles with an extended rear platform, which was usually the place for an extra rider in the fire truck vehicles.

These Murray pedalers are fairly easy to find due to their long production runs.

These cars were offered with many different graphics painted on the sides. The background colors accurately depict original paint color schemes from Murray.

Parts shown in the exploded view but not listed below are currently not available. Sorry!

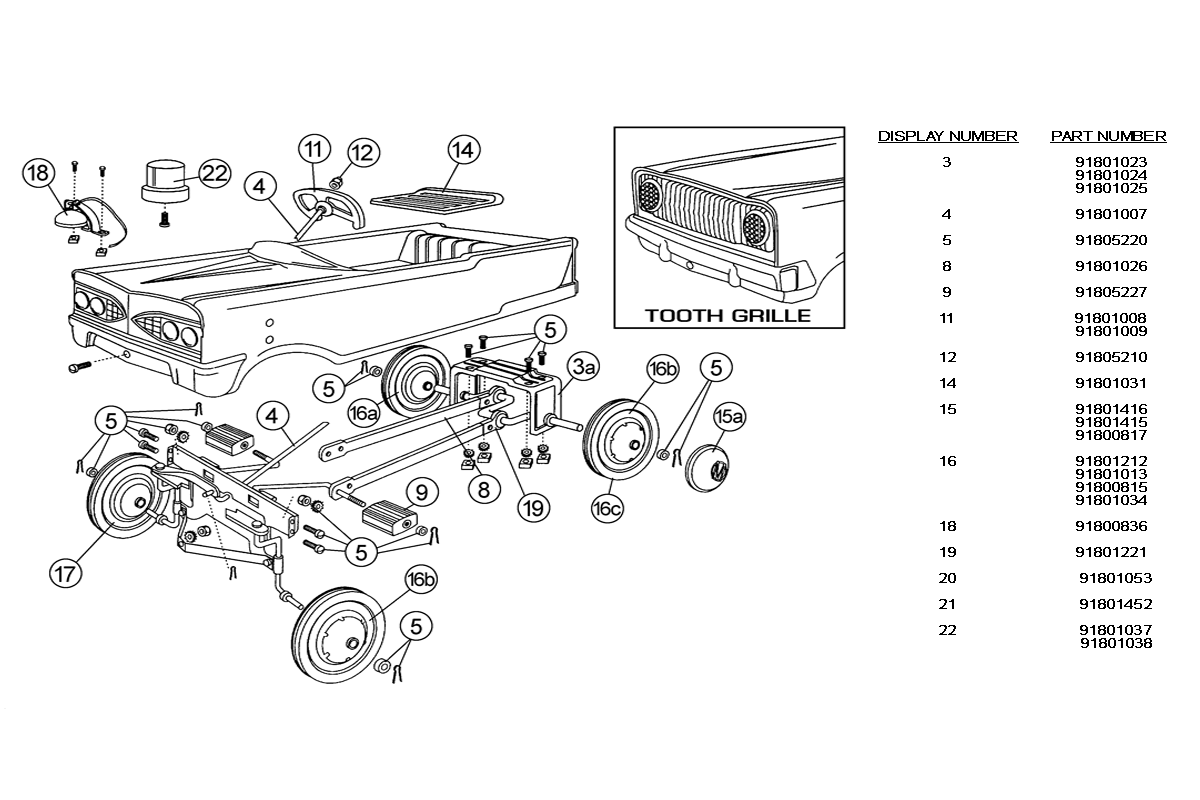

Exploded Parts Diagram for Murray V-Front/Tooth Grille


Reviews for Item #: 91801023
Be the first to review this product. Write a Review


Questions and Answers for Item #: 91801023

Get your questions answered by the community. Ask or answer questions below.

Processing
Be the first to submit a question. Click the "Ask a Question" button to continue.
Email this page
Close [x]
You can send this product by email to a friend!
Enter the required information in the spaces provided below. They will receive an Email with the picture of this product and a link back to our site.
Your Name:
Your Email:
Friends Name:
Friends Email:
Print Page
V-Front/Tooth Rear Axle Assembly with Saddle
Price:
$81.99
KT
In Stock
Item #:
91801023
Open Kit Components
- Selection of individual components may be necessary for kit purchase.
Kit Components
V-Front/Tooth Rear Axle Only
Item #:
91801025
1
Mustang Rear Axle to Saddle Bushing, Teardrop Shape
Item #:
91800221
Item Details:
Also part number 91803221, 91803421
2
V-Front/Tooth Rear Saddle Only, 9 3/4" Wide
Item #:
91801024
1

(0 Rating)
V-Front/Tooth Rear Saddle Only, 9 3/4" Wide
Price:
$25.99
EA
In Stock
Item #:
91801024

(0 Rating)
V-Front/Tooth Rear Axle Only
Price:
$56.99
EA
In Stock
Item #:
91801025

(0 Rating)
V-Front/Tooth Steering Column
Price:
$37.99
EA
In Stock
Item #:
91801007

(0 Rating)
Hardware Kit
Price:
$11.99
EA
In Stock
Item #:
91805220
Item Details:
Also part number 91800420, 91800820, 91805220, 91801220, 91801020, 91801420, 91805620

(1 Rating)
V-Front/Tooth Pedal Straps
Price:
$31.99
PR
In Stock
Item #:
91801026

(0 Rating)
Pedal Car Pedals
Price:
$11.99
PR
In Stock
Item #:
91805227
Item Details:
Also part number 91800427, 9180827, 91806027, 91801227, 91800627, 91801027, 91801427, 91801827, 91805027, 91804227, 91805627, 91804827, 91805227, 91805427

(0 Rating)
  Show Specifications
  • 91805227
    Overall Length
    2.500" (2 1/2")
    Overall Width
    1.375" (1 3/8")
    Overall Height
    1.000"
    Inside Diameter
    0.375" (3/8")
    Material Type
    Rubber
    Sold in Quantity
    Pair
ACORN NUT
Item #:
91805210
Item Details:
Also product number 91800410, 91800810, 91806010, 91801210, 91801410, 91801810, 91802210, 91804410, 91805810, 91804610

(0 Rating)
Murray "M" Hubcap, 3-3/8" Diameter, Chrome
Price:
$8.99
EA
In Stock
Item #:
91801416
Item Details:
Also part number 91800416, 91803816, 91800816, 91801216, 91801016, 91801816

(1 Rating)
Murray "M" Hubcap, 3-3/8" Diameter, Plain
Price:
$7.99
EA
In Stock
Item #:
91801415

(0 Rating)
Murray Starburst Hubcap, 3-3/8" Diameter, Chrome Plastic
Price:
$11.99
EA
In Stock
Item #:
91800817
Item Details:
Also part number 91806017, 91801017

(0 Rating)
6.5" Murray Tire
Item #:
91800815
Item Details:
Also part number 9180-0413,-3813,-3815,-0813,-1213, -0613,-0615,-0612,-1015,-0215,-5013,-5015,-5031,-3215, -4213,-4215,-3415,-2415,-5413

(2 Ratings)
  Show Specifications
  • 91800815-FLAT
    Inside Diameter
    5.750" (5 3/4")
    Outside Diameter
    7.000"
    Sold in Quantity
    Each
  • 91800815-ROUND
    Inside Diameter
    5.750" (5 3/4")
    Outside Diameter
    7.000"
    Material Type
    Rubber
    Sold in Quantity
    Each
V-Front/Tooth Seat Repair Panel
Price:
$75.99
EA
In Stock
Item #:
91801034

(0 Rating)
Flat Face Bell Assembly with Cord, Chrome
Price:
$37.99
EA
In Stock
Item #:
91800836
Item Details:
Also part number 91801036

(1 Rating)
Rear Axle Bearing Assembly
Price:
$8.99
EA
On Order
Back In Stock Notification
Item #:
91801221
Item Details:
Also part number 91800421, 91800821, 91800621, 91801021

(0 Rating)
V-FRONT/TOOTH LADDER RACKS
Price:
$69.99
PR
Discontinued
Item #:
91801053

(0 Rating)
V-FRONT/TOOTH WINDSHIELD, PLAIN
Price:
$81.99
EA
Discontinued
Item #:
91801038

(0 Rating)
Our Techs also Suggest the Following:
Flat Face Pedal Bolt, Washers & Nuts
Price:
$7.99
PR
In Stock
Item #:
91800828
Item Details:
#18 in diagram

(0 Rating)
Mustang Rear Axle to Pedal Strap Bushing
Price:
$3.99
EA
In Stock
Item #:
91800222
Item Details:
Also part number 91803222

(0 Rating)
