Moroso 63420 Manifold Filler Neck

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Centerline of Holes:
3.25
Material Type:
Aluminum
Overall Height:
3.50
Overall Length:
4.50
Sold in Quantity:
Each
Finish:
Natural
Filler Neck Height:
.88
Tube Length:
1.50
Outside Diameter:
1.88
Thread Pitch:
3/8"-16
Hose ID:
1.55
Tube I.D.:
1.30
Gasket(s) Included:
Yes
Hardware Included:
Yes
MFG. Part #:
63420
Notes
Has (1) 1/2" NPT fitting and (2) 1/4" NPT fittings. Filler neck has a 3/8" hose barb.

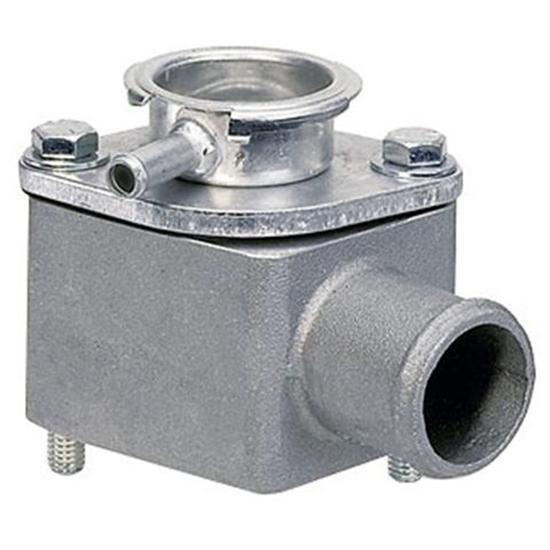

Moroso 63420 Manifold Filler Neck

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Makes manifold the highest filling point.  For cooling problems where radiator is mounted low. Fits both right or left applications. Sender mount. Fits GM V8, 90° V6.

  • Locates filler neck at highest point on cars with low-mount radiators to bleed off air
  • Unit can be flipped 180° for either right or left outlet location
  • Includes 1/2" NPT fitting for installing water temperature sending unit and two 1/4" NPT fittings for return lines on popular aftermarket cylinder heads
  • Made of 356-T6 cast aluminum; 3-1/4" high
  • Includes gaskets, bolts and washers, and standard size radiator cap filler neck
  • Cap is NOT included



Specs


Customer Reviews

Rated 5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

dirt tracker
south fork pa

if you need it get it

April 03, 2010
five star fit
Pros:
  • Great Fit
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Bob H
Ijamsville MD.

This part was the answer

January 24, 2010
This part was used on a V8 trike
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 2 answers

1 answers

every cap I put on the one I bought does not seal Does this take a special cap?

DAN57
Marysville, CA, USA
July 27, 2014

every cap I put on the one I bought does not seal Does this take a special cap?

Answers

July 29, 2014
Travisp
Cap # 910-15707 will work fine with this filler neck. It has a two part lock on the neck and you have to tighten to the second lock.
1 answers

Will this product fit a big block chrysler or is one available?

randy
mid-missouri
June 29, 2011

Will this product fit a big block chrysler or is one available?

Answers

June 30, 2011
John
This manifold filler neck is specified for the GM applications of V8’s and 90* V6. It may be adaptable to other applications but you will need to verify intake compatibility from the following dimensions. * 3 ¼” center to center mounting pattern * 2 5/16” tall * 1 ½ hose neck * 2—1/4” NPT and 1—1/2” NPT ports for heater hose or cooler line options * Filler neck has hose barb for overflow line * 9/16 bolts and gaskets included * Cap is NOT included Thermostat size is standard to the GM applications and could possibly cause problems with use in different applications. You may want to check with Moroso for availability for your particular application.
Page 1 of 1
