Moroso 21324 Circle Track Oil Pan w/ One Piece Rear Main Seal & Plug

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Painted
Liquid Measurement:
7
Depth:
7.50
Dipstick Location:
Passenger Side
Inside Width:
11.00
MFG. Part #:
21324
Oil Inspection Plug:
Yes
Pan Style:
1-Piece Rear Main
Garage Sale:
No
Sump Style:
Wet Sump

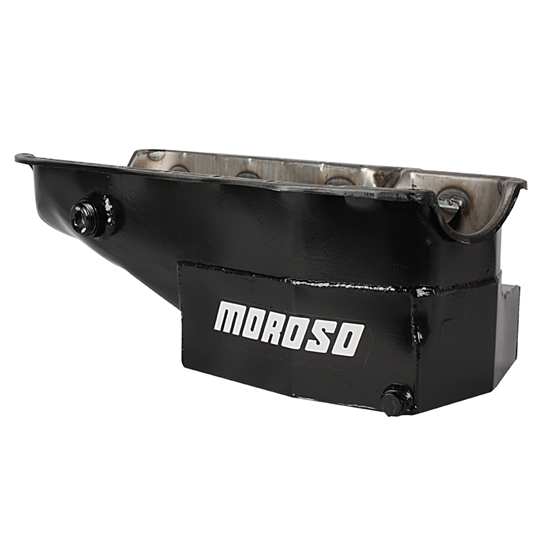

Moroso 21324 Circle Track Oil Pan w/ One Piece Rear Main Seal & Plug

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Now you can have a Moroso oil pan for an affordable price. It features trap doors for oil control, removable windage tray, built-in crank scraper and accepts up to 3.800" stroke with steel rods. It's 7-1/2" deep, 11" wide and fits 78-87 Metric chassis and Camaro stubs. Fits small block Chevy.

  • Cost-effective Circle Track oil pan with Moroso quality and performance
  • Trap door baffles for oil control
  • Removable louvered windage tray
  • Built–in crankscraper
  • Accepts 3.80" stroke with steel rods
  • Accepts most starter and flywheel combinations
  • Will not fit engine blocks with splayed main caps
  • Accepts most starter and flywheel combinations
  • Will not fit engine blocks with splayed main caps
  • Has a 7 quart capacity (not including oil filter)

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

Does this pan have a inspection plug ?

stemc2680
July 19, 2013

Does this pan have a inspection plug ?

Answers

July 22, 2013
Jason
Part #54521324 is a 7 quart Moroso oil pan with a 1" inspection bung for one piece rear main seal cranks
