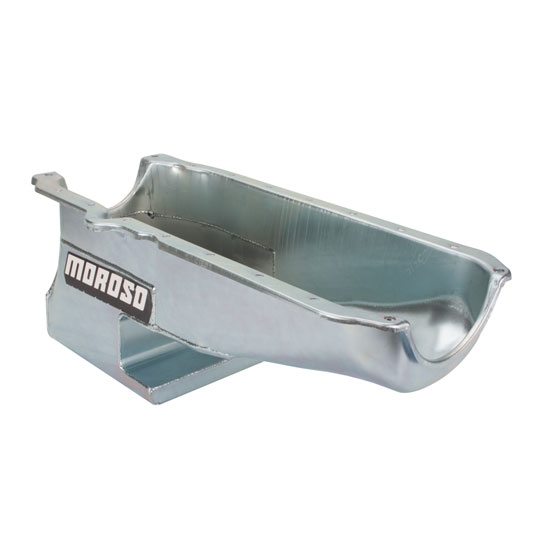

Moroso 20212 Chevy II 1986-Up Small Block Oil Pan

SAME DAY SHIPPING! Order within the next 9 hours 15 minutes and receive same day shipping

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Zinc
Liquid Measurement:
6
Depth:
9.00
Dipstick Location:
Passenger Side
MFG. Part #:
20212
Oil Inspection Plug:
No
Pan Style:
1-Piece Rear Main
Garage Sale:
No
Sump Style:
Wet Sump
Moroso 20212 Chevy II 1986-Up Small Block Oil PanMoroso 20212 Chevy II 1986-Up Small Block Oil Pan
Moroso 20212 Chevy II 1986-Up Small Block Oil Pan

Click image to enlarge

Speeday Motors Logo
X
Moroso 20212 Chevy II 1986-Up Small Block Oil Pan

Details

Reviews

Q & A

What's in the Box

If you are lucky enough to be putting together a '62-'67 Chevy II, you know the oil pan is a little bit special. These Moroso pans take the pain out of the engine install while giving it a better oiling system. Has a 6 quart capacity (not including filter).

  • Pick-up 54524120 or 54524122 is required for installation
  • Wet Sump, 9" Deep
  • Clears 3.80" stroke with most steel rods
  • Notched sump clears steering linkage
  • Compatible with most starter/flywheel combinations
  • Reduces oil temperature

For cars without power steering. Pump pick-up NOT included but is available as noted below.

Moroso Oil Pan Instructions (PDF)

Item Details

Blocks with One-Piece Rear Main Seal

You may also be interested in:

Moroso 23900 Oil Accumulator, 3 Quart Capacity


This Moroso oil accumulator prevents intermittent loss of oil pressure that can occur under hard acceleration, severe cornering or hard braking. If oil pressure drops below optimum levels, an air-charged piston automatically forces up to 3 quarts of reserve oil to the main galleries.

The Accumulator is tapped to the pressure side of the engine’s oiling system. When the engine is running, oil pressure forces reserve oil into the accumulator and compresses the air ahead. When the danger is over and the pump is once again primed with oil, the oil pressure forces oil back into the Accumulator where it is ready for the next emergency. Moroso Accumulators can also be used to manually pre-lube engines before starting to prevent cold-start scuffing and premature bearing wear.

  • Three quarts of oil under pressure provide emergency supply instantaneously when needed
  • Air Pressure gauge verifies that Accumulator is ready for use
  • Cold start valve releases oil into cold engine for reduced wear
  • Tapped for 1/2" NPT fitting
  • Can be mounted in any position using Moroso Accumulator Mount Brackets

545-23900 Instructions (PDF)

Small Block Chevy Stock Volume Oil Pump
                        Stock volume oil pump for S/B Chevy. Pump is preset to 55-65 psi and uses a 5/8" diameter pick-up tube.

Small Block Chevy High-Volume Oil Pump, 5/8 Pickup


Thse high-volume oil pumps move 25% more volume than stock volume oil pumps. Pumps are preset to 55-65 psi. Fits Small Block Chevy.

Moroso 20211 Chevy II 1955-1979 Small Block Oil Pan


If you are lucky enough to be putting together a '62-'67 Chevy II, you know the oil pan is a little bit special. These Moroso pans take the pain out of the engine install while giving it a better oiling system. Has a 6 quart capacity (not including filter).

  • Pick-up 54524120 or 54524122 is required for installation
  • Wet Sump, 9" Deep
  • Clears 3.80" stroke with most steel rods
  • Notched sump clears steering linkage
  • Compatible with most starter/flywheel combinations
  • Reduces oil temperature

For cars without power steering. Pump pick-up NOT included but is available as noted below.

Moroso Oil Pan Instructions (PDF)

Pick-up for Stock S/B Oil Pump


Moroso Small Block Chevy extended oil pump pickups are engineered to be "where the oil is" under the most demanding racing conditions. Designed for use with Moroso oil pans, these steel pickups are precision-bent and heliarc welded. A wire mesh steel screen, which is welded to the pickup box, traps debris without restricting oil flow.

  • 9 inch oil pan depth
  • Press-fit
  • Features bolt-on support bracket
  • Aftermarket pan style



Pick-up for HV S/B Oil Pump


Moroso extended oil pump pickups are engineered for Small Block Chevys to be "where the oil is" under the most demanding racing conditions. Designed for use with Moroso oil pans, these steel pickups are precision-bent and heliarc welded. A wire mesh steel screen, which is welded to the pickup box, traps debris without restricting oil flow.

  • 9 inch oil pan depth
  • Press-fit
  • Small Block Chevy
  • Aftermarket Pan Style
  • Features bolt-on support bracket
