Moroso 73220 Spiral Core Spark Plug Wires Set 135 Degree Boot Blue Max

Specs
Color:
Blue
Sold in Quantity:
Set
Cap Terminal Style:
HEI / Male
Diameter:
8
Resistance:
800
MFG. Part #:
73220
Spark Plug Boot Ends:
135 Degree
Conductor Style:
Spiral Core
RFI Suppression:
Yes
Coil Wire Included:
Yes
Garage Sale:
No
Notes
Contains terminals for both HEI and non-HEI distributors
Moroso 73220 Spiral Core Spark Plug Wires Set 135 Degree Boot Blue MaxMoroso 73220 Spiral Core Spark Plug Wires Set 135 Degree Boot Blue Max

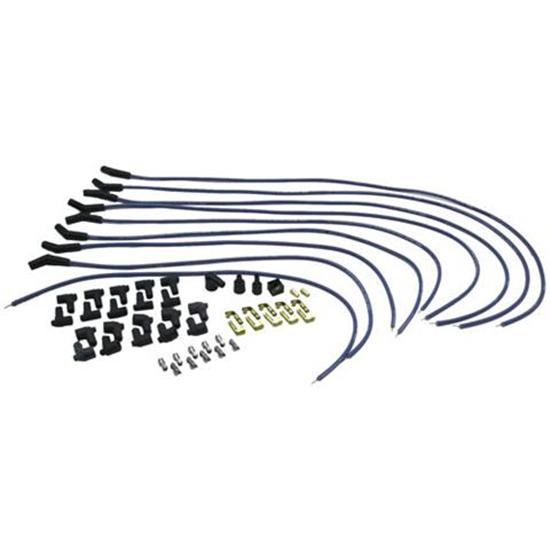

Moroso 73220 Spiral Core Spark Plug Wires Set 135 Degree Boot Blue Max

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a set.

Details

Reviews

Q & A

What's in the Box

The superiority of Moroso Blue Max 8mm, 800 ohm spiral core wire comes from over 27 years of continual refinement. The combination of Moroso engineering expertise and a rigorous testing program makes this the finest ignition wire available for street or race. These spark plug wire sets are terminated at the plug end only and include enough wire length and terminals to fit HEI or Non-HEI distributors. You install the distributor ends. Wire color is blue.

  • Optimized combination of capacitance, inductance and resistance
  • Provides more spark energy and EMI protection than any other spiral core wire available
  • Eliminates interference with on-board electronics and provides static-free sound quality for car audio systems
  • Universal plug wire set fits HEI or socket style caps
  • Spark plug terminals and boots factory installed
  • You install distributor ends

Spark Plug Wire Installation Instructions (PDF)

Learn how to properly attach new spark plug terminals and boots by reading our tech article. How to Install Spark Plug Wire Ends.
