Model A 4-Bar Tube Axle Kit for Chevy Spindles, Plain

SAME DAY SHIPPING! Most orders ship within 24 hours.

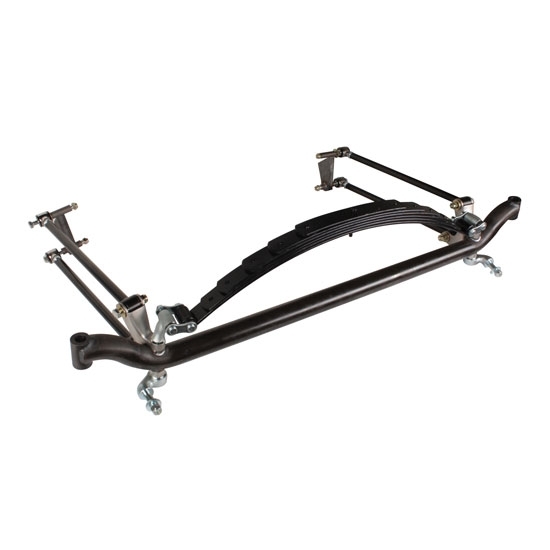

Model A 4-Bar Tube Axle Kit for Chevy Spindles, Plain
Model A 4-Bar Tube Axle Kit for Chevy Spindles, Plain

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

Save yourself searching and confusion with these complete 1928-31 Ford Model A front suspension kits. Each kit includes a 48" wide, 3" drop tube axle, our famous urethane-bushed 21" long four bar assembly, perch bolts, lower shock mounts, spring shackles, Super Glide spring and the necessary brackets and hardware needed for assembly. (Spring and frame brackets are not stainless steel).

Kit requires 1949-54 Chevy passenger car spindles.

Each kit includes:

  • 48" wide (kingpin-to-kingpin) steel tube axle, 3" drop
  • Urethane-bushed 21" long 4-bar assembly
  • Forged steel spring perch bolts
  • Forged steel lower shock mounts (key-slotted design)
  • Spring shackles w/ nylon bushings
  • 31-1/4" eye-to-eye 4-leaf Super Glide spring, 1-3/4" wide
  • All hardware for assembly

Front Axle/Suspension Tech Tips (GIF)



Notes

We strongly reccommend the use of a front panhard bar (such as our 910-49801)  with four bar front suspensions. Four bar suspensions increase suspension travel over original wishbones or radius rods, which increases the need for side-to-side axle control. If using a Vega cross steering system, the panhard bar becomes mandatory as any side-to-side movement will cause bump steer.

You may also be interested in:

Red Line 80402 CV-2 Synthetic Grease
SKU-60710002


Red Line’s team of chemists formulate fully-synthetic lubricants using only the world’s finest base stocks. At Red Line, it’s not designed to be the cheapest – it’s built to be the best. Red Line only uses superior polyester-based products – resulting in lubricants that are extremely stable at high temperatures.

Synthetic CV-2 grease provides excellent water resistance, low temperature flow, and its very high melting point allows it to be used in high temperature wheel bearings, high angle and conventional CV-joints, chassis lubrication and many industrial applications.

  • Outperforms the best conventional or synthetic greases and lubes
  • Excellent high-temp stability, extreme-pressure protection, and water resistance
  • Used in a variety of applications with operating temps from -100°F to 500°F
  • Strong resistance to oxidation and corrosion, low evaporation and oil separation with a minimum effect on rubber seals
  • Contains an organic moly for chassis lubrication and high temp/high speed industrial equipment
  • Synthetic fluidity allows increases in bearing life up to 200%
  • Contains a red moly compound which is a superior lubricant to black moly disulfide lubricants
Pro-Blend 1720 Anti-Seize Compound
SKU-91016009


Apply Pro-Blend anti-seize directly to any metal surface that may gall or seize due to heat, pressure, torque loading or shock. Excellent in environments of gas, alcohol, water, solvents, dirt, sand, and grit.

  • Defies contact of dissimilar or like metals
  • Not affected by heat, moisture, salt water, or corrosion

Learn why using anti-seize is so important in our tech article, Installing New Hardware.

Chevy Front Axle Steering & Brake Kit, 48 Inch Axle
SKU-9133901


Speedway's exclusive steering & brake kits save you time and money by combining all necessary parts into one part number. Each kit includes brake kit, spindles, dust caps, spindle nuts, AN3 caliper fittings, Rubber Brake Lines, kingpins, flat steering arms, tie rod assembly and hardware.

For 48" kingpin-to-kingpin axles. Traditional steering arm for left front wheel NOT included with Traditional steering kit.

  • Speedway 1949-1954 Chevy Spindles
    • One piece forged 4140 steel
    • Modeled after the 49-54 Chevy passenger car spindles
    • Steering arms may be mounted to the top or bottom of the spindle
    • Standard king pins fit to spindles
  • Speedway 9-1/4" Brake Kit
    • 9-1/4" Mustang II rotors
    • 5 x 4-1/2" or 5 x 4-3/4" bolt patterns
    • Wheel studs - 1/2" Fine (4-1/2" BP), 7/16" Fine (4-3/4" BP)
    • Hub flange (hat) diameter - 5.74"
    • GM Metric '78-'88 calipers, 2-1/2" piston
    • 7/16" banjo bolt to -3 AN line adapter kit
  • Traditional or Cross Steering Kit
    • Flat plate steering arms
    • 5/8" tie rod steering link
    • 5/8" standard heim joint rod ends
    • Seals-It 5/8" rod end seals
    • 5/8" steel cone heim spacers

Spindle Identification Guide (GIF)

Chevy Wilwood Front Brake & Steering Kits, 48 Inch Axle
SKU-9133903


Speedway's exclusive steering & brake kits for 1949-54 Chevy spindles save you time and money by combining all necessary parts into one part number. Each kit includes premuim Wilwood brake components, spindles, flat steering arms, tie rod assembly and hardware. Hubs are drilled for both 4-1/2" and 4-3/4" bolt patterns. Must be used with a 15" or larger wheel. For use on cars up to 2800 pounds with rear discs or on cars up to 2400 pounds with rear drums. Kits can be used with either manual or power boost master cylinders.

Choose:

  • Traditional or cross steering
  • Chrome or plain steering arms and tie rod cross bar

Features these Wilwood components:

  • 4-piston Forged Billet Dynalite Calipers
  • 10-3/4" diameter x .380" thick solid steel rotors - black finish
  • Lightweight clear-anodized aluminum hubs
Front Panhard Bars
SKU-91049801


With cross steering a Panhard bar is a must-have. It stops side-to-side sway of chassis relative to the axle. This bar is for spring-over-axle, 4-bar front ends on 1928-1934 Fords.  Tube O.D. is 5/8".

  • 11/16" outside diameter
  • 1/2" inside diameter
  • 1/2" bolt
  • 1/2" heim

Chassis bracket welds-on, then bar bolts in place to the side of the 4-bar batwing. Panhard bar bracket mounts to a batwing that features a 4-1/2" on center four-bar spacing.

Speedway 1949-54 Chevy Car Modified Spindles Only
SKU-91632100


Speedway has produced these new forged steel reproduction car spindles. They have many features not available with GMs' original design! These spindles are the choice of professional builders because of their clean look, strength and ease of installation.

  • Made to direct mount Mustang II hubs and rotors plus many other later GM's
  • Kingpin geometry changed to work with current radial tire construction
Spindles also available in kit form with kingpins. Save when you purchase a complete kit!

Spindle Identification Guide (GIF)

Model A 4-Bar Tube Axle Kit for Chevy Spindles, Chrome
SKU-91639512


Save yourself searching and confusion with these complete 1928-31 Ford Model A front suspension kits. Each kit includes a 48" wide, 3" drop tube axle, our famous urethane-bushed 21" long four bar assembly, perch bolts, lower shock mounts, spring shackles, Super Glide spring and the necessary brackets and hardware needed for assembly. (Spring and frame brackets are not stainless steel).

Kit requires 1949-54 Chevy passenger car spindles.

Each kit includes:

  • 48" wide (kingpin-to-kingpin) steel tube axle, 3" drop
  • Urethane-bushed 21" long 4-bar assembly
  • Forged steel spring perch bolts
  • Forged steel lower shock mounts (key-slotted design)
  • Spring shackles w/ nylon bushings
  • 31-1/4" eye-to-eye 4-leaf Super Glide spring, 1-3/4" wide
  • All hardware for assembly

Front Axle/Suspension Tech Tips (GIF)



Model A 4-Bar Tube Axle Kit for Chevy Spindles, Stainless
SKU-91639522


Save yourself searching and confusion with these complete 1928-31 Ford Model A front suspension kits. Each kit includes a 48" wide, 3" drop tube axle, our famous urethane-bushed 21" long four bar assembly, perch bolts, lower shock mounts, spring shackles, Super Glide spring and the necessary brackets and hardware needed for assembly. (Spring and frame brackets are not stainless steel).

Kit requires 1949-54 Chevy passenger car spindles.

Each kit includes:

  • 48" wide (kingpin-to-kingpin) steel tube axle, 3" drop
  • Urethane-bushed 21" long 4-bar assembly
  • Forged steel spring perch bolts
  • Forged steel lower shock mounts (key-slotted design)
  • Spring shackles w/ nylon bushings
  • 31-1/4" eye-to-eye 4-leaf Super Glide spring, 1-3/4" wide
  • All hardware for assembly

Front Axle/Suspension Tech Tips (GIF)



Speedway Vega Cross Steering Box
SKU-91032204


The Vega Manual Steering Box is the foundation of a cross steering system, which is the most popular steering system for modern Hot Rods. These boxes are compact, durable and are getting more scarce every day.

This unit bolts up to all normal Vega-type brackets and accepts Vega-spline u-joints, pitman arms and accessories. Durable cast iron and machined steel construction will give years of high-mileage service.

  • New castings and components
  • Faithful reproduction of size, shape and mounting hole locations
  • No core charge

Cross Steering Guide (GIF)

Note:  Vega steering box is not adjusted at the factory and therefore, it is necessary that the steering box be adjusted upon installation per the instructions as provided on the PDF instruction sheet.

910-32204 Instructions (PDF)

Ford Model T - 1934 Front Spring U-Bolt Kit, Plain Steel
SKU-91633006


Use with original or reproduction Model "T" thru '34 Ford crossmembers. Includes two U-bolts with nuts, one spacer plate and one lower bracket.

Weld-On U Bolt Plates
SKU-9161002


This kit will clean up the appearance of your front crossmember. It has two plates that weld to the crossmember, and another plate that holds the spring from the underside, eliminating the need to have the U-bolts come up over the top of the crossmember.

Speedway 1949-1954 Chevy Car Modified Spindles w/ King Pins
SKU-91032100


Speedway has produced these new forged steel reproduction car spindles. They have many features not available with GMs' original design! These spindles are the choice of professional builders because of their clean look, strength and ease of installation.

  • Made to direct mount Mustang II hubs and rotors plus many other later GM's
  • Kingpin geometry changed to work with current radial tire construction
  • Includes many features not found on GM's original design
  • Forged steel (not cast) reproduction spindles
  • Kit includes pair of new spindles with new kingpins fit to spindle
  • Spindle nuts NOT included (sold separately)

Spindle Identification Guide (GIF)
