Model A 4-Bar Tube Axle Kit for Chevy Spindles, Chrome

SAME DAY SHIPPING! Most orders ship within 24 hours.

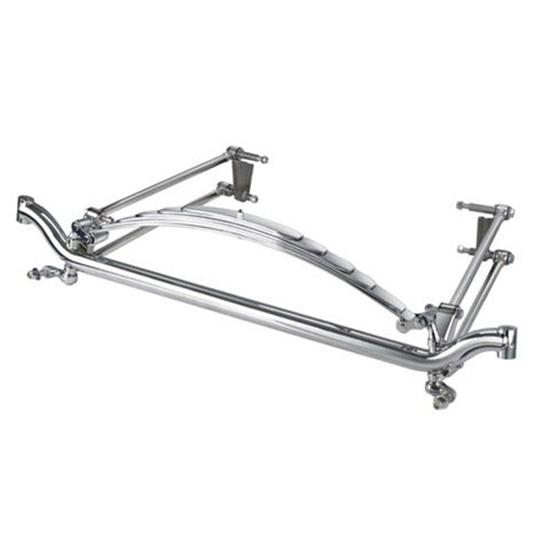

Model A 4-Bar Tube Axle Kit for Chevy Spindles, Chrome
Model A 4-Bar Tube Axle Kit for Chevy Spindles, Chrome

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

Save yourself searching and confusion with these complete 1928-31 Ford Model A front suspension kits. Each kit includes a 48" wide, 3" drop tube axle, our famous urethane-bushed 21" long four bar assembly, perch bolts, lower shock mounts, spring shackles, Super Glide spring and the necessary brackets and hardware needed for assembly. (Spring and frame brackets are not stainless steel).

Kit requires 1949-54 Chevy passenger car spindles.

Each kit includes:

  • 48" wide (kingpin-to-kingpin) steel tube axle, 3" drop
  • Urethane-bushed 21" long 4-bar assembly
  • Forged steel spring perch bolts
  • Forged steel lower shock mounts (key-slotted design)
  • Spring shackles w/ nylon bushings
  • 31-1/4" eye-to-eye 4-leaf Super Glide spring, 1-3/4" wide
  • All hardware for assembly

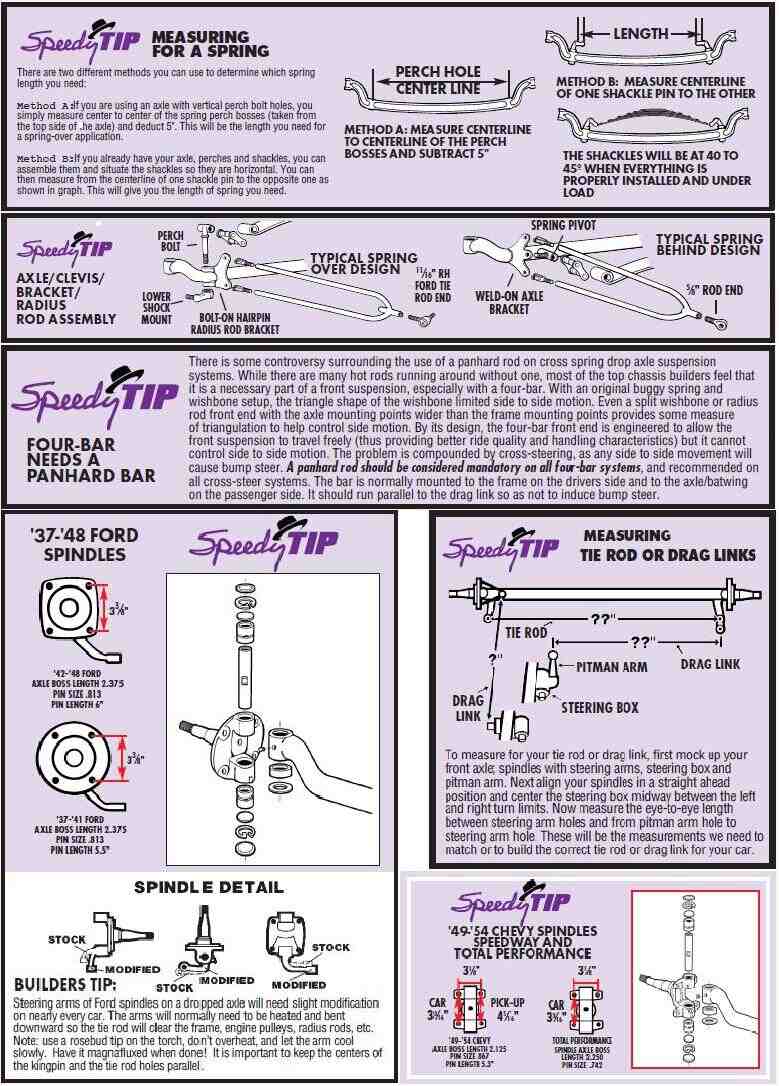

Front Axle/Suspension Tech Tips (GIF)



Notes

We strongly reccommend the use of a front panhard bar (such as our 910-49801)  with four bar front suspensions. Four bar suspensions increase suspension travel over original wishbones or radius rods, which increases the need for side-to-side axle control. If using a Vega cross steering system, the panhard bar becomes mandatory as any side-to-side movement will cause bump steer.

You may also be interested in:

Model A 4-Bar Tube Axle Kit for Chevy Spindles, Plain
(Part #91639502)


Save yourself searching and confusion with these complete 1928-31 Ford Model A front suspension kits. Each kit includes a 48" wide, 3" drop tube axle, our famous urethane-bushed 21" long four bar assembly, perch bolts, lower shock mounts, spring shackles, Super Glide spring and the necessary brackets and hardware needed for assembly. (Spring and frame brackets are not stainless steel).

Kit requires 1949-54 Chevy passenger car spindles.

Each kit includes:

  • 48" wide (kingpin-to-kingpin) steel tube axle, 3" drop
  • Urethane-bushed 21" long 4-bar assembly
  • Forged steel spring perch bolts
  • Forged steel lower shock mounts (key-slotted design)
  • Spring shackles w/ nylon bushings
  • 31-1/4" eye-to-eye 4-leaf Super Glide spring, 1-3/4" wide
  • All hardware for assembly

Front Axle/Suspension Tech Tips (GIF)



Model A 4-Bar Tube Axle Kit for Chevy Spindles, Stainless
(Part #91639522)


Save yourself searching and confusion with these complete 1928-31 Ford Model A front suspension kits. Each kit includes a 48" wide, 3" drop tube axle, our famous urethane-bushed 21" long four bar assembly, perch bolts, lower shock mounts, spring shackles, Super Glide spring and the necessary brackets and hardware needed for assembly. (Spring and frame brackets are not stainless steel).

Kit requires 1949-54 Chevy passenger car spindles.

Each kit includes:

  • 48" wide (kingpin-to-kingpin) steel tube axle, 3" drop
  • Urethane-bushed 21" long 4-bar assembly
  • Forged steel spring perch bolts
  • Forged steel lower shock mounts (key-slotted design)
  • Spring shackles w/ nylon bushings
  • 31-1/4" eye-to-eye 4-leaf Super Glide spring, 1-3/4" wide
  • All hardware for assembly

Front Axle/Suspension Tech Tips (GIF)



Ford Model T - 1934 Front Spring U-Bolt Kit, Chrome
(Part #91633022)


Use with original or reproduction Model "T" thru '34 Ford front crossmembers. Includes two chrome plated U-bolts with nuts, one plain steel spacer plate and one plain steel lower bracket.

Note: Only the bolt finish is chrome, the clamping plate and leaf spacer have a plain finish. Threaded items which are chrome plated will have a build-up of chrome in threads. You must run a tap or die over those threads and apply an anti-seize compound or the parts will be damaged upon assembly.

Weld-On U Bolt Plates
(Part #9161002)


This kit will clean up the appearance of your front crossmember. It has two plates that weld to the crossmember, and another plate that holds the spring from the underside, eliminating the need to have the U-bolts come up over the top of the crossmember.

Speedway 1949-1954 Chevy Car Modified Spindles w/ King Pins
(Part #91032100)


Speedway has produced these new forged steel reproduction car spindles. They have many features not available with GMs' original design! These spindles are the choice of professional builders because of their clean look, strength and ease of installation.

  • Made to direct mount Mustang II hubs and rotors plus many other later GM's
  • Kingpin geometry changed to work with current radial tire construction
  • Includes many features not found on GM's original design
  • Forged steel (not cast) reproduction spindles
  • Kit includes pair of new spindles with new kingpins fit to spindle
  • Spindle nuts NOT included (sold separately)

Spindle Identification Guide (GIF)
