Mittler Grand National Rear Axle Housing, 62 Inch

SAME DAY SHIPPING! Order within the next 1 hour 16 minutes and receive same day shipping

Mittler Grand National Rear Axle Housing, 62 InchMittler Grand National Rear Axle Housing, 62 Inch
Mittler Grand National Rear Axle Housing, 62 Inch

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

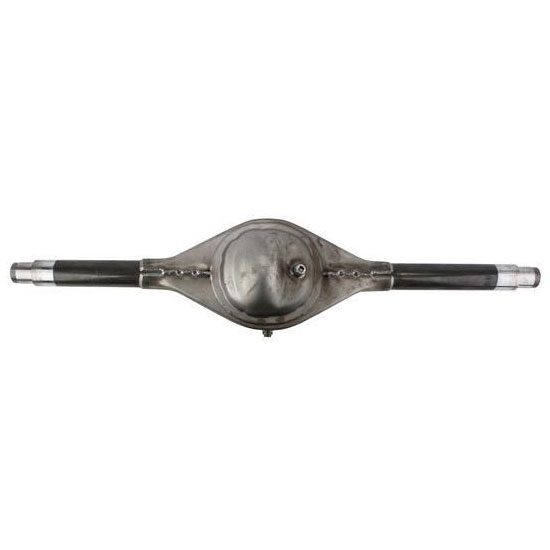

Winters Grand National replacement full floating Ford 9 inch rear end housing.

Part # 655-4800 features two 30" tubes and the pinion is centered.
Part # 655-4803 features  has a driver side tube at 31-1/2" in length and pass. side is 30-1/2" in length.  Pinion is offset 1/2" to RH side.
