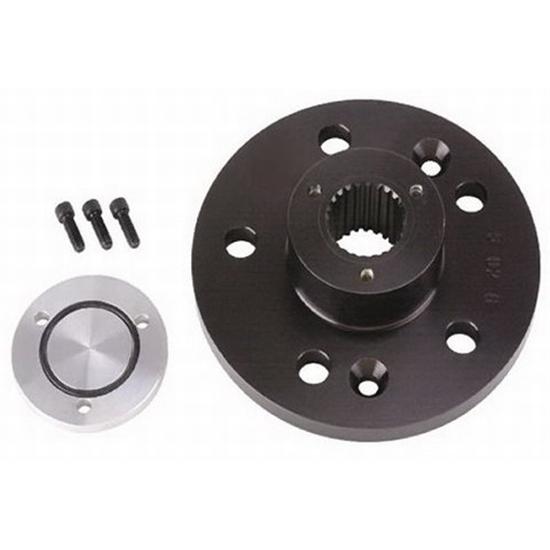

Mittler Grand National Aluminum Drive Flange, 5-on-5 Inch

SAME DAY SHIPPING! Order within the next 14 hours 10 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Sold in Quantity:
Each
Finish:
Anodized
Bolt Pattern:
5 on 5"
Spline Count:
24
Garage Sale:
No
Outside Diameter:
-
Spline OD:
1.56
Flange Thickness:
.44
Notes
Includes flange, dust cap, and set screws.
Mittler Grand National Aluminum Drive Flange, 5-on-5 Inch

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

The diameter of the GN HAT flange is smaller than the diameter of the DIRECT flange, therefore the HAT flange will work either rotor mount application, but the DIRECT flange will only work with direct mount rotor setups.

"DIR" Refers to a hub assembly that uses a rotor adaptor that bolts the rotor directly to the back of the hub. "HAT" refers to a hub assembly that uses a rotor and hat assembly that slides over the outside of the hub to mount to the rotor.

Be sure to give the two countersunk retainer screws a liberal dab of grease or anti-seize compound.

Item Details

Includes axle cap, O-ring and cap bolts.

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Bona
Verified Purchaser
Winthrop, ME.

I will buy this product again

July 13, 2015
I use this product & others from you on my vintage race car. The quality & fit was perfect. As always,, very satisfied with all products. Oh,, by the way I finished 2nd on Sat. night.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 2 answers

1 answers

what size are the bolts that hold the flange to the hub ?

joek89
February 04, 2015

what size are the bolts that hold the flange to the hub ?

Answers

February 04, 2015
EricM
The bolts that fasten the drive flange to the hub are 5/16" x 3/4" long. Check your hub to determine if you need fine thread or coarse thread bolts. If you need coarse thread then we offer bolts 91048385-2 which are 5/16" - 18 (coarse thread). This drive flange will only fit Mittler Brothers brand hubs. Nearly all brands have a different spacing for the bolt holes that fasten the drive flange to the hub.
1 answers

Do u sell dust cap by its self.?

mille81
August 21, 2015

Do u sell dust cap by its self.?

Answers

August 24, 2015
Eric
Expert
Sorry we do not sell the dust cap separately.
Page 1 of 1
