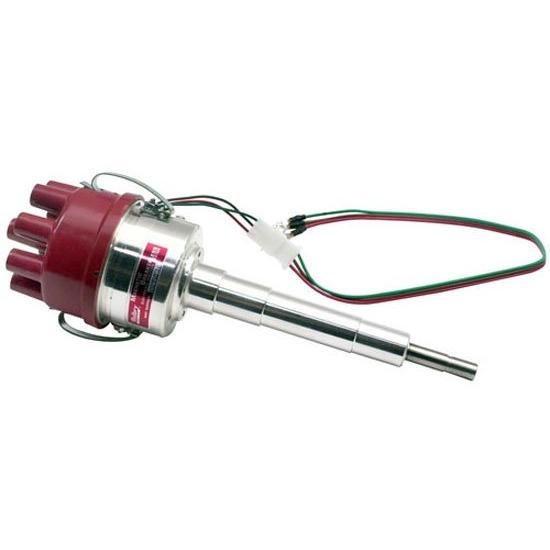

Mallory Ignition 5027501 1949-53 Ford Flathead Electronic Distributor

Free Shipping Free Shipping
Specs
Sold in Quantity:
Each
Trigger Style:
Magnetic Pickup
Cap Terminal Style:
Socket / Female
Gear Material:
Steel
Rotor Rotation:
Clockwise
Advance Type:
Mechanical/Vacuum Option
MFG. Part #:
5027501
Mechanical Tach Drive:
No
Slip Collar:
No
Ignition Box Required:
No
Garage Sale:
No
Mallory Ignition 5027501 1949-53 Ford Flathead Electronic Distributor
Mallory Ignition 5027501 1949-53 Ford Flathead Electronic Distributor
Mallory Ignition 5027501 1949-53 Ford Flathead Electronic Distributor
Mallory Ignition 5027501 1949-53 Ford Flathead Electronic Distributor
Mallory Ignition 5027501 1949-53 Ford Flathead Electronic Distributor

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Tried and true Mallory electronic distributor for your 1949-1953 Flathead Ford. Features magnetic breakerless ignition technology for greatly improved accuracy versus points-style distributors. For 12 volt systems only.

  • Easy 3-wire hookup
  • Adjustable mechanical advance
  • Self-lubricating bushings provide years of trouble-free service
  • Includes Mallory Super-Duty Cap and Rotor with brass terminals
  • Distributor drive gear not included (sold separately)

Note: This distributor requires 1.4 ohms of coil resistance. If you are using a coil with less than 1.4 ohms, you must use a ballast resistor that will achieve the required 1.4 ohm total resistance. If you are using coil # 447-45001, no resistor will be required.

500-5027501 Instructions (PDF)

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Mel
Verified Purchaser
Verified Reviewer
Bellingham WA

New trick for an old dog

July 13, 2015
This Mallory distributor provides a centrifugal advance system where the stock vacuum advance is not possible with multiple carburetors. It also eliminates the need for gnition points and condensor. I understand Mallory has been bought out by MSD and the Mallory product line is to be discontinued.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

5 questions : 5 answers

1 answers

Is this distributor for negative ground only or can it be used for positive ground as well?

DonnyF1
November 03, 2014

Is this distributor for negative ground only or can it be used for positive ground as well?

Answers

November 03, 2014
EricM
This is for 12 volt negative ground only.
1 answers

How does this get held down?

Chopperwolf13
October 08, 2014

How does this get held down?

Answers

October 09, 2014
EricM
This 49-53 Mallory distributor uses the original hold down. If you do not have the stock hold down we offer 54526211 which will work for you as well.
1 answers

Is there a hole in the shaft to receive the gear drift pin. I can see the hole in the gear.

Jerry
Lacey, WA
May 27, 2011

Is there a hole in the shaft to receive the gear drift pin. I can see the hole in the gear.

Answers

June 02, 2011
John
This Mallory distributor fits the 49-53 Flathead Ford engines and comes with the drive gear NOT installed. Customer will need to trial fit the distributor and gear and then drill the shaft at the proper location for installation of the gear thus achieving proper gear mesh.
1 answers

what coil should one use with the Mallory 49-53 Ford Flathead Electronic Distributor

Dennis
Madison, WI
June 09, 2011

what coil should one use with the Mallory 49-53 Ford Flathead Electronic Distributor

Answers

June 10, 2011
Jason
Part #44745001 is the most common choice
1 answers

will this dissy fit a merc timing cover , which has an extended shaft past the gear. the ford ends at the gear?

bill
sequim WA
June 06, 2015

will this dissy fit a merc timing cover , which has an extended shaft past the gear. the ford ends at the gear?

Answers

June 09, 2015
Zach
Expert
Yes these covers accept the longer alignment pin at the base of the distributor gear.
Page 1 of 1

You may also be interested in:

1949-1953 Flathead Ford Distributor Drive Gear
(Part #91012701)


This gear attaches to the base of the distributor shaft on 1949-53 Ford V8's. Replace your worn, damaged or missing original gear with this top quality new one! Roll pin not included (reuse original pin).

Note: We recommend you replace the cam gear and distributor drive gear at the same time.

PerTronix 40001 Flame-Thrower Coil, Chrome
(Part #44745001)


The hotter the spark, the easier your engine will start, and this 40,000 volt coil is just the ticket to a quick start! Its higher voltage allows larger spark plug gaps for added power, smoother response and better fuel economy. These coils are internally resisted so they are compatible with many inductive ignition systems.

  • Smooth chrome finish
  • 40,000 volts
  • For use with 12 volt inductive ignition systems.
  • 1.5 Ohm primary resistance
  • Legal in all 50 states and Canada
