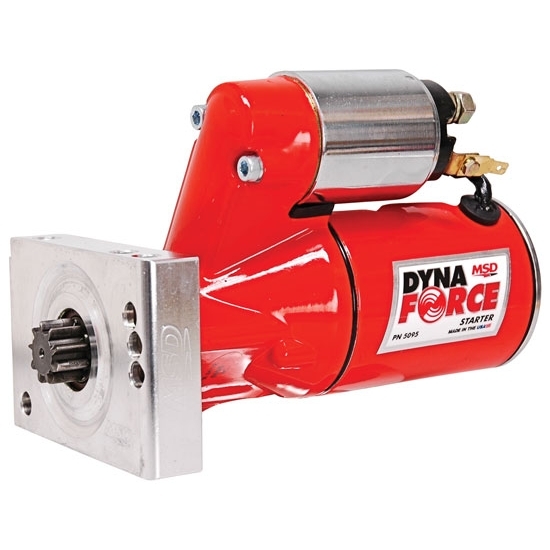

MSD 5095 DynaForce Chevy Starter

SAME DAY SHIPPING!

Share by Email

From
To

Click image to enlarge



X

Details

Reviews

Q & A

What's in the Box

The new DynaForce Starter is designed to crank over the highest compression engines on a hot day in Death Valley. Not that too many race cars are sitting in Death Valley, but it’s good to know that you have the oomph to make it happen. The DynaForce Starter features all new components beginning with a three horsepower motor. This power is used to crank over the reduced 4.4:1 gear set to deliver great torque to the engine’s ring gear to get the engine turning. The armature is balanced during assembly and is guided by two ball bearings for smooth engagement and thousands of starts. The downsized housing clears most headers and oil pans, but just in case, we made the billet mount so it can be clocked in different positions to help in tight applications. The assembly is powder coated MSD red and will stay looking good, even though it’s underneath your car.

  • Fits Chevy V8, 153 and 168 tooth flywheels
  • Mount is for straight bolt pattern
  • Gear reduction of 4.4:1 improves torque for great cranking
  • Three horsepower motor provides power for high compression engines
  • Ball bearing supported armature and pinion gear
  • Downsized design helps clearance issues with oil pans and exhaust
  • Mount can be clocked to assist in mounting



547-5095 Instructions (PDF)

Warranties

For warranty information please visit http://www.msdhelp.com/

You may also be interested in:

Speedway Chevy Mini Starter, 2.0 kW, Plain
                        High torque, high output motors and gear reduction drive design spins the engine over faster, with 50% more cranking torque and LESS amp draw than a stock starter! Compact, offset design gives more header and chassis clearance. Perfect for high compression or supercharged Chevy engines.

Straight mount 6061-T6 aluminum mounting plates work with 153 or 168 tooth flywheels on Chevy V8 or 90° V6. Works on blocks with angle bolt starter flange by drilling and tapping one hole.

Only 1-1/2 lb. heavier and 1" longer than the 1.4 kW version.

From the centerline of the mounting bolt holes to the end of the starter is 7-3/4"

Chevy Mini Starter Installation Instructions (PDF)

Tuff Stuff Chevy Super-Mini Starter, 153 or 168 Tooth Flywheel


These are called "super" starters because they put out a whopping 2.6 hp. If you don't want to worry if your starter will crank over your high compression engine, get one of these. Choose plain black or chrome finish.

  • Works with 153 or 168 tooth flywheels
  • Small and Big Block Chevy engines
  • Works with big cubic inch high compression engines
  • Generates 2.6 horsepower
  • 1.6 kilowatts
  • Gear Reduction
  • Choose either:
    • PLN = Black finish
    • CHR= Chrome finish
Speedway Chevy Starter


Compact 3 horsepower Speedway Starter by Stephenville Electric. New proprietary design to crank those high compression and big cubic inch Chevy engines. Each starter is dyno tested.

Includes shims and mount bolts. Fits both SBC and BBC engines.

MSD 5087 Starter Solenoid


Replacement solenoid for MSD starters 547-5095 & 547-5090.

MSD 5089 Starter Gear Clutch Assembly


Replacement gear clutch assembly for PN 547-5090, 547-5095 and 547-5096.
