Longacre 79500 Toe Plates

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Sold in Quantity:
Set
MFG. Part #:
79501
Garage Sale:
No

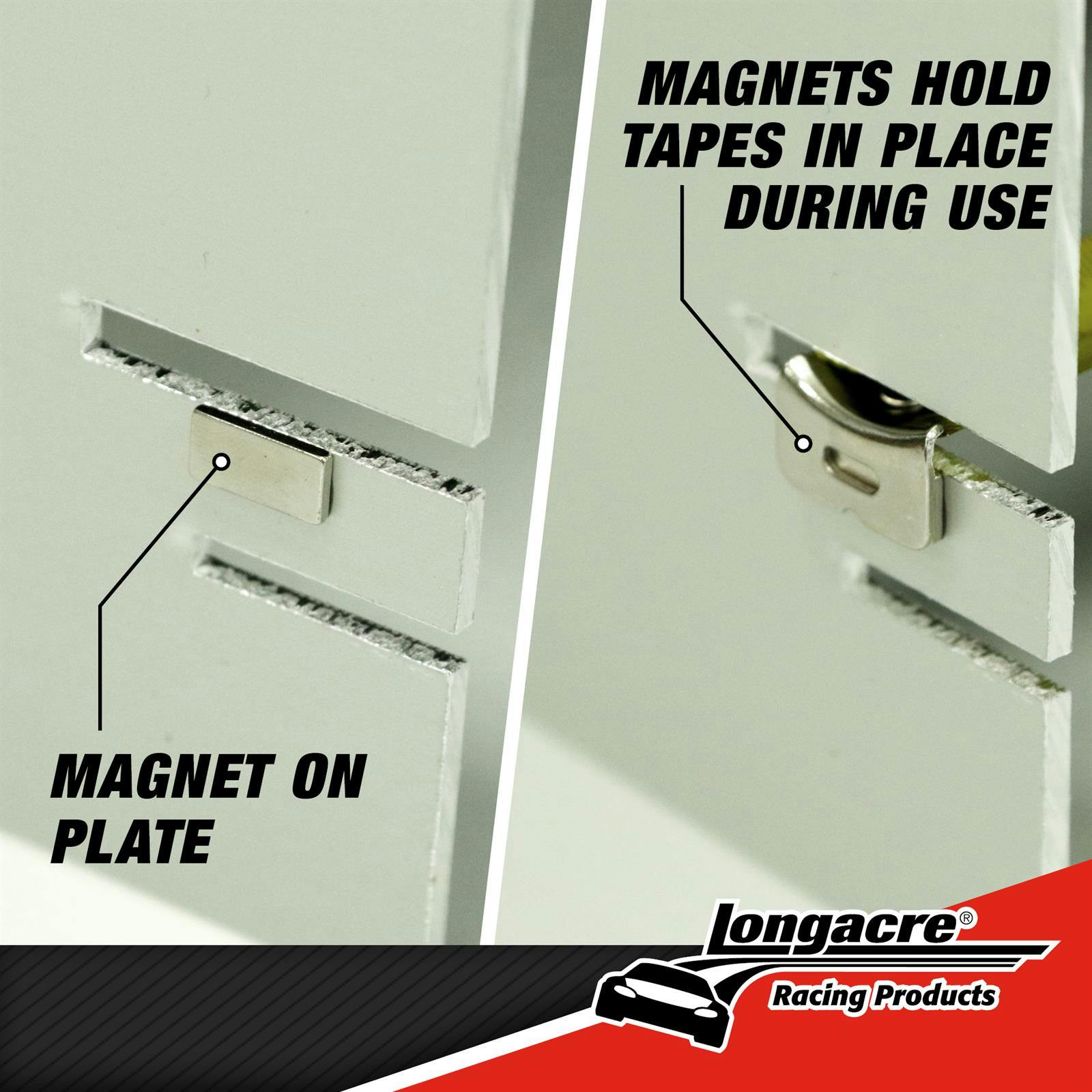

Longacre 79500 Toe Plates

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a set.

Details

Reviews

Q & A

What's in the Box

Here's the quickest and simplest way to measure toe-in. Rest one of these plates against the tire on each side and use a tape measure.  Longacre toe plate comes with two tape measures.

  • Quickest and simplest way to measure toe-in
  • Rest one of these plates against the tire on each side and measure toe directly using the 2 tapes (included)
  • Formed design is rigid for accuracy and stays put against the tire
  • Dimensions: 23-1/2" x 9"

475-7950 Instuctions (PDF)

Notes

  1. Turn wheels to straight ahead: Should be done on level ground. Set caster & camber first.
  2. Lean plates up against wheels: Folded lip goes to the outside. Be sure the entire plate is up against the wheel.
  3. Measure front width, then rear: Use the slots for the tape measure. Subtract one from the other for toe. Larger front width means toe-out.

Customer Reviews

Rated 4.8 out of 5 by 4 reviewers.
RATING BREAKDOWN
4 reviews
5 Stars
3
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

bunebalz
Verified Purchaser
Blythe, CA, USA
Product Rating

Toe Plates

March 25, 2014
Only way to go after 5 years of borrowing or just measuring tire groves to tire groove this is nice!
Pros:
  • work well
Cons:
  • could be thicker they do flex some
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

DirtyDob40
Louisiana, USA
Product Rating

Set the toe fast

September 19, 2013
I use on my dirt track camaro every time I take it to the track. It's painless and easy!
Pros:
  • Easy To Use
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

mason
Verified Purchaser
austinville va.
Product Rating

works great

July 23, 2010
use this to set toe on utv and four wheeler much easier to set thanks
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Greg
Verified Purchaser
Perry Hall, MD
Product Rating

Works great

June 30, 2011
Have a T-bucket and the front end geometry is very important. Needed to adjust the toe-in and these plates made it very simple to measure the toe-in and adjustments. Worked like a charm.
Pros:
  • Easy To Use
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0
