Lokar EC-80FU Floor/Dash Mount Emergency Brake Cables

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Overall Length:
96.00
Color:
Black
Sold in Quantity:
Kit
MFG. Part #:
EC-80FU
Garage Sale:
No
Notes
Two 8.00' cut to fit lines. Used for drum or most GM disc brake calipers with E-brake lever built-in. Works with 491-8001U & 491-8001HT for under dash foot pedal or hand brake assemblies.
Lokar EC-80FU Floor/Dash Mount Emergency Brake CablesLokar EC-80FU Floor/Dash Mount Emergency Brake Cables

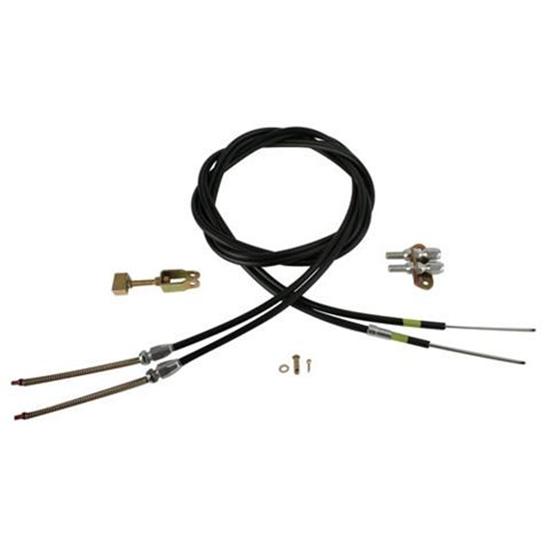

Lokar EC-80FU Floor/Dash Mount Emergency Brake Cables

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Cables are designed for use with Lokar Floor Mount & Under Dash Mount Emergency Hand Brakes. Kit comes equipped with quality one-piece aluminum adjusters and aluminum ferrule to eliminate fraying of stainless housing. Outer housing is designed with specially extruded liner for extended life of the cable. Stainless inner cable resists moisture.

Design allows rear end backing plate fittings to be removed without removing brake cables. Lokar cables also feature adjustable cable lock and clevis. Kit is complete with cable bracket and spacers. Kit includes two 8 foot black outer housings that “U-Cut-to-Fit".

See Application tab for model-specific information.

EC80FU E-Brake Cable Instructions (PDF)

Connector Cable Installation Instructions (PDF)

Application

Cables fit the following:

  • Chevy Drum
  • Ford Drum
  • Chrysler Drum
  • Dana Drum
  • Lincoln Versailles
  • 1988 & Later Corvette
  • Corvette '84-'87
  • Jag Rear-End w/ Wilwood Brakes
  • Wilwood Disc Stand Alone E-Brake Caliper
  • Baer Brakes
  • SSBC w/ Integrated E-Brake
  • SSBC w/ Stand Alone E-Brake Caliper

Not for Wilwood, Ford Explorer, or late model/internal show type Corvettes - see 49181FU for this application.
