Lokar TD-3700FM36 Stainless Steel 700R4 Firewall Mount Trans Dipstick

SAME DAY SHIPPING! Order within the next 4 hours 18 minutes and receive same day shipping

Specs
Material Type:
Stainless Steel
Overall Length:
36.00
Sold in Quantity:
Each
Finish:
Natural
Tube O.D.:
.75
MFG. Part #:
TD-3700FM36
Garage Sale:
No
Dipstick Mount Style:
Firewall Mount
Notes
Will work on 700R4, 4L60, 4L65, and 4L70 which all use the same mounting configuration. Includes fill adapter.
Lokar TD-3700FM36 Stainless Steel 700R4 Firewall Mount Trans DipstickLokar TD-3700FM36 Stainless Steel 700R4 Firewall Mount Trans Dipstick
Lokar TD-3700FM36 Stainless Steel 700R4 Firewall Mount Trans Dipstick

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

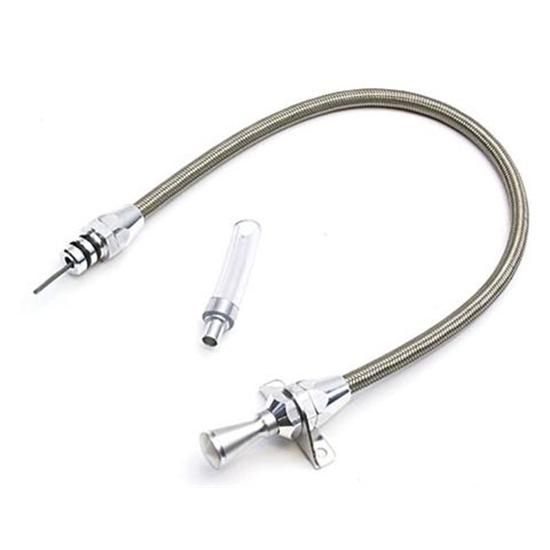

Braided stainless covered tubing with billet look handle and stainless hardware. Flexible design gives added mounting versatility.



You have flexibility with our Teflon-lined Flexible Braided Stainless 700R4 Transmission Dipstick. This R4 Kit comes complete with braided stainless outer housing and heat resistant E-Z to read flexible inner dipstick measuring cable. Inner cable is molded with appropriate trans fluid levels. Billet aluminum handle and billet aluminum fittings complement Lokar's Flexible Engine Dipsticks. Kit includes dipstick funnel adapter to assist in filling. Designed for "push in" style transmissions. Dipstick seals with double O-rings.  Firewall mount measures 24" in length.

This 700R4 dipstick kit comes complete with installation instructions.



Item Details

36"
