Lokar EC-81FU Floor Mount E-Brake Cables for Wilwood & Ford Explorer



                                                        Each Speedway floor mount emergency brake boot kit includes a black naugahyde boot, polished stainless base ring and stainless screws. Base ring is 6.25" x 2.5" outside diameter and 5.25" x 1.5" inside diameter.







This Lokar Floor Mount Emergency Hand Brake features a chrome plated steel e brake handle and is designed after the automotive industry standards. The ratchet cut gear plate and lock are heat treated for strength and safety. Special feature includes 4-point mounting capabilities for floor mount or side mounting for custom applications.
Comes complete with clevis for installation with Lokar Emergency Brake Cables, Lokar # EC-80FU, Speedway Motors # 491-80FU suggested below. Cables are sold separately.
Lokar Install Tip:  Every think about mounting the floor mount hand brake sideways in front of your seat?  You can!







Wilwood'sFDL Pro-Series rear disc kits provide a complete solution for popular GM 12-boltrear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.
E-brake cables sold separately. Fits GM 12-bolts with 2.81" offset and OE C-Clip axles. Does not support Special End or C-Clip Eliminator modifications.
835-1407141 Instructions (PDF)
Axle Flange Identification Chart


Click Here for Exploded Installation Specs









Lokar Clevis Kits adapt Lokar Emergency Brake Cable kits to Ford Explorer and Wilwood Explorer-style rear disc brakes with internal drum hubs (like our 910-31938). Also works with late Corvette rear disc brakes with internal shoe-type parking brake (requires some file-fitting).
Note: Clevis is included in kit 491-81FU. Ford Explorer rear disc brakes will need a pair of 916-41021 nuts to secure the cable ends to the thick cast iron OEM brackets.

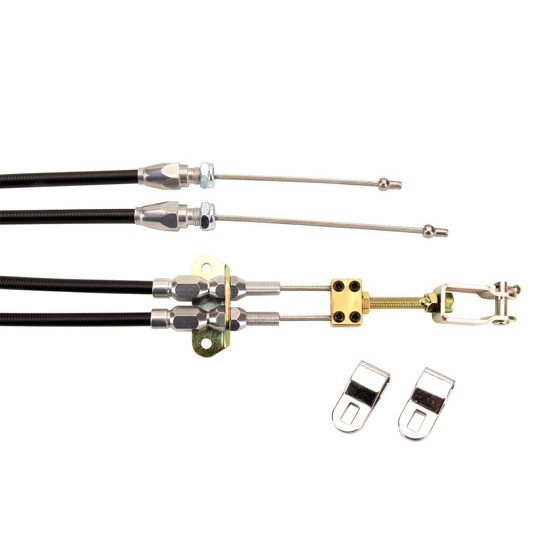

Kit is designed for use with Lokar's Floor Mount Emergency Hand Brake,  and in conjunction with Lokar's Connector Cables.  Kit comes equipped  with quality one-piece aluminum adjusters and aluminum ferrule to  eliminate fraying of stainless housing.  Outer housing is designed with  specially extruded liner for extended life of the cable. Stainless inner  cable resists moisture.  Design allows rear end backing plate fittings  to be removed without removing brake cables.  Lokar cables also feature  adjustable cable lock and clevis.  Kit is complete with cable bracket  and spacers.  Kit includes two 8 foot outer housings that "U-Cut-to-Fit"  and are available in stainless housing.  Application fits Wilwood Style Rear Disc w/ Internal Drum E-Brake.
For use with Lokar's Floor Mount Emergency Hand Brake
Quality one-piece aluminum adjusters and aluminum ferrule to  eliminate fraying of stainless housing
Designed with  specially extruded liner for extended life of the cable
Stainless inner  cable resists moisture
Kit is complete with cable bracket  and spacers and two 8 foot outer housings
Fits Wilwood Style Rear Disc w/ Internal Drum E-Brake
Emergency Brake Cable Application Chart (Link)
                                                                                                                                                              49181000 Installation Instructions (PDF)







This floor mount emergency hand brake is designed after the automotive  industry standard.  Lever has been designed with durability in mind and features black powder coated  steel construction.  Ratchet cut gear plate and lock are heat treated for  strength and safety. Special feature includes 4-point mounting capabilities for floor  mount or side mounting for personal applications.  Comes complete with  clevis for installation with Lokar Emergency Brake Cables, Lokar # EC-80FU, Speedway Motors # 491-80FU suggested below.
 Cables are  sold separately. E brake handle measures 10" from end-to-end.
Lokar Install Tip:  Ever think about mounting the floor mount hand brake sideways in front of your seat?  You can!







Lokar Hand Brake Boots include a black Naugahyde boot, billet aluminum ring with ball milled edge, and stainless screws.

It also includes a foam rubber seal to eliminate air flow from the floor  through the boot.

All boots hug the shifter lever and there are no unsightly pull ties or laces.







Lokar Shifter and Hand Brake Boots are black Naugahyde and all sets   include a boot, billet aluminum ring  with ball-milled edge and  stainless screws.  Billet aluminum rings are  available in black  anodized.

Lokar's Classic Shifter Boot  is designed with a polished  stainless bezel on top of the boot which  fits over the shifter lever.   It also includes a foam rubber seal to  eliminate air flow from the floor  through the boot.  All boots hug the  shifter lever and there are no unsightly pull ties or laces.
Black Naugahyde construction
Rings available in black anodized
Foam rubber seal to eliminate air flow from the floor  through the boot
Includes:
boot
billet aluminum ring  with ball-milled edge
stainless screws
Boot Ring Dimension Chart (Link)







Kit is designed for use with Lokar's Floor Mount Emergency Hand  Brake,  and in conjunction with Lokar's Connector Cables.  Kit comes  equipped  with quality one-piece aluminum adjusters and aluminum ferrule  to  eliminate fraying of stainless housing.  Outer housing is designed  with  specially extruded liner for extended life of the cable. Stainless  inner  cable resists moisture.  Design allows rear end backing plate  fittings  to be removed without removing brake cables.  Lokar cables  also feature  adjustable cable lock and clevis.  Kit is complete with  cable bracket  and spacers.  Kit includes two 8 foot outer housings that  "U-Cut-to-Fit"  and are available in stainless housing.  Application  fits Ford Explorer Style Rear Disc w/ Internal Drum E-Brake.
For use with Lokar's Floor Mount Emergency Hand Brake
Quality one-piece aluminum adjusters and aluminum ferrule to  eliminate fraying of stainless housing
Designed with  specially extruded liner for extended life of the cable
Stainless inner  cable resists moisture
Kit is complete with cable bracket  and spacers and two 8 foot outer housings
Fits Ford Explorer Style Rear Disc  w/ Internal Drum E-Brake
Clevises included
Emergency Brake Cable Application Chart (Link)
491081001 Installation Instructions (PDF)
