Lightweight Biscuit Bar

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Zinc
Hole Diameter:
.75
Extended Length:
22.00
Compressed Length:
20.00
Bushing Length:
1.38
Bushing Diameter:
2.13
Sleeve Length:
10.00
Garage Sale:
No
Notes
If additional length is needed sleeve can be replaced with a longer one (steel: 910-34234, aluminum: 910-34134).

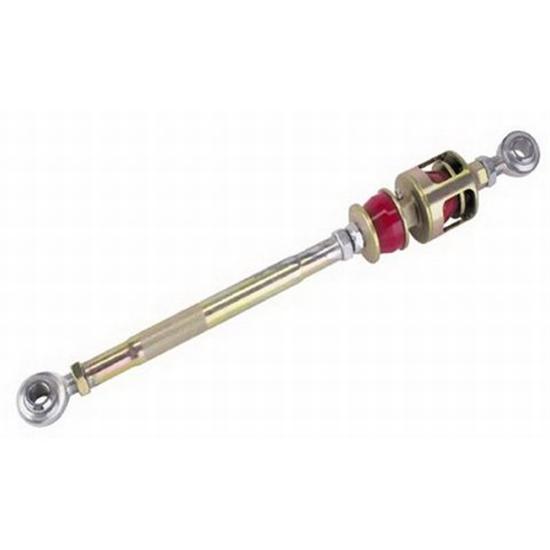

Lightweight Biscuit Bar

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

This IMCA approved lightweight biscuit pull bar comes with an 10" sleeve that gives you a 22" center to center installed length. If a different length is required, simply order different sleeve listed.

Replacement rubber bushings are available in multiple durometer ratings (red "medium" rubbers supplied with bar). Two rubber bushings needed per bar.

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Del
Cedar Rapids, IA
Product Rating

IMCA Biscuit Bar

May 22, 2010
[...]
Pros:
  • Works Great
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
91045509

Product Q&A

2 questions : 2 answers

1 answers

Where does this get installed?

TheGambler
January 24, 2014

Where does this get installed?

Answers

January 24, 2014
EricM
These are used on oval track cars and are mounted centered above the rear end. It will cushion the application of torque to the rear tires and promote traction.
1 answers

what are the ratings on the different color bushings

May 26, 2011

what are the ratings on the different color bushings

Answers

June 02, 2011
Mike
The black is considered hard #88, the red is medium #73, and the blue is soft #60.
Page 1 of 1

You may also be interested in:

Swedged Steel Tube, 3/4 Inch Thread
(Part #91034234)
                        Each 3/4" thread steel swedged sleeve has a 1" O.D. tube, 0.095 wall, and 3/4" RH and LH fine threads. Available in 1" increments from 9" to 30" and 37". IMCA appproved. Sold each.

Aluminum Tie Rod Sleeve, 3/4 Inch Thread
(Part #91034134)
                        Each 3/4" Tie Rod Sleeve is made out of 6061-T6 aluminum. 1" O.D. 3/4" RH and LH threads. All tubes have wrench flats and are bright gold anodized. Available in 1" increments from 8" to 27". Sold each.

Biscuit Bar Replacement Rubber Bushings
(Part #91045515)


Replacement rubber bushings are available in multiple durometer ratings. Two rubber bushings needed per bar.

  • Blue = Soft
  • Red = Medium
  • Black = Hard
Lightweight Spring and Puck Pull Bar
(Part #91045601)
                        These spring and puck pull bars utilize a soft, 4”spring (sold separate) to initiate traction then amplify it as pucks engage.  They feature a smaller size, which reduces unsprung weight and helps with clearance issues. This innovative puck and washer system creates the most tunable, longest lasting pull bar on the market. Includes pull bar housing, (2) 0 deg. washers, (4) 15 deg. washers, and (3) 90 durometer pucks.
  • Utilizes a soft, 4”spring (sold separately) to initiate traction then amplify it as pucks engage
  • Smaller size reduces unsprung weight and helps with clearance issues
  • Innovative puck and washer system creates the most tunable, longest lasting pull bar on the market
  • Washers available in 0, 5, 10, and 15 degree tapers
  • Pucks available in 60, 70, 80, or 90 durometers
  • Washers and pucks will retro fit most any 3/4” shaft pull bar
  • Includes pull bar housing, (2) 0 deg. washers, (4) 15 deg. washers, and (3) 90 durometer pucks
Lightweight Puck Pull Bar
(Part #91045621)
                        These puck pull bars are the only bar on the market that can be with single, double, or triple stage compression.  They utilize pucks to initiate traction then amplify it as bar locks out and more pucks engage.  This innovative puck and washer system creates the most tunable, longest lasting pull bar on the market.
  • Only bar on the market that can be with single, double, or triple stage compression
  • Utilizes pucks to initiate traction then amplify it as bar locks out and more pucks engage
  • Reduces unsprung weight up to 7 lbs. over other triple stage bars and helps with clearance issues
  • Innovative puck and washer system creates the most tunable, longest lasting pull bar on the market
  • Washers available in 0, 5, 10, and 15 degree tapers
  • Pucks available in 60, 70, 80, or 90 durometers
  • Washers and pucks will retro fit most any 3/4” shaft pull bar
  • Includes pull bar housing
  • Includes (2) 0 deg. washers & (6) 15 deg. washers
  • Includes (5) 90 durometer pucks & (2) 80 durometer pucks
