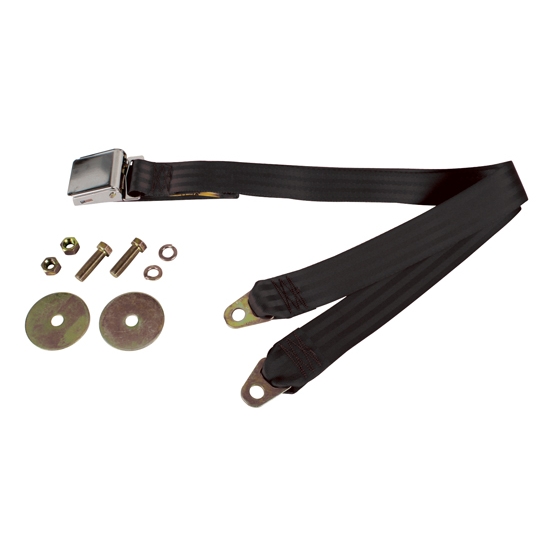

Lift Latch Lap Belt

Specs
Overall Width:
1.88
Overall Length:
74.00
Color:
-
Sold in Quantity:
Each
Thread Pitch:
7/16"-20
Hardware Included:
Yes
SFI Rated:
No
Seat Belt Buckle Type:
Latch & Link
Seat Belt Mounting Style:
Bolt In
MFG. Part #:
-
Bolt Length:
1.50
Garage Sale:
No
Notes
Includes two 2.50" O.D. washers, bolts, and nuts.
Lift Latch Lap Belt
Lift Latch Lap Belt
Lift Latch Lap Belt
Lift Latch Lap Belt
Lift Latch Lap Belt
Lift Latch Lap Belt
Lift Latch Lap Belt

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Seat belts in six popular colors. Chrome lift latch with standard belt.  Red, black, maroon, gray, dark blue, or tan.  Lap belts adjustable from 60" to 74". DOT approved.

Includes 1.5" long mounting bolts and hardware. These are 1-13/16" wide.

Specs

  • Hardware includes:
    • 7/16"-20 x 1.5" bolts
    • 2.5" O.D. washers
  • Sewn side length of belt strap is 32" eye to buckle
  • Adjuster side is 38" of strap length eye to end of strap
  • Provides 32"+ of workable length

Customer Reviews

Rated 4.7 out of 5 by 20 reviewers.
RATING BREAKDOWN
20 reviews
5 Stars
14
4 Stars
5
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Krag
Verified Purchaser
Colorado, USA
Product Rating

Lap belt

October 01, 2014
Works great it's very similar to an airplane seat belt. The latch works the same plenty of length, The fixed buckle (male) end may be too long in a real short application. It's about 26". Inexpensive solution appears to have good quality.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Dude
Kennewick, WA
Product Rating

Belts have the just after WWII look.

August 29, 2010
Great for updating an old school car that needs seat belts and requires the look of belts that would have been used in a WWII fighter plane.
Pros:
  • Perfect for my 53 Ford
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Hotrod32
Verified Purchaser
Ocala, FL
Product Rating

Great looking belts

August 05, 2012
Like the color and appearance. Installed in a fiberglass body car and the attachment bolt was too short. Bolt needed to be 1/2 inch longer.
Pros:
  • Easy To Install
  • Attractive Design
  • Functional
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

roddin 41
Verified Purchaser
Brockport, New York
Product Rating

classic & functional

August 19, 2012
Just as I remembered. A basic lap belt that is functional in the old classic design. Perfect for adding seat belts to your classic car/truck that never was equipped from the factory.
Pros:
  • Easy To Install
  • Lightweight
  • Functional
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

28RPU6
East Texas
Product Rating

Everything you need.

August 28, 2010
Every thing is included except the wrenches to tighten the bolts.
Pros:
  • Priced right
  • Everything is included
  • Simple
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Fast Eddie1
McKinney, Texas
Product Rating

This product works

August 28, 2010
I installed these on my 38 Chevy PU. The design is very good and they look like a factory install. I would use this product again
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Barn Find T
Verified Purchaser
Colorado
Product Rating

Nice Belts

August 01, 2010
Used these in a 50 Ford with Mustang Buckets mounted to the floor. They are a little long, I had to mount them a little farther back than I would have liked to.
Pros:
  • Nice chrome
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

The G Man
Cougar Mt., WA
Product Rating

Lift Latch Seat Belts

March 07, 2010
The Lift Latch Seat Belt retains that "Old School look" I want in my roadster.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

guzzi rider
Verified Purchaser
new hampshire
Product Rating

easy install and good old school look

July 26, 2010
[...]fair price
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

truck_rat
Verified Purchaser
tulsa
Product Rating

my second set

January 26, 2012
i cant drive my old cars without my wife and kids and that means putting in seatbelts for the kids. these install easy with included hardware and looks stylish as well as being very functional. i buy some more everytime i get another car.
Pros:
  • Attractive Design
  • Easy To Install
  • Lightweight
  • Functional
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 2
91072065

Product Q&A

3 questions : 6 answers

3 answers

Is this for one belt or a pair of belts?

Big Dog
Grove OK
December 31, 2011

Is this for one belt or a pair of belts?

Answers

October 10, 2014
goosefoot
a pair
October 02, 2014
Krag
one complete belt
January 02, 2012
Megan
Currently, this is for one single belt. If you would need a pair you would need to order two belts.
1 answers

would these work on a fiberglass 1923 T-bucket? If so where would you have to attach them to?

Tulsa, OK
September 23, 2011

would these work on a fiberglass 1923 T-bucket? If so where would you have to attach them to?

Answers

September 26, 2011
John
These seat belts can be used on almost any applications but need to be secured to the strongest portion of the vehicle which in most cases is the frame. Simply bolting through a plywood floor may not satisfactorily contain the occupants in severe occurrences. Welding and fabrication of brackets may be required.
2 answers

How wide is this belt? Thank you.

Tulsa, OK
April 29, 2011

How wide is this belt? Thank you.

Answers

October 02, 2014
Krag
13/4 inch
May 10, 2011
Seth
These are 1-13/16" wide.
Page 1 of 1
