Ladder Bar Kit - 42 Inch

SAME DAY SHIPPING! Order within the next 5 hours 41 minutes and receive same day shipping

Free Shipping Free Shipping
Ladder Bar Kit - 42 Inch
Ladder Bar Kit - 42 Inch
Ladder Bar Kit - 42 Inch

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

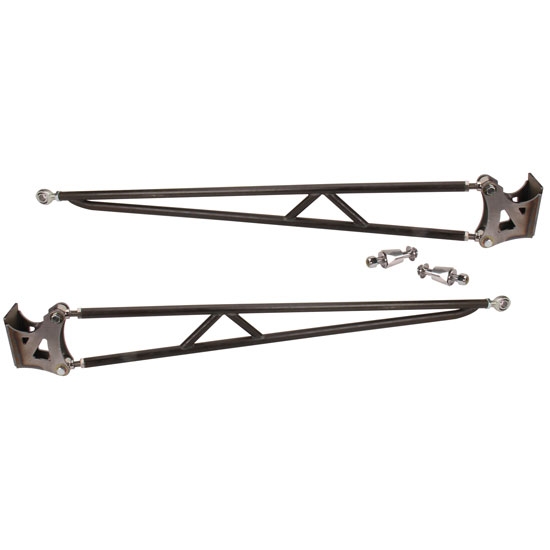

Our ladder bar kit includes one pair of 42" heavy wall ladder bars, 3/4" heavy duty front rod end and jam nuts, stainless steel 11" degree 5/8" rear rod ends and jam nut,  lower coil over mounts and rear axle brackets. Welding and fitting required.

916-4511 Instructions (pdf)

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

holyx41
Verified Purchaser
Ohio

Quality Pieces

March 01, 2015
I am using these ladder bars on my 41 Willys project. The bars have the right look and are nicely tig welded.The brackets are well designed and include adjustable mounting for the shocks.
Pros:
  • two thumbs up
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 4 answers

1 answers

With a regular Model A spring in stock frame is a 4-bar set-up or ladder bars better? Also, is a panhard bar necesary with either?

paladin138
ok
June 29, 2014

With a regular Model A spring in stock frame is a 4-bar set-up or ladder bars better? Also, is a panhard bar necesary with either?

Answers

July 01, 2014
EricM
Either the four bar or the standard ladder bar can benefit from a panhard bar to eliminate side to side movement. If you run a parallel 4 bar then a panhard bar is a must. If you use a triangulated 4 bar suspension then a panhard bar is not necessary. As far as one over the other the choice is basically personal preference. The differences in ride characteristics are small.
1 answers

Is a panhard bar a good idea with ladder bars? I have ladder bars with original buggy spring

joes32
Taylorsville, UT, USA
May 10, 2014

Is a panhard bar a good idea with ladder bars? I have ladder bars with original buggy spring

Answers

May 12, 2014
EricM
This ladder bar set makes use of heim ends both front and back which allow for some side to side movement. If you had regular rod ends with urethane bushings then a panhard bar is required. With the heim ends it is not required but for total control we still suggest a panhard bar to eliminate the side to side movement.
1 answers

Ladder bar axle bracket bolt width. What is the distance between the rear axle bracket bolts (where the ladder bars bolt to the axle bracket)? 5 1/2" on center?

Hendrix
San Francisco Bay Area, CA, USA
November 15, 2013

Ladder bar axle bracket bolt width. What is the distance between the rear axle bracket bolts (where the ladder bars bolt to the axle bracket)? 5 1/2" on center?

Answers

November 18, 2013
EricM
Yes the hole spacing on the axle bracket is 5 1/2" center to center.
1 answers

What axle tube width is the bracket setup for. is 42" from the front mounting center to axle center or is that the length of just the ladder bar.

August 09, 2011

What axle tube width is the bracket setup for. is 42" from the front mounting center to axle center or is that the length of just the ladder bar.

Answers

August 11, 2011
John
The ladder bars are 42” plus the heim ends and the brackets at the housing. Approximately 6” add for front end at center of heim to center or rear end housing to compensate for the heim ends and brackets.
Page 1 of 1
