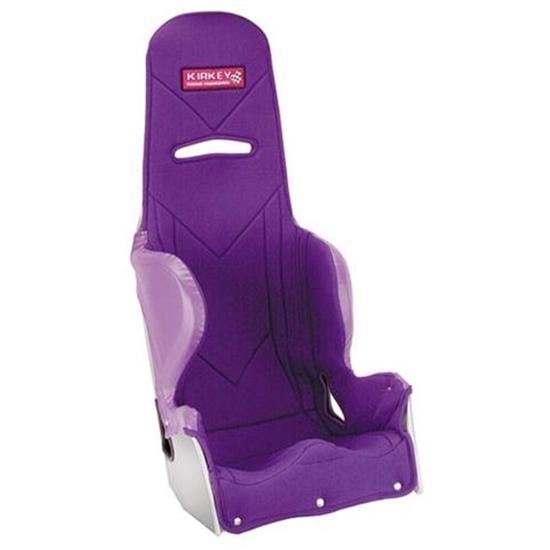

Kirkey 36 Series Intermediate Racing Seats, 16 Inch Wide

SAME DAY SHIPPING! Order within the next 1 hour 37 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Overall Height:
35.50
Overall Width:
17.50
Weight:
14.50
Color:
-
Sold in Quantity:
Kit
Depth:
25.50
Hardware Included:
No
Material Thickness:
.13
Inside Width:
16.00
Inside Height:
25.50
Garage Sale:
No
Kirkey 36 Series Intermediate Racing Seats, 16 Inch WideKirkey 36 Series Intermediate Racing Seats, 16 Inch WideKirkey 36 Series Intermediate Racing Seats, 16 Inch WideKirkey 36 Series Intermediate Racing Seats, 16 Inch Wide
Kirkey 36 Series Intermediate Racing Seats, 16 Inch Wide

Click image to enlarge

Speeday Motors Logo
X
Kirkey 36 Series Intermediate Racing Seats, 16 Inch Wide

Details

Reviews

Q & A

What's in the Box

Kirkey's Intermediate 20° Layback seats are designed especially for dirt and asphalt limited late models and all IMCA type Modifieds. The Intermediate seat is a great value for the professional and amateur alike who demands the best in safety and comfort. Made from .125" thick 5052 grade aluminum, these seats are TIG welded outside and MIG welded inside for added strength. Contoured high density foam bottom provides complete leg and inner thigh support.

  • TIG welded .125" thick 5052 grade aluminum
  • MIG welded inside for added strength
  • Offset aluminum extrusion around perimeter of seat for added rigidity
  • Progressive rib bead adds extra strength
  • Upholstery is double stitched around belt openings and all stress points
  • Multi-position lap belt openings for easy mounting
  • Submarine belt opening is standard
  • Contoured high density foam bottom provides complete leg and inner thigh support
  • High density foam on rib supports for added comfort

Available in red, blue, black and purple.

Kirkey 36 Series Dimensions (GIF)

910-70140 Instructions (PDF)
