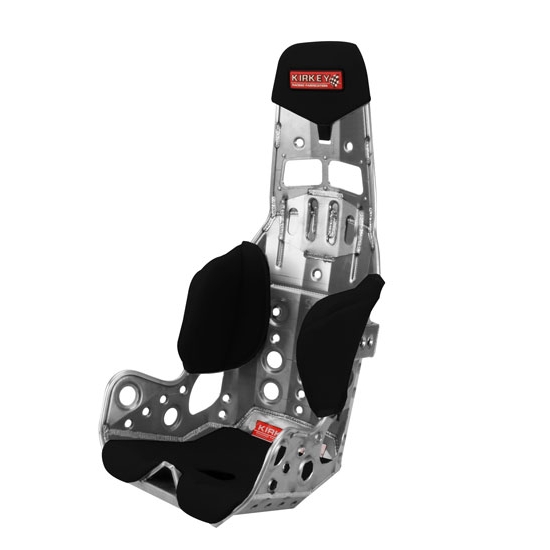

Kirkey 58 Series 20 Degree Lightweight Seat w/ Upholstery, 15 Inch

Specs
Material Type:
Aluminum
Overall Height:
35.50
Overall Width:
17.00
Weight:
10.45
Color:
-
Sold in Quantity:
Kit
Depth:
26.00
Hardware Included:
No
Material Thickness:
.08
Inside Width:
15.00
Inside Height:
26.50
Garage Sale:
No
Kirkey 58 Series 20 Degree Lightweight Seat w/ Upholstery, 15 InchKirkey 58 Series 20 Degree Lightweight Seat w/ Upholstery, 15 InchKirkey 58 Series 20 Degree Lightweight Seat w/ Upholstery, 15 InchKirkey 58 Series 20 Degree Lightweight Seat w/ Upholstery, 15 InchKirkey 58 Series 20 Degree Lightweight Seat w/ Upholstery, 15 InchKirkey 58 Series 20 Degree Lightweight Seat w/ Upholstery, 15 Inch
Kirkey 58 Series 20 Degree Lightweight Seat w/ Upholstery, 15 Inch
Kirkey 58 Series 20 Degree Lightweight Seat w/ Upholstery, 15 Inch

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Kirkey's lightweight double rib support 20° layback seat is designed for the racer who wants to save weight but demands the ultimate in comfort and safety.

  • Strategically placed flared openings save weight and add strength
  • .080" thick 5052 grade aluminum is TIG welded outside and MIG welded on inside for added strength
  • Contoured sides support hips and thighs along complete side of seat
  • Seat bottom shaped at rear to support tailbone and lower back
  • Center leg support holds inner thighs under heavy cornering forces
  • Aluminum extrusion around perimeter of seat adds strenght and safety
  • Edge of seat is stepped and extrusion is offset to outside so inside of seat is completely smooth
  • Seat back is double crossbroke for added strength and safety
  • Front of seat is raised for thigh support
  • Seat bottom has been extended for extra leg and thigh support
  • Rib supports are reinforced with welded, lightweight flared band
  • Progressive rib bead added for extra strength
  • Double shoulder belt and sub belt openings standard
  • Machined plate added to shoulder belt openings for increased strength
  • Full covers or lightweight four piece modulart design available
  • Extra thick, high density foam on rib supports for added comfort and safety
  • Four piece upholstery available in red, blue, black

Kirkey 58 Series Dimensions (GIF)

910-70135 Instructions (PDF)

Item Details

15" Wide
