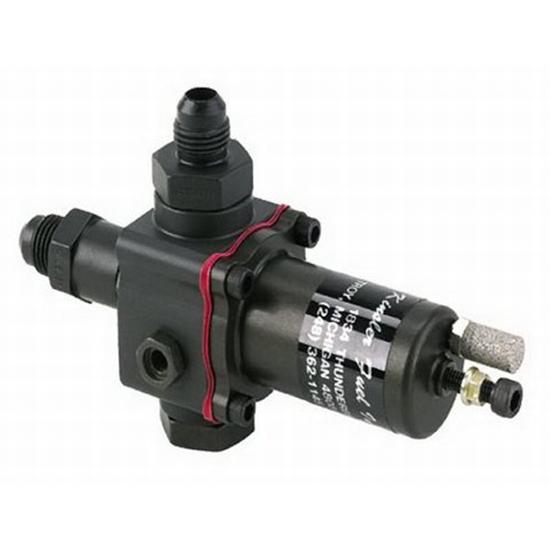

Kinsler 3971 K140 Ultimate Hi-Speed Bypass, 57-123 PSI Adjustable

SAME DAY SHIPPING! Most orders ship within 24 hours.

Kinsler 3971 K140 Ultimate Hi-Speed Bypass, 57-123 PSI Adjustable
Kinsler 3971 K140 Ultimate Hi-Speed Bypass, 57-123 PSI Adjustable

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

If you want the best high-speed bypass for your fuel injection system, look no further than this Kinsler model K-140. It’s adjustable from 57 to 123 lbs. of pressure and has a proven track record in winning race cars. Used as a return bypass on sprint cars or other high end fuel injection-type cars.

  • Externally adjustable from 57 to 123 psi
  • Hi flow capacity and light weight
  • Accurate pressure control
  • Methanol and gasoline compatible
  • Serviceable in the field
  • Hard anodized finish
  • Includes -6 AN inlet fitting
  • Length: 5”
  • Height: 4”

Warranties

  • Warranty by Kinsler
