King Chrome Small Block Chevy 1969-86 Long Water Pump

Specs
Material Type:
Steel
Overall Length:
10.75
Sold in Quantity:
Each
Finish:
Chrome
Shaft Diameter:
0.63
Mounted Length:
7.38
Shaft Length:
0.44
Hose ID:
1.80
Gasket(s) Included:
Yes
Heater Inlet Size:
0.78"
Water Pump Style:
Long
Notes
Clearance from back of pump to engine block mount is 1.50" Fits '69-'86 Chevy 350 & 400.
King Chrome Small Block Chevy 1969-86 Long Water PumpKing Chrome Small Block Chevy 1969-86 Long Water PumpKing Chrome Small Block Chevy 1969-86 Long Water PumpKing Chrome Small Block Chevy 1969-86 Long Water PumpKing Chrome Small Block Chevy 1969-86 Long Water Pump

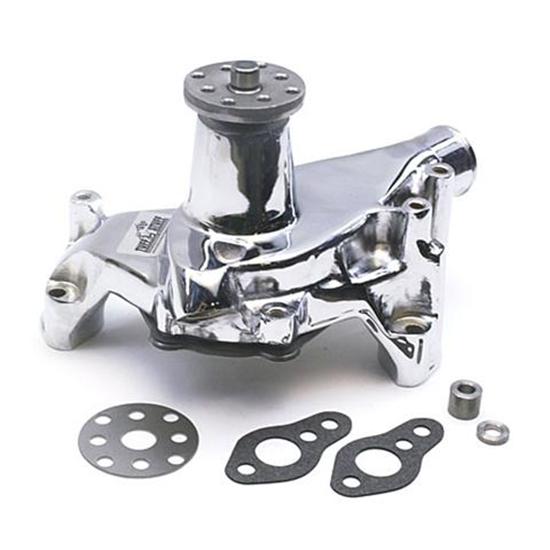

King Chrome Small Block Chevy 1969-86 Long Water Pump

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

King Chrome standard flow, "long leg" style water pump designed for 1969-86 small block Chevy (SBC) V8s. Made from OEM castings, King Chrome housings are hand polished to a higher standard before being triple chrome-plated for a show-quality finish. Housings are then assembled using all NEW components.

  • Hand polished and triple chrome plated
  • "Long" style pump for 1969-85 engines
  • 6-15/16" from block surface to face of pulley flange
  • Drilled & tapped for factory accessories

Learn about the differences between "short" and "long" style Chevy water pumps by reading our tech article, SBC - Short vs Long Water Pump

Notes

  • Has (4) accessory threaded mounting holes to accept the factory brackets
  • Includes (2) spacers for various applications when mounting the brackets
  • One hole is directly below the lower mounting hole to the block on the drivers side
  • 2 holes are on the passenger side—one directly below the lower mounting hole to the block and the other is between the two mounting holes to the block
  • The third hole accessory mounting hole is at approximately 11:30 when looking at it from the front and at about the same front to rear distance as the heater hose nipple.

Specs

  • Has (4) accessory threaded mounting holes to accept the factory brackets
  • Includes (2) spacers for various applications when mounting the brackets
  • One hole is directly below the lower mounting hole to the block on the drivers side
  • 2 holes are on the passenger side—one directly below the lower mounting hole to the block and the other is between the two mounting holes to the block
  • The third hole accessory mounting hole is at approximately 11:30 when looking at it from the front and at about the same front to rear distance as the heater hose nipple.
