King Chrome 1965-1981 Ford Alternator, 60 Amp

SAME DAY SHIPPING! Order within the next 2 hours 57 minutes and receive same day shipping

Specs
Sold in Quantity:
Each
Finish:
Chrome
Amperage:
60
Garage Sale:
No
King Chrome 1965-1981 Ford Alternator, 60 Amp
King Chrome 1965-1981 Ford Alternator, 60 Amp
King Chrome 1965-1981 Ford Alternator, 60 Amp
King Chrome 1965-1981 Ford Alternator, 60 Amp
King Chrome 1965-1981 Ford Alternator, 60 Amp
King Chrome 1965-1981 Ford Alternator, 60 Amp

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

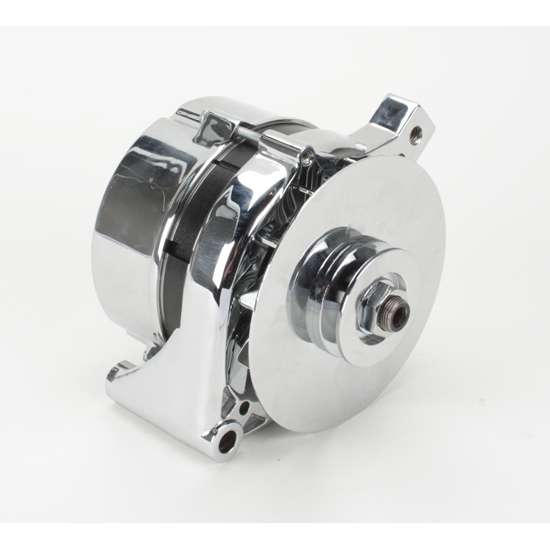

Based on the Ford 1G "small case" alternators, these 60-amp King Chrome alternators are the perfect replacement alternators for most 1965-1981 Ford engines. King Chrome alternator housings are hand polished to a high luster prior to applying the show-quality triple chrome finish. King Chrome alternators feature 100% all-new components (not rebuilt).



  • Ford 1G "small case" style alternator
  • Hand polished, triple chrome plated O.E. style case
  • Direct replacement for most 1965-81 Ford engines
  • 60 amp max output
  • Excellent idle output
  • 100% brand new components



Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

Wiring diagram for the 60amp alternator Fitting to a Hot Rod/ COE truck with a small block 302 Ford engine. I ahve fitted one of your 60amp units, but would like to make it a one wire connection. Have you got any wiring details please.

CDT23
United Kingdom
December 18, 2014

Wiring diagram for the 60amp alternator Fitting to a Hot Rod/ COE truck with a small block 302 Ford engine. I ahve fitted one of your 60amp units, but would like to make it a one wire connection. Have you got any wiring details please.

Answers

December 18, 2014
EricM
It is not possible to convert this to a 1 wire alternator. For a one wire see alternator part number 91067156 or 9107068. This alternator must be used with an external regulator. It will need to be wired as follows: - Terminal with red grommet connects to "A" terminal on regulator. - Terminal with brown grommet (next to rear bearing) connects to "F" terminal on regulator. - Terminal with black grommet connects to "S" terminal on regulator. - The terminal with no grommet is a case ground. - The "I" terminal on the regulator (not supplied) will be connected to a 12 volt ignition source.
