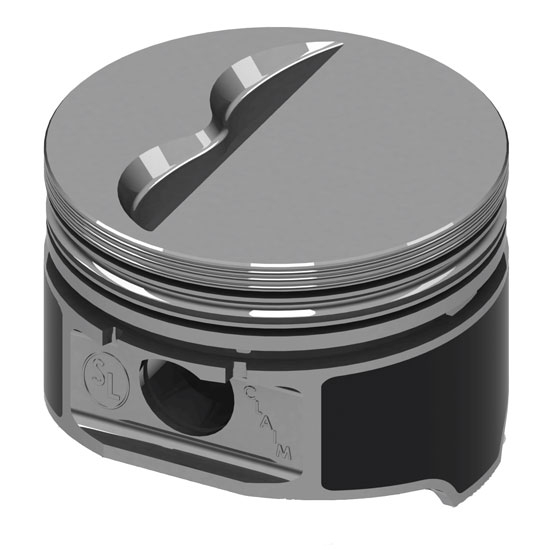

KB Claimer Chevy 377/400 Hypereutectic Pistons, Flat Top, 5.7/5.565 Rod

SAME DAY SHIPPING! Order within the next 3 hours 1 minute and receive same day shipping

Specs
Sold in Quantity:
Set
Piston Diameter:
-
Stroke:
3.48
Wrist Pin Diameter:
.9272
Piston Ring Style:
A
Connecting Rod Length:
5.700"
Piston Weight:
630
Piston Style:
Flat Top w/ 2 valve reliefs
Piston Material:
Hypereutectic Aluminum
Garage Sale:
No
Compression 58cc =:
12.6 : 1
Compression 64cc =:
10.9 : 1
Compression 76cc =:
9.6 : 1
KB Claimer Chevy 377/400 Hypereutectic Pistons, Flat Top, 5.7/5.565 Rod

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These Keith Black Claimer pistons (also known as economy pistons) feature coated skirts, wrist pin lockrings and T-5 hypereutectic construction. Can be used with either press fit or floating wrist pins (lockrings included).

Set of 8 for Chevy 377 c.i. (4.125" bore x 3.48" stroke x 5.7" rod) and Chevy 400 c.i. (4.125" bore x 3.75" stroke x 5.565"). Does not include piston ring set. Use 5/64", 5/64", 3/16" piston rings (Ring Style A).

KB Claimer Piston Chart (GIF)

Ring Style Chart (GIF)

Specs

  • Comp Height 5.565" Rod -  1.565
  • Comp Height 5.7" Rod -  1.433
  • Pin Diameter -  0.9272

Item Details

(377) C/R 64cc=10.9, 76cc=9.6
(400) C/R 58cc=12.6, 64cc=11.7, 76cc=10.3
Piston/Pin Weight: 630 g
Rod Length: 5.7(377), 5.565(400)

Customer Reviews

This product has no reviews.

Product Q&A

2 questions : 2 answers

1 answers

do these pistons come in std size

1930ford
penhook va usa
November 21, 2014

do these pistons come in std size

Answers

November 24, 2014
EricM
Sorry we do not offer this piston for a standard bore size.
1 answers

what is the difference in a claimer vs chevy 350 pistons ?

befrog
Florida, USA
June 01, 2014

what is the difference in a claimer vs chevy 350 pistons ?

Answers

June 02, 2014
EricM
The KB Claimer series is a low cost Keith Black Hypereutectic piston. The Keith Black Signature Series is their high end hypereutectic piston.
