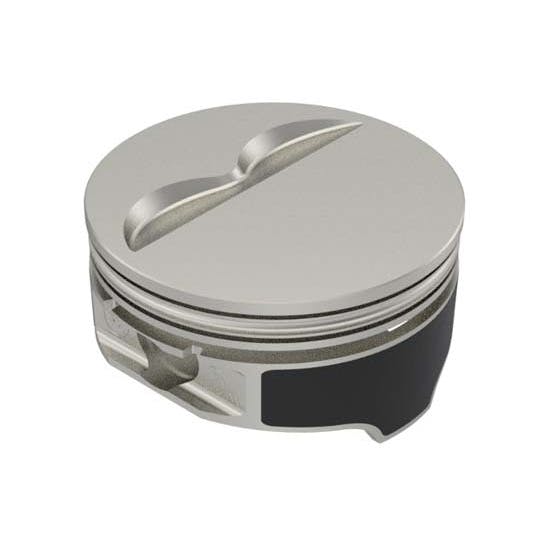

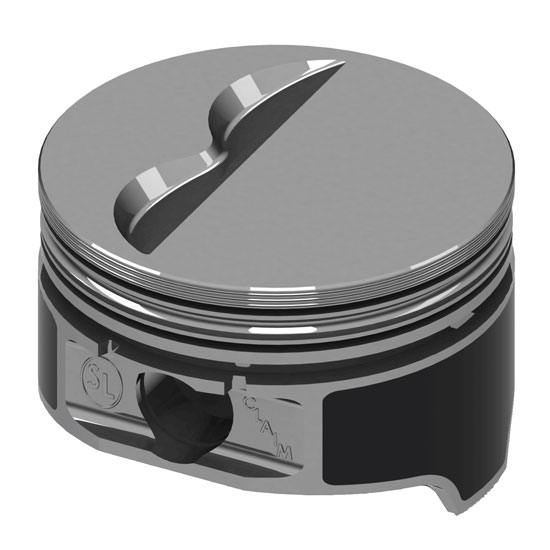

KB Claimer Chevy 400 Hypereutectic Pistons, Flat Top, 5.7 Rod

SAME DAY SHIPPING! Order within the next 11 hours 34 minutes and receive same day shipping

Specs
Sold in Quantity:
Set
Piston Diameter:
-
Stroke:
3.75
Wrist Pin Diameter:
.9272
Piston Ring Style:
A
Connecting Rod Length:
5.700"
Piston Weight:
624
Piston Style:
Flat Top w/ 2 valve reliefs
Piston Material:
Hypereutectic Aluminum
Garage Sale:
No
Compression 58cc =:
12.6 : 1
Compression 64cc =:
11.7 : 1
Compression 76cc =:
10.3 : 1
KB Claimer Chevy 400 Hypereutectic Pistons, Flat Top, 5.7 Rod
KB Claimer Chevy 400 Hypereutectic Pistons, Flat Top, 5.7 Rod

Click image to enlarge

Speeday Motors Logo
X
KB Claimer Chevy 400 Hypereutectic Pistons, Flat Top, 5.7 Rod

Details

Reviews

Q & A

What's in the Box

These Keith Black Claimer pistons (also known as economy pistons) feature coated skirts, wrist pin lockrings and T-5 hypereutectic construction. Can be used with either press fit or floating wrist pins (lockrings included).

Set of 8 for Chevy 400 c.i. (4.125" bore x 3.75" stroke). Does not include piston ring set. Use 5/64", 5/64", 3/16" piston rings (Ring Style A).

KB Claimer Piston Chart (GIF)

Ring Style Chart (GIF)

Specs

  • Comp Height 5.565" Rod -  1.565
  • Comp Height 5.7" Rod -  1.433
  • Pin Diameter -  0.9272

Item Details

C/R 58cc=12.6, 64cc=11.7, 76cc=10.3
Piston/Pin Weight: 624 g
Rod Length: 5.7"
