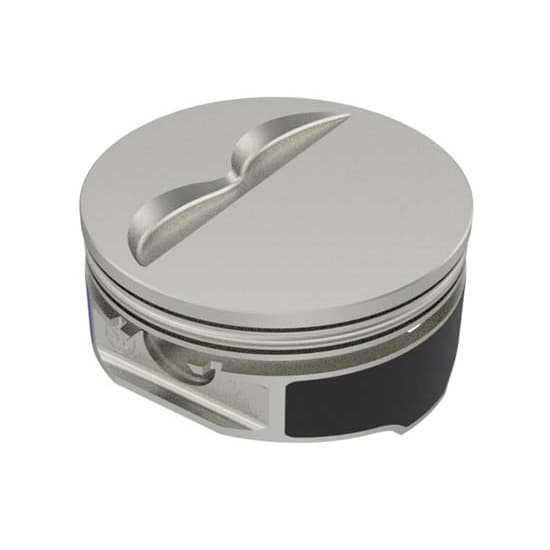

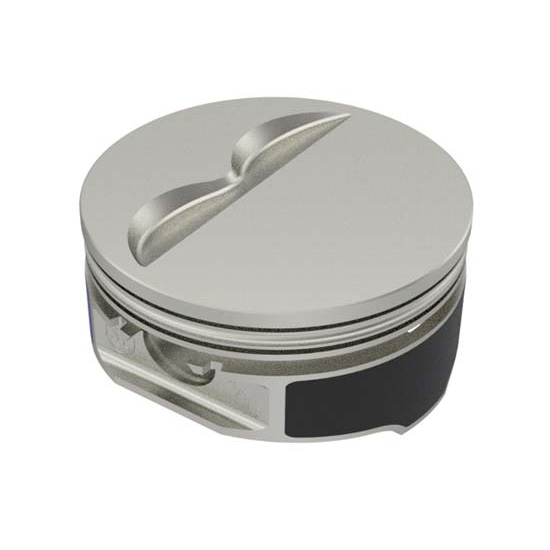

KB Claimer Chevy 350 Hypereutectic Pistons, Flat Top, 6.0 Rod

SAME DAY SHIPPING! Most orders ship within 24 hours.

Free Shipping Free Shipping
Specs
Sold in Quantity:
Set
Piston Ring Style:
A
Connecting Rod Length:
6.000"
Piston Material:
Hypereutectic Aluminum
Piston Style:
Flat Top w/ 2 valve reliefs
Compression 58cc =:
11.2 : 1
Compression 64cc =:
10.4 : 1
Compression 76cc =:
9.1 : 1
Garage Sale:
No
Piston Diameter:
-
Stroke:
3.48
Wrist Pin Diameter:
-
Piston Weight:
541
MFG. Part #:
-
Wrist Pin Weight:
541
KB Claimer Chevy 350 Hypereutectic Pistons, Flat Top, 6.0 Rod
KB Claimer Chevy 350 Hypereutectic Pistons, Flat Top, 6.0 Rod
KB Claimer Chevy 350 Hypereutectic Pistons, Flat Top, 6.0 Rod

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

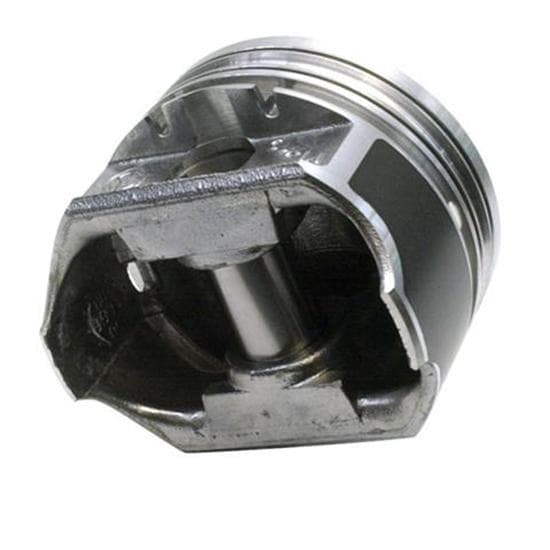

These Keith Black economy (also known as economy pistons) feature coated skirts, wrist pin lockrings and T-5 hypereutectic construction. Can be used with either press fit or floating wrist pins (lockrings included).

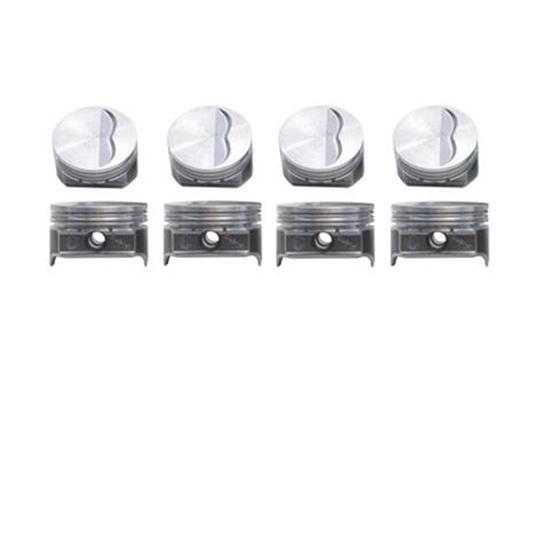

set of 8 for Chevy 350 c.i. (4.000" bore x 3.48" stroke). Does not include piston ring set. Use 5/64", 5/64", 3/16" piston rings (Ring Style A).

  • Comp Height 5.7" Rod -  1.565
  • Comp Height 6.0" Rod -  1.265
  • Pin Diameter -  0.9272

KB Claimer Piston Chart (GIF)

Ring Style Chart (GIF)

Item Details

C/R 58cc=11.2, 64cc=10.4, 76cc=9.1
Piston/Pin Weight: 541 g
Rod Length: 6.0"

Specs


Customer Reviews

This product has no reviews.

Product Q&A

0 questions : 0 answers

No questions have been asked.

You may also be interested in:

KB Claimer Chevy 350 Hypereutectic Pistons, Flat Top 4V, 5.7 Rod
(Part #4749901)


These Keith Black economy (also known as economy pistons) feature coated skirts, wrist pin lockrings and T-5 hypereutectic construction. Can be used with either press fit or floating wrist pins (lockrings included).

Set of 8 for Chevy 350 c.i. (4.000" bore x 3.48" stroke). Does not include piston ring set. Use 5/64", 5/64", 3/16" piston rings (Ring Style A).

KB Claimer Piston Chart (GIF)

Ring Style Chart (GIF)

Item Details

C/R 58cc=10.9, 64cc=10.2, 76cc=9.0
Piston/Pin Weight: 630 g
Rod Length: 5.7"
KB Claimer Chevy 350 Hypereutectic Pistons, Flat Top, 5.7 Rod
(Part #4749902)


These Keith Black economy (also known as economy pistons) feature coated skirts, wrist pin lockrings and T-5 hypereutectic construction. Can be used with either press fit or floating wrist pins (lockrings included).

Set of 8 for Chevy 350 c.i. (4.000" bore x 3.48" stroke). Does not include piston ring set. Use 5/64", 5/64", 3/16" piston rings (Ring Style A).

KB Claimer Piston Chart (GIF)

Ring Style Chart (GIF)

Item Details

C/R 58cc=10.7, 64cc=10.4, 76cc=9.1
Piston/Pin Weight:614 g
Rod Length: 5.7"
KB Claimer Chevy 350 Hypereutectic Pistons, .150 Dome, 5.7 Rod
(Part #4749904)


These Keith Black economy (also known as economy pistons) feature coated skirts, wrist pin lockrings and T-5 hypereutectic construction. Can be used with either press fit or floating wrist pins (lockrings included).

Set of 8 for Chevy 350 c.i. (4.000" bore x 3.48" stroke). Does not include piston ring set. Use 5/64", 5/64", 3/16" piston rings (Ring Style A).

KB Claimer Piston Chart (GIF)

Ring Style Chart (GIF)

Item Details

C/R 58cc=12.7, 64cc=11.6, 76cc=10.1
Piston/Pin Weight: 762 g
Rod Length: 5.7"
KB Claimer Chevy 350 Hypereutectic Pistons, .275 Dome, 5.7 Rod
(Part #4749905)


These Keith Black economy (also known as economy pistons) feature coated skirts, wrist pin lockrings and T-5 hypereutectic construction. Can be used with either press fit or floating wrist pins (lockrings included).

For Chevy 350 c.i. (4.000" bore x 3.48" stroke). Does not include piston ring set. Use 5/64", 5/64", 3/16" piston rings (Ring Style A).

KB Claimer Piston Chart (GIF)

Ring Style Chart (GIF)

Item Details

C/R 58cc=13.9, 64cc=12.7, 76cc=10.8
Piston/Pin Weight: 772 g
Rod Length: 5.7"
KB Claimer Chevy 350 Hypereutectic Pistons, .465 Dome, 5.7 Rod
(Part #4749903)


These Keith Black economy (also known as economy pistons) feature coated skirts, wrist pin lockrings and T-5 hypereutectic construction. Can be used with either press fit or floating wrist pins (lockrings included).

Set of 8 for Chevy 350 c.i. (4.000" bore x 3.48" stroke). Does not include piston ring set. Use 5/64", 5/64", 3/16" piston rings (Ring Style A).

KB Claimer Piston Chart (GIF)

Ring Style Chart (GIF)

Item Details

C/R 58cc=14.9, 64cc=13.5, C/R 76cc=11.3
Piston/Pin Weight: 778 g
Rod Length: 5.7"
Chevy 350 Plasma Moly Rings Style A, .030 Over Bore
(Part #9159903-030)


Speedway premium Plasma Moly piston rings work with either gas or alcohol fuels, handle 8000+ rpm, and up to 14:1 compression.

Ring Style Chart (GIF)

Style A Moly Chevy 350 Piston Rings, 030 Over
(Part #9152510-030)


Speedway standard moly piston rings work with either gas or alcohol fuels, handle 8000+ rpm, and up to 14:1 compression.

  • Top  5/64"
  • 2nd  5/64"
  • Oil  3/16"

Ring Style Chart (GIF)
