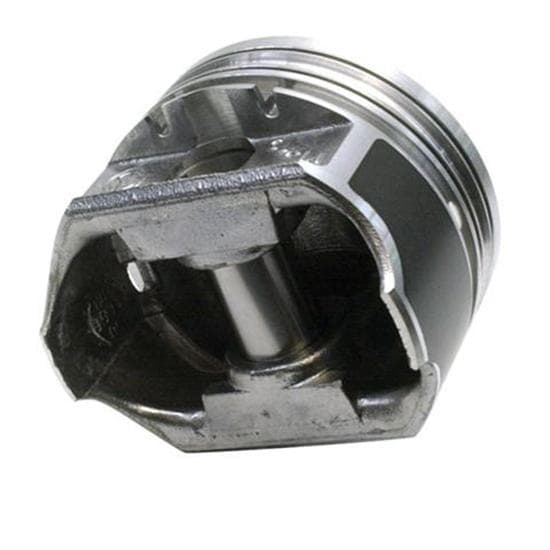

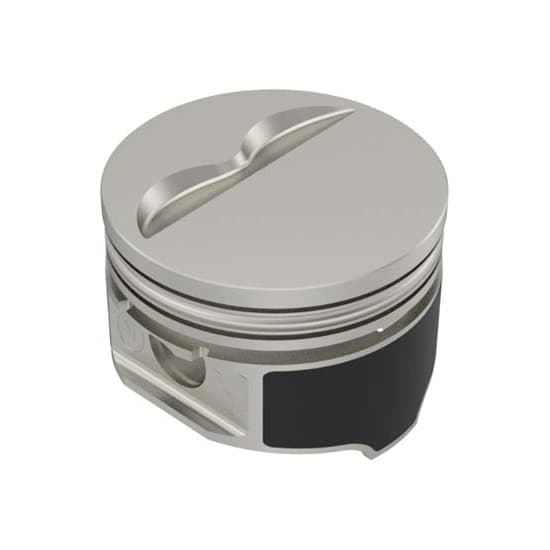

KB Claimer Chevy 350 Hypereutectic Pistons, Flat Top, 5.7 Rod

SAME DAY SHIPPING! Order within the next 3 hours 55 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Sold in Quantity:
Set
Piston Ring Style:
A
Connecting Rod Length:
5.700"
Piston Material:
Hypereutectic Aluminum
Piston Style:
Flat Top w/ 2 valve reliefs
Compression 58cc =:
10.7 : 1
Compression 64cc =:
10.4 : 1
Compression 76cc =:
-
Garage Sale:
No
Piston Diameter:
-
Stroke:
3.48
Wrist Pin Diameter:
.9272
Piston Weight:
614
KB Claimer Chevy 350 Hypereutectic Pistons, Flat Top, 5.7 Rod
KB Claimer Chevy 350 Hypereutectic Pistons, Flat Top, 5.7 Rod
KB Claimer Chevy 350 Hypereutectic Pistons, Flat Top, 5.7 Rod

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These Keith Black economy (also known as economy pistons) feature coated skirts, wrist pin lockrings and T-5 hypereutectic construction. Can be used with either press fit or floating wrist pins (lockrings included).

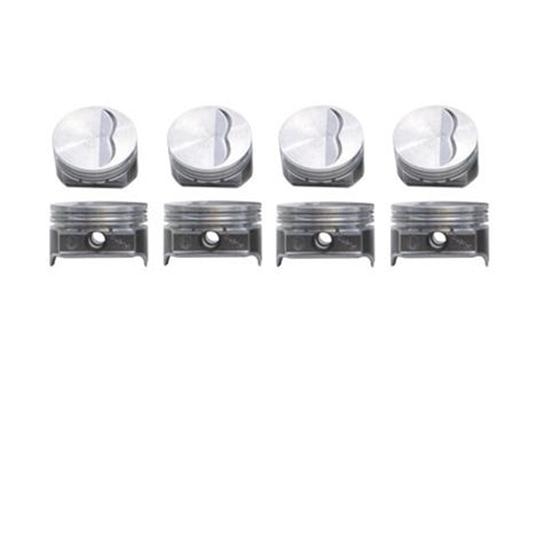

Set of 8 for Chevy 350 c.i. (4.000" bore x 3.48" stroke). Does not include piston ring set. Use 5/64", 5/64", 3/16" piston rings (Ring Style A).

KB Claimer Piston Chart (GIF)

Ring Style Chart (GIF)

Item Details

C/R 58cc=10.7, 64cc=10.4, 76cc=9.1
Piston/Pin Weight:614 g
Rod Length: 5.7"

Specs

  • Comp Height 5.7" Rod -  1.565
  • Comp Height 6.0" Rod -  1.265
  • Pin Diameter -  0.9272

Customer Reviews

Rated 4 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
0
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

ernie
Verified Purchaser
se montana

kb pistons

August 23, 2011
outstanding set
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

1 answers

Does this piston have any wrist pin offset? Wrist pin offset keeps piston slap noise to a minimum.

261unhemi
Great Falls, Montana
February 18, 2015

Does this piston have any wrist pin offset? Wrist pin offset keeps piston slap noise to a minimum.

Answers

February 18, 2015
EricM
No these pistons have centered wrist pins. Since a hypereutectic piston requires less piton to wall clearance than a stock cast piston there is less noise at a cold start and an offset pin is not as much of a concern.
1 answers

is this a standard bore size? if not do you have them

iowa
June 26, 2011

is this a standard bore size? if not do you have them

Answers

June 27, 2011
Jason
Sorry, we only offer this set of pistons in .030, .040 and .060 over size
1 answers

Is this piston a 2 valve relief.

New York
March 15, 2012

Is this piston a 2 valve relief.

Answers

March 16, 2012
Eric
Yes the 4749902 pistons have either a 2 valve relief or a single trough valve relief on only one side of the piston.
Page 1 of 1
