KB Claimer Chevy 350 Hypereutectic Pistons, Flat Top 4V, 5.7 Rod

SAME DAY SHIPPING! Order within the next 4 hours 51 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Sold in Quantity:
Set
Piston Diameter:
-
Stroke:
3.48
Wrist Pin Diameter:
.9272
Piston Ring Style:
A
Connecting Rod Length:
5.700"
Piston Weight:
630
Piston Style:
Flat Top w/ 4 valve reliefs
Piston Material:
-
Garage Sale:
No
Compression 58cc =:
10.9 : 1
Compression 64cc =:
10.2 : 1
Compression 76cc =:
9.0 : 1

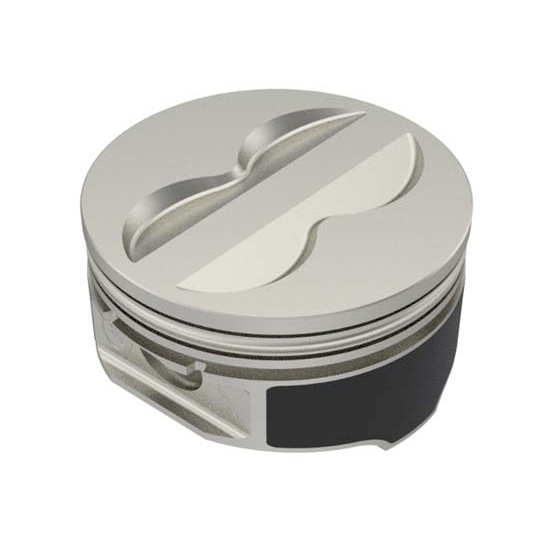

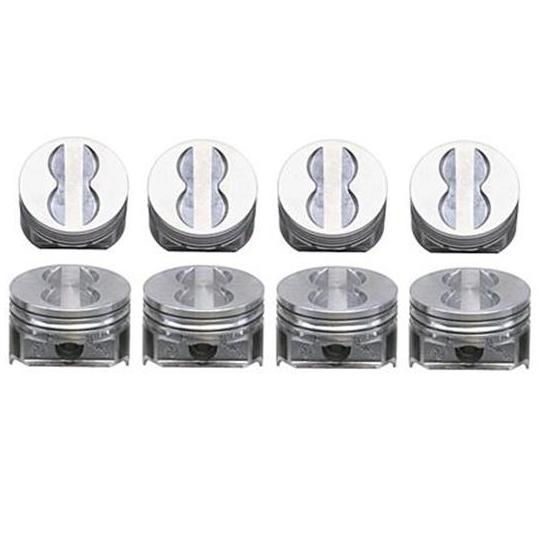

KB Claimer Chevy 350 Hypereutectic Pistons, Flat Top 4V, 5.7 Rod
KB Claimer Chevy 350 Hypereutectic Pistons, Flat Top 4V, 5.7 Rod
KB Claimer Chevy 350 Hypereutectic Pistons, Flat Top 4V, 5.7 Rod

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These Keith Black economy (also known as economy pistons) feature coated skirts, wrist pin lockrings and T-5 hypereutectic construction. Can be used with either press fit or floating wrist pins (lockrings included).

Set of 8 for Chevy 350 c.i. (4.000" bore x 3.48" stroke). Does not include piston ring set. Use 5/64", 5/64", 3/16" piston rings (Ring Style A).

KB Claimer Piston Chart (GIF)

Ring Style Chart (GIF)

Specs

  • Comp Height 5.7" Rod -  1.565
  • Comp Height 6.0" Rod -  1.265
  • Pin Diameter -  0.9272

Item Details

C/R 58cc=10.9, 64cc=10.2, 76cc=9.0
Piston/Pin Weight: 630 g
Rod Length: 5.7"

Customer Reviews

This product has no reviews.

Product Q&A

2 questions : 2 answers

1 answers

will these work with alcohol

eddie777
pa
August 27, 2014

will these work with alcohol

Answers

August 27, 2014
EricM
Yes these pistons can be used with alcohol fuel. Keep in mind these are a hypereutectic material and for high horsepower racing applications we highly recommend forged pistons.
1 answers

Are these pistons sold as a set such that for one engine i only need to order a quantity of one rather than eight (assuming an 8 cylinder engine)?

March 11, 2012

Are these pistons sold as a set such that for one engine i only need to order a quantity of one rather than eight (assuming an 8 cylinder engine)?

Answers

March 13, 2012
Eric
Yes these are sold as a set of 8 pistons to complete one engine.
