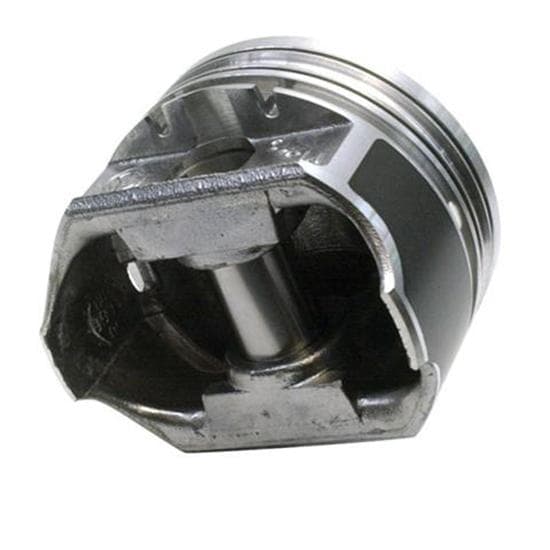

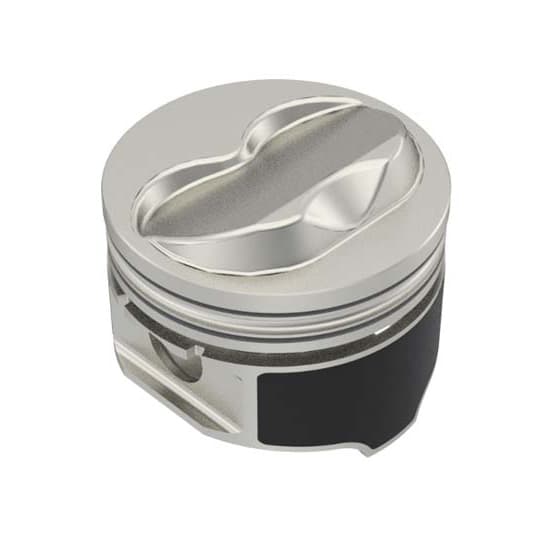

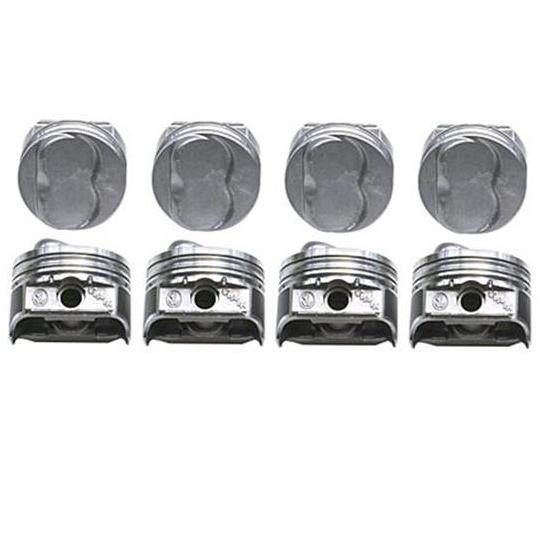

KB Claimer Chevy 350 Hypereutectic Pistons, .465 Dome, 5.7 Rod

Free Shipping Free Shipping
Specs
Sold in Quantity:
Set
Stroke:
3.48
Wrist Pin Diameter:
.9272
Piston Ring Style:
A
Connecting Rod Length:
5.700"
Piston Weight:
778
Piston Style:
Dome
Dome Height:
.465
Piston Material:
Hypereutectic Aluminum
Garage Sale:
No
Compression 58cc =:
14.9 : 1
Compression 64cc =:
13.5 : 1
Compression 76cc =:
11.3 : 1
KB Claimer Chevy 350 Hypereutectic Pistons, .465 Dome, 5.7 Rod
KB Claimer Chevy 350 Hypereutectic Pistons, .465 Dome, 5.7 Rod
KB Claimer Chevy 350 Hypereutectic Pistons, .465 Dome, 5.7 Rod

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These Keith Black economy (also known as economy pistons) feature coated skirts, wrist pin lockrings and T-5 hypereutectic construction. Can be used with either press fit or floating wrist pins (lockrings included).

Set of 8 for Chevy 350 c.i. (4.000" bore x 3.48" stroke). Does not include piston ring set. Use 5/64", 5/64", 3/16" piston rings (Ring Style A).

KB Claimer Piston Chart (GIF)

Ring Style Chart (GIF)

Specs

  • Comp Height 5.7" Rod -  1.565
  • Comp Height 6.0" Rod -  1.265
  • Pin Diameter -  0.9272

Item Details

C/R 58cc=14.9, 64cc=13.5, C/R 76cc=11.3
Piston/Pin Weight: 778 g
Rod Length: 5.7"

Customer Reviews

Rated 5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Chevymudtruck
Verified Purchaser
Newport News

great

September 24, 2011
Love these pistons, got the motor built runs great sound great, plenty of power
Pros:
  • Huge dome
  • Great construction
  • Solid feeling piston
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Chevymudtruck
Verified Purchaser
Newport News

great

September 24, 2011
Love these pistons, got the motor built runs great sound great, plenty of power
Pros:
  • Great construction
  • Huge dome
  • Solid feeling piston
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 1 answers

1 answers

can this piston be used with a 6 inc rod i am building a 350 block with an 3.75 stroke crank and 6.0 rod with a piston 4.030 and 13 plus compression. will this piston work. K&B 4749903.030 ??

novanateter
San Diego, CA, USA
November 09, 2014

can this piston be used with a 6 inc rod i am building a 350 block with an 3.75 stroke crank and 6.0 rod with a piston 4.030 and 13 plus compression. will this piston work. K&B 4749903.030 ??

Answers

November 10, 2014
EricM
No this will not work with a 6" rod. You will need a piston set that is correct for that rod length such as 474113, 474732, or 50325011.
