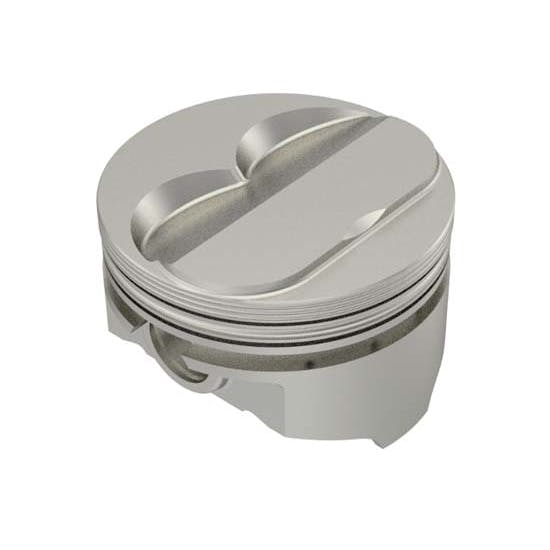

KB Chevy 350 Hypereutectic Pistons, .150 Dome, 6.0 Rod

SAME DAY SHIPPING!

Specs
Sold in Quantity:
Set
Piston Diameter:
-
Stroke:
-
Wrist Pin Diameter:
.9272
Piston Ring Style:
C
Connecting Rod Length:
6.000"
Piston Weight:
485
Wrist Pin Weight:
145
Piston Style:
Dome
Dome Height:
.150
Piston Material:
Hypereutectic Aluminum
Garage Sale:
No

Share by Email

From
To

Click image to enlarge

X

Details

Reviews

Q & A

What's in the Box

Keith Black Hyperutectic pistons are favored for their improved power and reduced scuffing. The unique design & manufacturing processes combine to produce a rigid piston, which will rock less in the bore improving ring seal. These T-5 heat treated pistons also offer reduced thermal expansion, which allows you to run tighter clearances and allows the piston rings to seal better and minimize blow-by.

  • 390 Hypereutectic alloy
  • Fully machined crowns and valve reliefs
  • Drilled oil drain backs
  • Full floating wrist pins
  • Triple wound spiral locks
  • Reflective alloy allows 2% power increase
  • Quench dome technology minimizes deterioration
  • Zero deck quench designs
  • Lightweight wrist pins

For S/B Chevy 350 c.i. (4.000" bore x 3.48" stroke).

Ring Style Chart (GIF)

474-113 Instructions (PDF)

Specs

  • Comp Height 5.7" Rod -  1.561
  • Comp Height 6.0" Rod -  1.261
  • Pin Diameter -  0.9272

Item Details

C/R 58cc=12.5, 64cc=11.5, 76cc=10.0
Piston/Pin Weight: 485 g
Rod Length: 6.0", Ring Style: C
