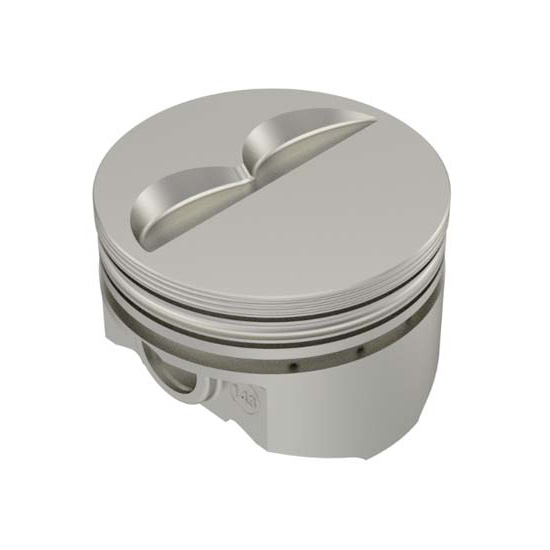

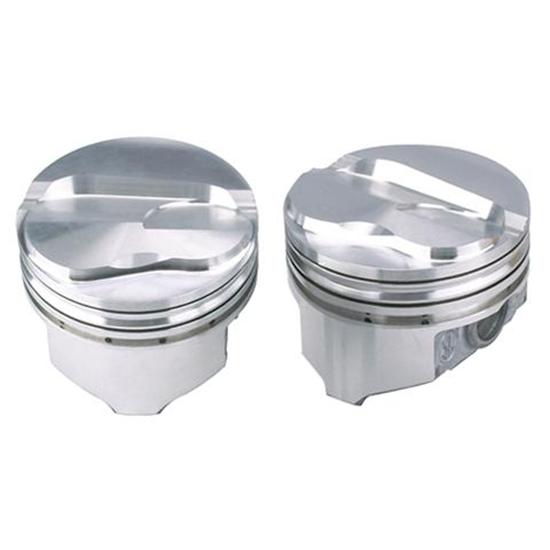

KB Chevy 305 Hypereutectic Pistons, Flat Top, 5.7 Rod

SAME DAY SHIPPING! Order within the next 14 hours 20 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Sold in Quantity:
Set
Piston Diameter:
-
Stroke:
3.48
Wrist Pin Diameter:
.9272
Piston Ring Style:
A
Connecting Rod Length:
5.700"
Piston Weight:
470
Wrist Pin Weight:
145
Piston Style:
Flat Top w/ 2 valve reliefs
Piston Material:
Hypereutectic Aluminum
Garage Sale:
No
Compression 58cc =:
10.0 : 1
Compression 64cc =:
9.3 : 1
Compression 76cc =:
8.2 : 1
KB Chevy 305 Hypereutectic Pistons, Flat Top, 5.7 Rod

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Keith Black Hypereutectic pistons are favored for their improved power and reduced scuffing. The unique design & manufacturing processes combine to produce a rigid piston, which will rock less in the bore improving ring seal. These T-5 heat treated pistons also offer reduced thermal expansion, which allows you to run tighter clearances and allows the piston rings to seal better and minimize blow-by.

For S/B Chevy 305 c.i. (3.736" bore x 3.48" stroke).

  • 390 Hypereutectic alloy
  • Fully machined crowns and valve reliefs
  • Drilled oil drain backs
  • Full floating wrist pins
  • Triple wound spiral locks
  • Reflective alloy allows 2% power increase
  • Quench dome technology minimizes deterioration
  • Zero deck quench designs
  • Lightweight wrist pins

Ring Style Chart (GIF)

474-143 Instructions (PDF)

Item Details

C/R 58cc=10.0, 64cc=9.3, 76cc=8.2
Piston/Pin Weight: 615 g
Rod Length: 5.7", Ring Style: A

Specs

  • Comp Height 5.7" Rod -  1.561
  • Comp Height 6.0" Rod -  1.261
  • Pin Diameter -  0.9272

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

does Item #: 474143 come with the C clips for the floating wrist pin?

matt
staten island ny
December 17, 2011

does Item #: 474143 come with the C clips for the floating wrist pin?

Answers

December 19, 2011
Jason
Yes, these come with lock rings
