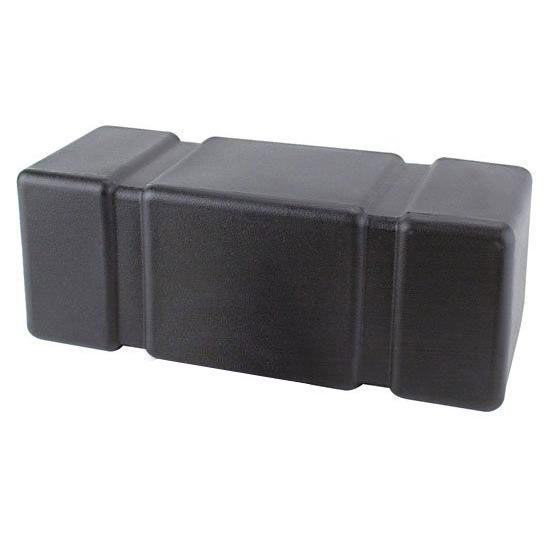

JAZ Products 892-010-01 Street Rod Fuel Cell, 10 Gallon

Specs
Sold in Quantity:
Each
Color:
Black
Material Type:
Polyethylene
MFG. Part #:
892-010-01
Safety Foam Included:
No
Pickup Tube Included:
No
Overall Height:
9.00
Overall Width:
12.00
Overall Length:
24.00
Capacity:
10.00
JAZ Products 892-010-01 Street Rod Fuel Cell, 10 Gallon

Click image to enlarge

Details

Reviews (4)

Q & A (10)

What's in the Box

Info

Seamless, one-piece, polyethylene fuel cell. Install your own fittings. Fuel cell has one 3/8" hole pre-drilled due to the injection mold process (located in the center of the 9" x 24" side).

Item Details

24" long, 12" wide, 9" deep

Notes

Tech Tip: Carefully determine the size of fuel cell needed. Depending on the capacity, a full fuel cell will generally weigh between 100 and 200 lbs. Buy the optimum size fuel cell to best accommodate weight bias and fuel consumption.

Customer Reviews

Rated 4 out of 5 by 4 reviewers.
RATING BREAKDOWN
4 reviews
5 Stars
2
4 Stars
1
3 Stars
0
2 Stars
1
1 Star
0
RECOMMEND THIS PRODUCT:

T&L
Verified Purchaser
St. Paul, MN

reasonable and useful

January 06, 2016
good size the hole in the side is not the best place to be but workable. Will buy again for many applications.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Hot Rod
Verified Purchaser
Jacksonville Florida

I would buy this product again

October 05, 2011
fuel cell fit great in the back of 1930 model A.The cell was easy to mount and install filler neck.
Pros:
  • Easy To Install
  • Durable
  • Lightweight
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Jim
Verified Purchaser
Ottawa il

i would buy again

October 08, 2010
quality is good but be prepared to do some work on fittings and filler spout. Have to make your own hold down straps.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Mini Formula Indy
Cleveland OH

This is a great value

March 13, 2010
On our custom builds, this tank is a great value. Run it any direction you want, cut your own holes and you're in business.
Pros:
  • Thick and well built
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

10 questions : 11 answers

1 answers

how to install the fuel cap , bolts up or down, how to vent it, can i use your rollover vent as a vent , and pipe it out side, battery box is right next to tank.

Bussie
Longmont, Co.
March 10, 2012

how to install the fuel cap , bolts up or down, how to vent it, can i use your rollover vent as a vent , and pipe it out side, battery box is right next to tank.

Answers

March 12, 2012
Eric
When installing the cap the head of the bolts will be inside the tank and the nuts on the outside of the tank. For venting we recommend a rollover vent like our part number 458364. You would then want to route the hose to a point where fumes will not be a problem.
1 answers

On a 27 t bucket where would you recommend mounting this fuel cell or is there another I could use

February 18, 2012

On a 27 t bucket where would you recommend mounting this fuel cell or is there another I could use

Answers

February 21, 2012
John
Part number 91076050 Customers normally mount the fuel cells in the small pickup bed behind the T bucket body. These cells are offered in different dimensions and capacities to meet customer needs and we also offer the aluminum fuel tanks under numbers 715750 and 715752.
1 answers

It was mentioned that the hole was drilled "in the side, in the center". Which side? For instance the 16 gallon tank is 25" long 17" wide 9" deep On which side is it drilled?

July 15, 2011

It was mentioned that the hole was drilled "in the side, in the center". Which side? For instance the 16 gallon tank is 25" long 17" wide 9" deep On which side is it drilled?

Answers

July 18, 2011
QC
There is only the one 3/8" injection mold hole. It is located right in the center of the 17" wide face of the tank.
1 answers

if I mount this tank below deck what would I use for a filler?

dopey
kenn wa
July 04, 2011

if I mount this tank below deck what would I use for a filler?

Answers

July 06, 2011
John
For remote fill there are several options. For a fender fill type kit you may want to check out 458359 in conjunction with 458357. For vertical mount you could use 91676550 and fill cap number 91012521 or 6179040. The last two numbers are fill caps and will require a reducer hose or using one hose inside the other as a spacer for a tight seal when making the connection. Or you could use a flush mount fill neck such as 91076510 along with one of our billet fuel doors for a custom in trunk or bed application.
1 answers

does this come with a cap or do i need to buy the red assembly

May 08, 2011

does this come with a cap or do i need to buy the red assembly

Answers

May 14, 2011
Shane
This fuel cell does not come with the cap, a part number of 91076510 (Aircraft style cap and neck) would be a cap suited for the fuel cell.
1 answers

Where is the 3/8 pre-drilled hole at?

JLC
Pace, FL
March 10, 2011

Where is the 3/8 pre-drilled hole at?

Answers

March 15, 2011
Tech Support
The pre-drilled 3/8" hole in this unit is in the side in the center.
2 answers

what is involved in installing fittings? do you thread in to the tank it's self or ?

Fort Collins, CO
February 24, 2011

what is involved in installing fittings? do you thread in to the tank it's self or ?

Answers

May 04, 2011
FreterBuilt
Depending on how thick the tank is, that might work but the best way to do it is to use a bulkhead fitting with sealer capable of handing what ever type of fuel your going to run
March 01, 2011
Jason
It's not recommended to try and thread. The best way is to mount fittings from top using sealing washers with bulk head type fittings.
1 answers

How would I go about plugging the hole in the 9x24 side? Is there enough room to mount a remote filler on the top left between the mounting strap and the side of the cell? Also are the dimensions of the cell rounded up or rounded down (as in it actually measures 23 15/16 but they round up to 24 or its actually 24 1/8 and they round down to 24)?

Rob
Sioux Falls, SD
April 25, 2015

How would I go about plugging the hole in the 9x24 side? Is there enough room to mount a remote filler on the top left between the mounting strap and the side of the cell? Also are the dimensions of the cell rounded up or rounded down (as in it actually measures 23 15/16 but they round up to 24 or its actually 24 1/8 and they round down to 24)?

Answers

April 27, 2015
Eric
Expert
The hole can be plugged off with a plug such as 61760181 along with nut 61761881 and a sealing washer 6179061. You should be able to mount the filler in the corner between the strap mount and the edge of the tank as long as the filler is not overly large. The dimensions of this tank are actual measurements. All measurements have a tolerance range of +/- 1/16"
1 answers

I purchase this tank along with the Classic fuel sending unit. How who you suggest mounting the sending unit and getting a good seal. I know I have to cut a hole but method of attachment & sealing elude me.

Michael
North Texas
September 11, 2015

I purchase this tank along with the Classic fuel sending unit. How who you suggest mounting the sending unit and getting a good seal. I know I have to cut a hole but method of attachment & sealing elude me.

Answers

September 14, 2015
Wayne
Expert
To install the fuel gauge cut the hole in your chosen location, then mark the location of the screw holes and drill and tap the holes. Install the gauge with the gasket between the gauge unit and the tank. If you feel that there needs to be a more substantial method of attachment, you can fabricate a plate to install on the inside of the tank. Just make a metal circle drill and tap holes into it as corresponds to the gauge unit. Cut a 1/4" wide gap in the circle with a hacksaw, then fish it into the tank being careful not to drop it into the tank. Once the ring is inside you can carefully fasten the tank unit into place. I know this is awkward, however it can be done. If you don't wish to fabricate a ring for the inside we do have tank units available (such as Pt # 45811240) that have a ring included. There are several available for different depth of tanks. Be sure that you pick one that will be about 1/2" from the bottom of the tank if you choose to do this. You will still have to split the ring with a hacksaw.
1 answers

I want to do a fill tube so I can fill it through a hole in my trunk. Do you have a fill tube that extends about 6 inches up? Also do you have the connection for the fuel line? Can you pre drill the tank? Thanks

Big Mark
December 26, 2015

I want to do a fill tube so I can fill it through a hole in my trunk. Do you have a fill tube that extends about 6 inches up? Also do you have the connection for the fuel line? Can you pre drill the tank? Thanks

Answers

December 31, 2015
Eric
Expert
We offer a filler connection 91676550 which you will need to install into the tank in the proper spot for your installation. Also we offer filler hose 395201 as well as fuel door 91090103. Sorry we do not offer installation of these items. You will need to install the filler neck, fuel pickup tube, vent, etc. into this blank fuel cell.
