JAZ Products 270-008-NF Steel Can Fuel Cell, 8 Gallon

Free Shipping Free Shipping
Specs
Material Type:
Steel
Color:
Red
Sold in Quantity:
Each
Finish:
Powder Coated
Fuel Cell Cap Style:
D-ring Bail Handle
Outlet Fitting:
-8 AN
MFG. Part #:
270-008-NF
Return Fitting:
-8 AN
Safety Foam Included:
No
Overall Height:
8.38
Overall Width:
15.50
Overall Length:
20.63
Capacity:
8.00

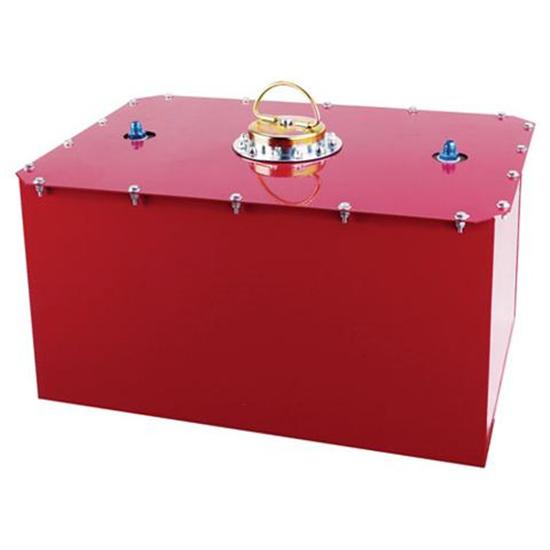

JAZ Products 270-008-NF Steel Can Fuel Cell, 8 Gallon

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

The 20 gauge steel can encloses a tough cross-link polyethylene cell. Includes fuel cell, steel can, IMCA required tip-over valve, and 4" diameter twist-on cap. Has a -8 AN fuel line hookup and return vent. Safety foam sold separately.

  • Seamless cross-linked polyethylene inner shell
  • 20 gauge welded steel container powder coated red
  • D-Ring bail handle cap assembly
  • Anodized -8 AN fuel pickup
  • Anodized -8 AN tip-over valve vent
  • Pickup hose routed to right rear corner

Note: To meet the IMCA Sport Compact rules regarding the 8 gallon fuel cells, fuel tank flapper valve 458-315 must be purchased and used in conjunction with the fuel cell shown here. Or purchase an IMCA approved cell with a flapper valve already installed.

Item Details

20-5/8" Long, 15-1/2" Wide, 8-3/8" Deep
26 lbs.

Notes

  1. Carefully determine the size of fuel cell needed. Depending on the capacity, a full fuel cell will generally weigh between 100 and 200 lbs. Buy the optimum size fuel cell to best accommodate weight bias and fuel consumption.
  2. The fuel pickup comes in from the top center of the cell and has a hose attached to it that hangs down and rests against the bottom of the cell. It can be rotated if needed, depending on what direction you are planning to install the cell in your specific application.
  3. These fuel tanks have no certification tags. They are approved for most racing where a bladder is not required.
  4. The top lip sticks out 3/4" further on each side of the fuel cell.

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

SprintPusher
Verified Purchaser
Arkansas

Jaz Steel can fuel cell- great price

March 12, 2011
Hard to beat the Jaz fuel cells for the price. Shopped around a lot and as usual Speedway had the product at the best price. [...]
Pros:
  • Durable
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 2 answers

1 answers

What are the dimensions of the fuel cell

Butch Poppa
white city,ore.
February 25, 2012

What are the dimensions of the fuel cell

Answers

February 27, 2012
Jason
This cell is 20-5/8" long by 15-1/2" wide by 8-3/8" deep
1 answers

Does this tank come with a sending unit?

March 12, 2012

Does this tank come with a sending unit?

Answers

March 13, 2012
Eric
No it does not have a fuel level gauge sending unit. We have many different fuel sending units which are sold separately.
Page 1 of 1
