JAZ Products 270-122-NF 22 Gallon Steel Can Fuel Cell

SAME DAY SHIPPING! Order within the next 4 hours 16 minutes and receive same day shipping

Specs
Material Type:
Steel
Overall Height:
10.50
Overall Width:
18.75
Overall Length:
34.50
Color:
Red
Sold in Quantity:
Each
Finish:
Powder Coated
Outlet Fitting:
-8 AN
Capacity:
22.00
MFG. Part #:
270-122-NF
Return Fitting:
-8 AN
Safety Foam Included:
No
Fuel Cell Cap Style:
D-ring Bail Handle

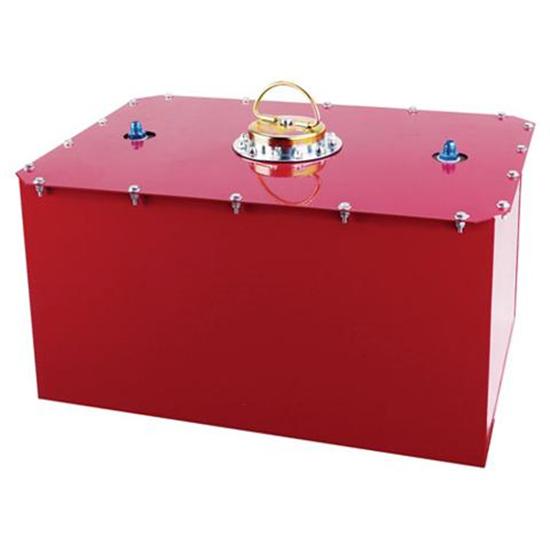

JAZ Products 270-122-NF 22 Gallon Steel Can Fuel Cell
JAZ Products 270-122-NF 22 Gallon Steel Can Fuel Cell

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

The 20 gauge steel can encloses a tough cross-link polyethylene cell. Includes fuel cell, steel can, IMCA required tip-over valve, and 4" diameter twist-on cap. Has a -8 AN fuel line hookup and return vent. Safety foam sold separately.

  • Seamless cross-linked polyethylene inner shell
  • 20 gauge welded steel container powder coated red
  • D-Ring bail handle cap assembly
  • Anodized -8 AN fuel pickup
  • Anodized -8 AN tip-over valve vent
  • Pickup hose routed to right rear corner

Notes

  1. Carefully determine the size of fuel cell needed. Depending on the capacity, a full fuel cell will generally weigh between 100 and 200 lbs. Buy the optimum size fuel cell to best accommodate weight bias and fuel consumption.
  2. The fuel pickup comes in from the top center of the cell and has a hose attached to it that hangs down and rests against the bottom of the cell. It can be rotated if needed, depending on what direction you are planning to install the cell in your specific application.
  3. These fuel tanks have no certification tags. They are approved for most racing where a bladder is not required.
  4. The top lip sticks out 3/4" further on each side of the fuel cell.

Item Details

34-1/2" Long, 18-3/4" Wide, 10-1/2" Deep
46.4 lbs.
