JAZ Products 345-250-03 45 Degree Fast-Fill Fuel Cell Valve

Price:$85.99
345-250-03 - JAZ 45 Degree Fast-Fill Valve
Price:
$85.99
EA
In Stock
Item #:
458357

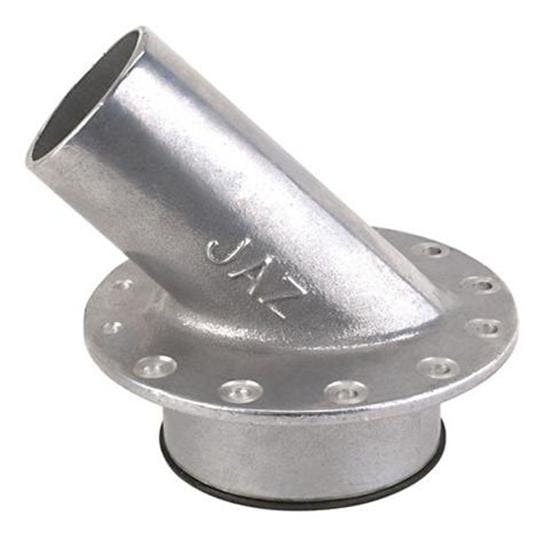

JAZ Products 345-250-03 45 Degree Fast-Fill Fuel Cell Valve
Click image to enlarge Click image to enlarge
No video at this time.


Cast aluminum fill valve mounts on fuel cell. Has spring loaded flapper valve. Mounts with twelve bolts on a 5" circle. 6-1/2" outside diameter. 2-1/2" hose end.

Requires split nut ring 458-358 to install.

  • 2-½” O.D. hose neck
  • 5.372 or 5-3/8” centerline bolt circle for the 12 attaching bolts
  • Requires minimum or 4 1/8” opening for the valve
