JAZ Products 270-004-NF Steel Can Fuel Cell, 4 Gallon

Price:$154.99
270-004-NF - JAZ Steel Can Fuel Cell, 4 Gallon
Price:
$154.99
EA
In Stock
Item #:
45827004
Item Details:
13" Long, 11-1/8" Wide, 9-1/8" Deep
16.6 lbs.

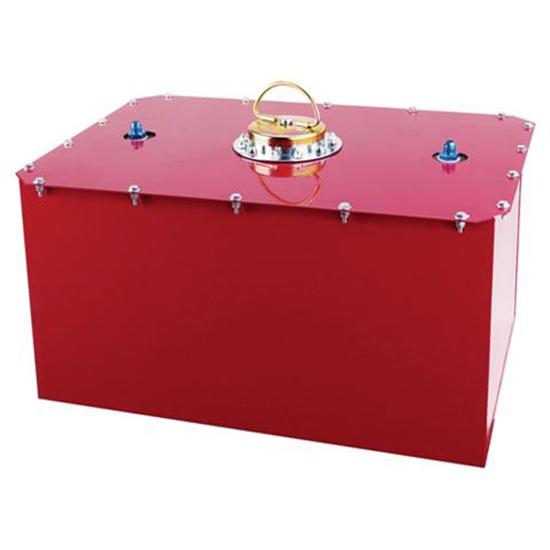

JAZ Products 270-004-NF Steel Can Fuel Cell, 4 Gallon
Click image to enlarge Click image to enlarge
No video at this time.


The 20 gauge steel can encloses a tough cross-link polyethylene cell. Includes fuel cell, steel can, IMCA required tip-over valve, and 4" diameter twist-on cap. Has a -8 AN fuel line hookup and return vent. Safety foam sold separately.

  • Seamless cross-linked polyethylene inner shell
  • 20 gauge welded steel container powder coated red
  • D-Ring bail handle cap assembly
  • Anodized -8 AN fuel pickup
  • Anodized -8 AN tip-over valve vent
  • Pickup hose routed to right rear corner
  1. Carefully determine the size of fuel cell needed. Depending on the capacity, a full fuel cell will generally weigh between 100 and 200 lbs. Buy the optimum size fuel cell to best accommodate weight bias and fuel consumption.
  2. The fuel pickup comes in from the top center of the cell and has a hose attached to it that hangs down and rests against the bottom of the cell. It can be rotated if needed, depending on what direction you are planning to install the cell in your specific application.
  3. These fuel tanks have no certification tags. They are approved for most racing where a bladder is not required.
  4. The top lip sticks out 3/4" further on each side of the fuel cell.
Email this page
Close [x]
You can send this product by email to a friend!
Enter the required information in the spaces provided below. They will receive an Email with the picture of this product and a link back to our site.
Your Name:
Your Email:
Friends Name:
Friends Email:
Print Page
Our Techs also Suggest the Following:
Jaz/Speedway Fuel Cell Flapper Valve
Price:
$24.99
EA
In Stock
Item #:
458315
You May Also Be Interested In...
  • JAZ Products 290-103-NF Polyethylene 3 Gallon Fuel Cell
    JAZ Products 290-103-NF Polyethylene 3 Gallon Fuel Cell
    (1 Rating)
    Price: $109.99
    More Info
    JAZ Products 290-103-NF Polyethylene 3 Gallon Fuel Cell
    x


                                                        This 3 gallon fuel cell has a -8 AN pickup with a -6 AN vent.  It is 10-1/2" tall and measures 12" x 7-1/2" at the bottom, and 10-3/4" x 5-3/4" at the top.
  • JAZ Products 250-008-NF Bottom Sump Fuel Cell, 8 Gallon
    JAZ Products 250-008-NF Bottom Sump Fuel Cell, 8 Gallon
    (1 Rating)
    Price: $109.99
    More Info
    JAZ Products 250-008-NF Bottom Sump Fuel Cell, 8 Gallon
    x


                                                        This bottom sump fuel cell is perfect for all race applications.  8 gallon capacity.  Flush mounted aerospace type filler neck.  Internal 2" sump with two AN 8 pick-up fittings.  An auxiliary AN 6 vent or return line is on the top.  Measures 20" long, 15" wide and 7-1/2" deep.
    Tech Tip: Carefully determine the size of fuel cell needed. Depending on the capacity, a full fuel cell will generally weigh between 100 and 200 lbs. Buy the optimum size fuel cell to best accommodate weight bias and fuel consumption.
  • JAZ Products 270-008-NF Steel Can Fuel Cell, 8 Gallon
    JAZ Products 270-008-NF Steel Can Fuel Cell, 8 Gallon
    (1 Rating)
    Price: $185.99
    More Info
    JAZ Products 270-008-NF Steel Can Fuel Cell, 8 Gallon
    x



    The 20 gauge steel can encloses a tough cross-link polyethylene cell. Includes fuel cell, steel can, IMCA required tip-over valve, and 4" diameter twist-on cap. Has a -8 AN fuel line hookup and return vent. Safety foam sold separately.
    • Seamless cross-linked polyethylene inner shell
    • 20 gauge welded steel container powder coated red
    • D-Ring bail handle cap assembly
    • Anodized -8 AN fuel pickup
    • Anodized -8 AN tip-over valve vent
    • Pickup hose routed to right rear corner
    Note: To meet the IMCA Sport Compact rules regarding the 8 gallon fuel cells, fuel tank flapper valve 458-315 must be purchased and used in conjunction with the fuel cell shown here. Or purchase an IMCA approved cell with a flapper valve already installed.
  • Safety Racing Fuel Cell Foam, 8 x 4 x 6 Inch
    Safety Racing Fuel Cell Foam, 8 x 4 x 6 Inch
    Price: $8.00
    Sale Price: $5.99
    25% off
    More Info
    Safety Racing Fuel Cell Foam, 8 x 4 x 6 Inch
    x



    Compatible with gasoline, E85, or alky fuels (not recommended for use with nitro-methane). This fuel cell safety foam keeps weight transfer/shift to a minimum, which provides you with more responsive and predictable handling. Can be cut and stacked as needed.
    • 8-12 gallon cells typically use 3-8 sticks
    • 16 gallon cells typically use 4-10 sticks
    • 22-32 gallon cells typically use 8-14 sticks
    Blocks are sold EACH.
  • Safety Racing Fuel Cell Foam, 14 x 4 x 6 Inch
    Safety Racing Fuel Cell Foam, 14 x 4 x 6 Inch
    (2 Ratings)
    Price: $10.00
    Sale Price: $7.99
    20% off
    More Info
    Safety Racing Fuel Cell Foam, 14 x 4 x 6 Inch
    x



    Compatible with gasoline, E85, or alky fuels (not recommended for use with nitro-methane). This fuel cell safety foam keeps weight transfer/shift to a minimum, which provides you with more responsive and predictable handling. Can be cut and stacked as needed.
    • 8-12 gallon cells typically use 3-8 sticks
    • 16 gallon cells typically use 4-10 sticks
    • 22-32 gallon cells typically use 8-14 sticks
    Blocks are sold EACH.
