JAZ Products 200-016-NF Polyethylene Fuel Cell, 16 Gallon

SAME DAY SHIPPING! Order within the next 14 hours 18 minutes and receive same day shipping

Specs
Material Type:
Polyethylene
Overall Height:
9.00
Overall Width:
17.00
Overall Length:
25.00
Color:
Black
Sold in Quantity:
Each
Outlet Fitting:
-8 AN
Capacity:
16.00
MFG. Part #:
200-016-NF
Return Fitting:
-8 AN
Safety Foam Included:
No
Pickup Tube Included:
Yes
Fuel Cell Cap Style:
D-ring Bail Handle

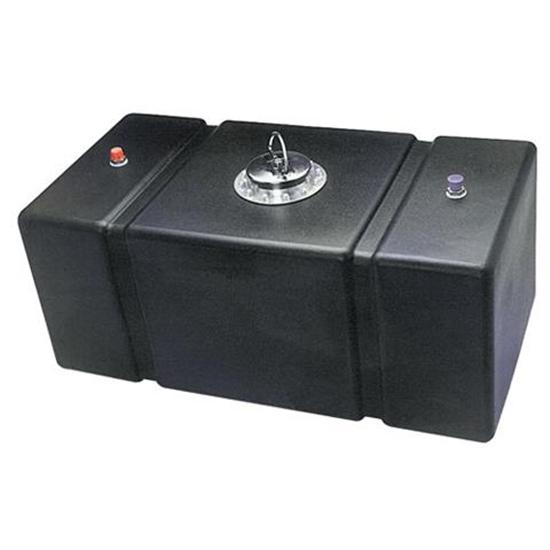

JAZ Products 200-016-NF Polyethylene Fuel Cell, 16 Gallon

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These polyethylene fuel cells are the best cells on the market! This 100% seamless polyethylene cell features one -8 AN pick-up fitting and one -8 AN vent/tip-over valve fitting. These fuel cells contain a pickup tube. All cells are NHRA, IHRA, SCORE, and DIRT approved.

  • Seamless cross-linked polyethylene outer shell
  • D-ring bail handle cap assembly
  • 360 degree mouting strap recesses
  • Does not include fuel cell safety foam

Notes

Tech Tip: Carefully determine the size of fuel cell needed. Depending on the capacity, a full fuel cell will generally weigh between 100 and 200 lbs. Buy the optimum size fuel cell to best accommodate weight bias and fuel consumption.

Item Details

25" Long, 17" Wide, 9" Deep

Customer Reviews

Rated 4.8 out of 5 by 4 reviewers.
RATING BREAKDOWN
4 reviews
5 Stars
3
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

PackardKelly
Idaho
Product Rating

excellent 16 gallon fuel cell

September 20, 2013
I bought this cell to replace my 1950 Packard's rusted out fuel tank. It was easy to install and has performed flawlessly. Now if I must run the dreaded ethanol, at least it won't rot the fuel tank. Thanks, Speedway for an easy and inexpensive solution! Kelly
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

sarge
Verified Purchaser
Bristol Vermont
Product Rating

Extremely well built

October 13, 2012
The fuel cell solved my problem for fuel storage like I never imagined.The product is so well made and easy to install.The only drawback was the inlet and outlet fittings which required adapting to stock type fuel lines. Otherwise the cell is excellent.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

roder1
Verified Purchaser
denver, co
Product Rating

Cell of a deal

December 17, 2011
easy installation, works great, durable
Pros:
  • User friendly
  • Lightweight
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

BR
Verified Purchaser
Tahlequah,OK
Product Rating

Great product for a bargin price!

December 07, 2010
Should be sold with An sending unit option.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

I have a72 chevy nova 2door and was wanting to kno if this if this tank would be a good one to put in the trunk.

1 answers
Third
Ms
December 03, 2013

I have a72 chevy nova 2door and was wanting to kno if this if this tank would be a good one to put in the trunk.

Answers

December 03, 2013
EricM
Yes this type of cell is installed in the trunk of cars quite often. You may want to consider the mounting straps 4581116 to help you get a start on mounting it.

Is this Fuel Cell street legal? Also, how do you accommodate a fuel sensor, pickup & return lines and vent? The application is for a street rod with and aftermarker EFI system.

1 answers
Thad
July 08, 2013

Is this Fuel Cell street legal? Also, how do you accommodate a fuel sensor, pickup & return lines and vent? The application is for a street rod with and aftermarker EFI system.

Answers

July 09, 2013
Jason
The 12 gallon polyethlene cell stems from the circle track market and is commonly used in hot rod applications but is not D.O.T. approved. Check your local state laws for legality of this cell. This fuel cell can accept an aftermarket sending unit for the fuel gauge such as number 665385B and it is up to the installer to cut the hole and attach as desired. We also have an installation kit that can first be glued or bonded to the tank and then the sender installed. If planning on running the foam sticks the arm style sender cannot be used and you would need to run the cylindrical sender number 4588240 as an example for aftermarket gauges requiring 33-240 ohm signal. The foam does not come installed in cell. To install foam the cap assembly will need to be removed.

Is this tank 9 tall or 17 tall? add says wide & deep.

1 answers
Only1Magnum
November 22, 2012

Is this tank 9 tall or 17 tall? add says wide & deep.

Answers

November 23, 2012
Jason
This cell is 25" long by 17" wide and 9" deep(height)
Page 1 of 1
