JAZ Products 345-250-03 45 Degree Fast-Fill Fuel Cell Valve

SAME DAY SHIPPING! Order within the next 10 hours 33 minutes and receive same day shipping

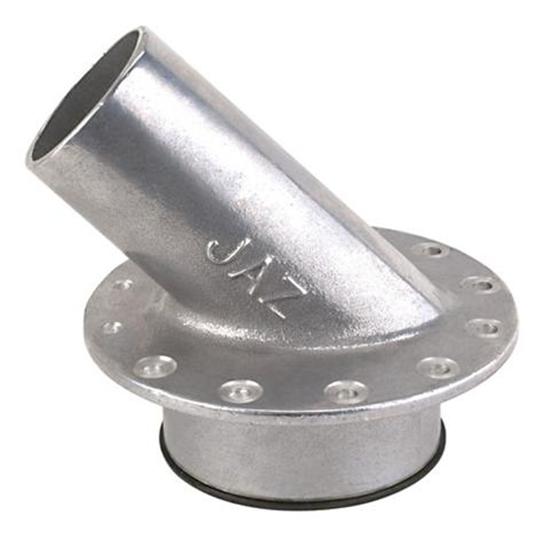

JAZ Products 345-250-03 45 Degree Fast-Fill Fuel Cell Valve

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Cast aluminum fill valve mounts on fuel cell. Has spring loaded flapper valve. Mounts with twelve bolts on a 5" circle. 6-1/2" outside diameter. 2-1/2" hose end.

Requires split nut ring 458-358 to install.

Specs

  • 2-½” O.D. hose neck
  • 5.372 or 5-3/8” centerline bolt circle for the 12 attaching bolts
  • Requires minimum or 4 1/8” opening for the valve

Customer Reviews

This product has no reviews.

Product Q&A

2 questions : 2 answers

1 answers

How tall is the neck?

51IHCGUY
January 20, 2014

How tall is the neck?

Answers

January 21, 2014
EricM
This fast fill neck is 4 7/16" tall from the mount flange to the top of the 45 degree filler. It will hang down inside the tank 2 1/4"
1 answers

Can this be used on the non-Jaz 6 bolt flanged poly cells? such as Part #458-108

GasserRick
Lawrence, KS
March 08, 2011

Can this be used on the non-Jaz 6 bolt flanged poly cells? such as Part #458-108

Answers

March 11, 2011
Jason
No, it is not a direct bolt on. Fast fill is a bigger od than tank, you would have to cut bigger hole in tank and re-drill bolt ring.
Page 1 of 1

You may also be interested in:

JAZ Products 300-000-20 Fender Mount Fuel Filler Kit
(Part #458359)


For remote filling of fuel cell. Kit contains a 12-bolt recessed fender fill assembly with vented cap (1/2 turn, twist & lock style). Fender filler flange measures 6-1/4" outside diameter.

Cap and base are made of galvanized steel. Fill and vent hose are clear polyethylene. Use with fast fill valve.

2 Inch Aluminum Remote Fuel Cell Filler Neck Flange Assembly
(Part #91676550)


These filler necks are manufactured from top-quality materials and are available in two sizes to best suit your application. You can count on these fuel cell filler necks to complete your performance fuel setup.

2 Inch Aluminum Remote Fuel Cell Filler Neck Flange Assembly

This flange bolts to your fuel cell to permit attachment of a 2" I.D. filler hose.

This fill tube comes off of the flange at a 90 degree angle.

  • O.D. of the flange is 4.88"
  • 6 mounting holes on a 4.36" bolt circle includes mount ring, bolts, and gasket
  • Filler neck is 2" O.D.
  • Aluminum construction

916-76550 (PDF)





1-1/2 Inch Aluminum Remote Fuel Cell Filler Neck Flange Assembly
(Part #91676549)


These filler necks are manufactured from top-quality materials and feature common hose size O.D. to best suit your application. You can count on these fuel cell filler necks to complete your performance fuel setup.

1-1/2 Inch Aluminum Remote Fuel Filler Neck Flange Assembly

  • O.D. of flange is 4.88"
  • 6 mounting holes on a 4.36" bolt circle
  • Filler neck is 1-1/2" O.D.
  • Includes mount ring, bolts and gasket

This flange bolts to your fuel cell to permit attachment of a 1-1/2" I.D. filler hose. Aluminum construction.

JAZ Products 315-030-03 Nut Ring for Jaz Fast-Fill Valve
(Part #458358)


Required split nut ring to install Jaz 45° Fast-Fill fuel cell valve.
