Intercomp SW777 Wireless Scale

Specs
Overall Height:
15.00
Overall Width:
15.00
Sold in Quantity:
Each
MFG. Part #:
SW777
Load Capacity:
6000
Case Included:
Yes
Notes
2-Year Warranty

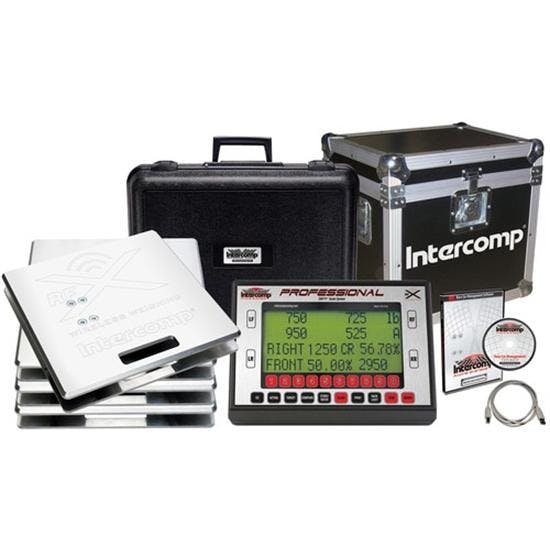

Intercomp SW777 Wireless Scale
Intercomp SW777 Wireless Scale

Click image to enlarge

Speeday Motors Logo
X
Intercomp SW777 Wireless Scale

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

The Intercomp SW777 Chassis Scale is loaded with features and will display setups to one hundredth of a percent.

  • Fully Integrated RFX Wireless Technology
  • Encryption Ensures Secure Wireless Communication
  • USB & RS232 Output
  • Certified to 0.1% Accuracy
  • Stores 100 Chassis Setups
  • Baseline Setup Recall
  • Center of Gravity Calculation
  • User Selectable Display Modes
  • Target Tune Feature
  • Giant 0.5" Display Characters
  • Backlit Display

Includes a FREE scale storage box! (part # 910-82100, included with the purchase of this scale system)

Specs

  • 1,500 lb (700 kg) Pad Capacity
  • 6,000 lb (2,800 kg) System Capacity
  • 15"x15"x2.5" (381x381x64mm) Wireless RFX Billet Pads
  • One-Touch Wireless Indicator with Case
  • Pad Storage Case
  • 6 ft. USB Cable
  • Race Car Management Software
  • AA Alkaline Batteries (included)
  • Has printer interface outputs
  • Displays to .01 lb.
  • 2-Year Warranty



Item Details

Includes FREE scale storage box

You may also be interested in:

Intercomp 170133 Scale Pad Leveler
                        Designed to fit any 15" scale with a 2.5 pad thickness. Enables the car to be rolled off the scale pad and back on with little effort. All aluminum construction.

(Set of 4 one piece roll-off levelers)
Intercomp 100342 Scale Ramps, Set of 4
                        Low profile ramp for 2.5/64 mm scale pads.
15" x 15"/380 x 380 mm lightweight aluminum design complements all scale systems.
DECO Laser Level for Scales
                        Never wonder if your scales are level again! Extra long leveling screws allow use with leveling pads. Includes laser, laser leveling platform and four laser gauges.

300-9000 Instructions (PDF)

300-9000 Hardware Instructions (PDF)

Storage Cart for Scales


This handy cart not only stores your scale pads, cables, display box and ramps, but also makes moving them around a snap!

Dimensions are 21" x 21" x 35". Assembly required.

Scale system is not included!

910-82104 Instructions (pdf)

Race Ramps RR-SCALE Scale Ramp Pads


Let's face it, aluminum scale pad ramps get beat up and tend to be hard to store. These high tech foam ramps weight less than 3 lbs., can take a beating and are easy to store anywhere. 12" wide, 14" long and 2-1/2" tall. Set of 4.



Intercomp 170250 iRaceweigh Module


iRaceWeigh™ Module for iPhone®, iPod® & iPad®

The iRaceWeigh™ Module communicates directly with your Intercomp RFX™ Wireless Scales or Intercomp Cabled Scales with RS232 Output on the Indicator.

  • View & Save Live Weights, then Export the Data to a Spreadsheet for Future Analysis
  • Email Saved Reports
  • Allows Direct Communication with Scales
  • Displays Weigh Screens on your iPhone®, iPod® or iPad®
  • Encryption Ensures Secure Wireless Communication

Screens Include:

  •     Front Total & Percent
  •     Rear Total & Percent
  •     Left Total & Percent
  •     Right Total & Percent
  •     Cross LF/RR Total & Percent
  •     Cross RF/LR Total & Percent
  •     Rear Bite

Get the FREE iRaceWeigh™ App from iTunes® by clicking HERE. (http://itunes.apple.com/us/app/iraceweigh/id427048138?mt=8)

*iPhone® not Included.
